1 Introduction
2
Meritor WABCO Maintenance Manual MM-0112 (Revised 07-05)

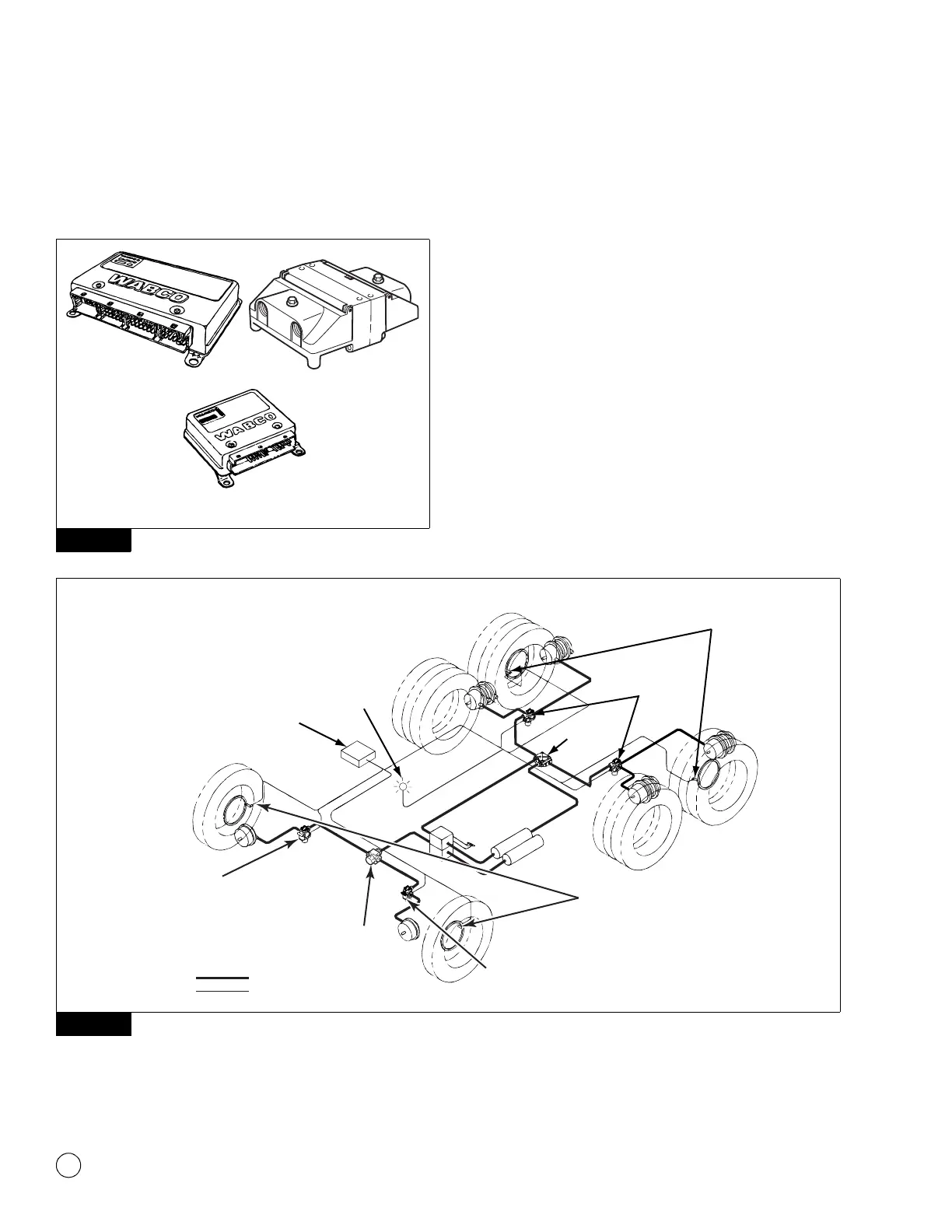

ABS Configuration
With the E Basic ECU, 4S/4M is the only configuration used.
Figure 1.3.
Figure 1.3
The ABS configuration is defined by the number of wheel-end
sensors and modulator valves. There are three common ABS
configurations used with E version ECUs.
4S/4M (4 wheel speed sensors, 4 modulator valves).
Figure 1.4.
6S/4M (6 wheel speed sensors, 4 modulator valves)
6S/6M (6 wheel speed sensors, 6 modulator valves)
Typical illustrations in this manual use the 4S/4M configuration as a
sample. Layouts for 4S/4M, 6S/4M and 6S/6M configurations are
included in Appendix I.
Figure 1.4
Figure 1.3
UNIVERSAL
ECU
FRAME-MOUNTED
ECU
BASIC
ECU
4003974a
Figure 1.4
1002004h
WHEEL SPEED
SENSORS
ABS
MODULATOR
VALVES
ABS
MODULATOR
VALVE
ABS
MODULATOR
VALVE
RELAY
VALVE
WHEEL SPEED
SENSORS
ECU
4S/4M CONFIGURATION — ABS ONLY
AIR LINES
ELECTRICAL LINES
LAMPS
QUICK
RELEASE
VALVE
