Chapter 7 Gated Operation with a PTG 103

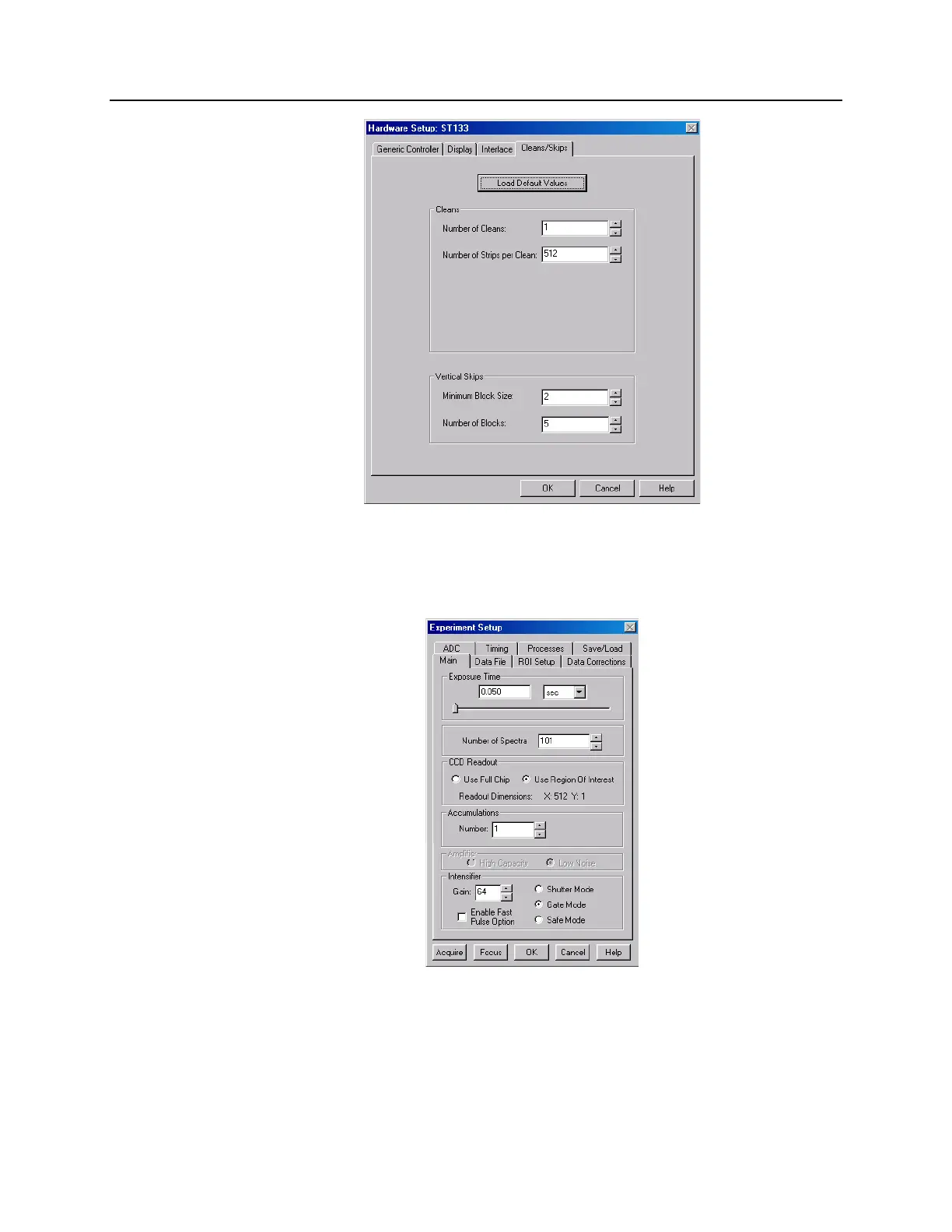

Figure 55. Cleans and Skips: Default Values Loaded
The sequence of operations is similar to the "Sequential" experiments. After focusing the
camera on the fluorescing sample, the camera is set in "Gate" mode and the appropriate
Gain is selected (Figure 56).
Figure 56. Experiment Setup: Gain Selected
Gate width and gate delay are set in such a way that the intensifier is gated ON during the
entire event (in this case the event is a 60 nsec fluorescence).
