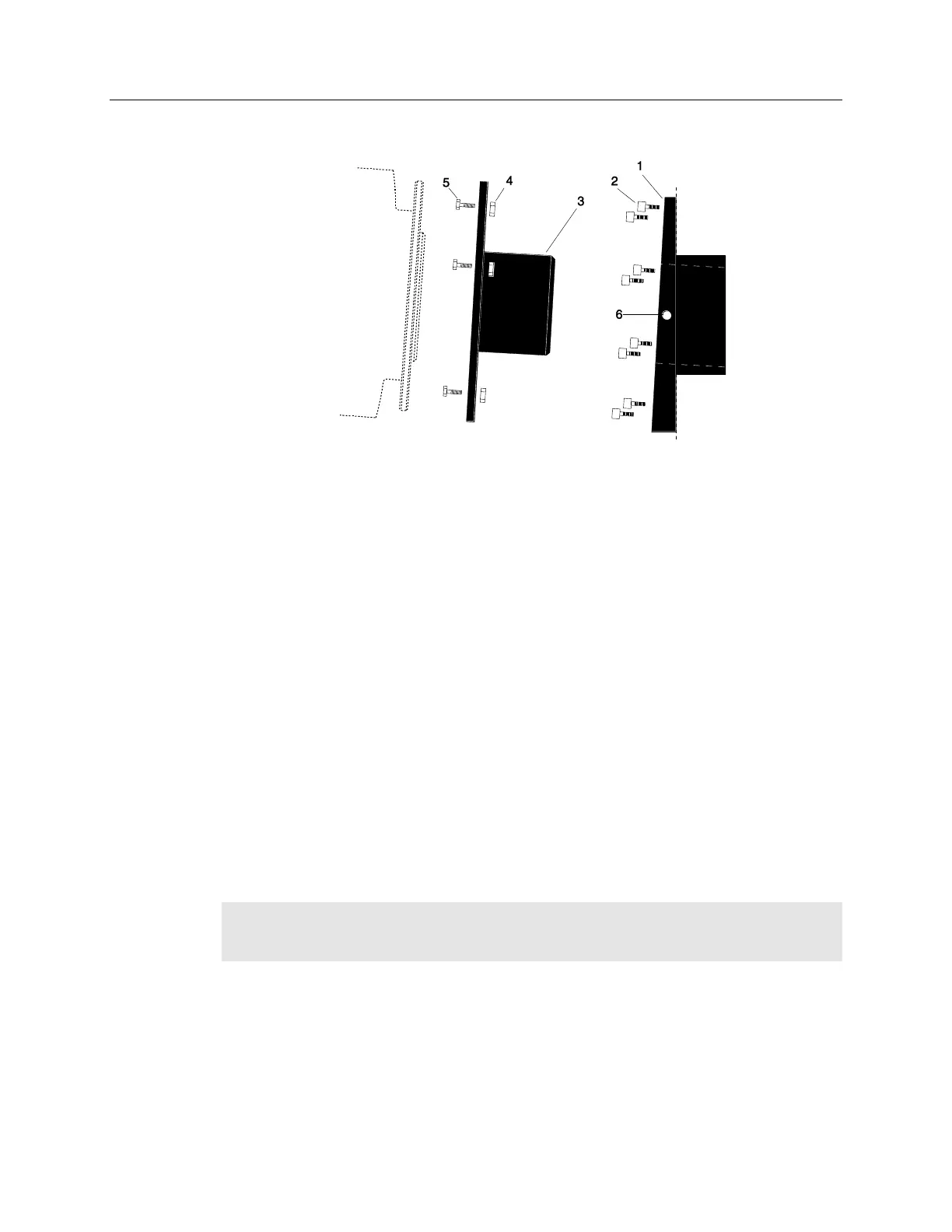

SPEX 500M
Qty P/N Description
1. 1 2517-0214 Adapter-Female, Spex 500M
2. 8 2826-0170 Screw, 1/4-20  0.5L, Low Socket Head Cap
3. 1 2518-0291 Adapter Male, Spex 500M
4. 3 2827-0010 10-32 Nut, Stainless Steel
5. 3 2826-0120 Screw, 10-32  1/2, Hex Head, Stainless Steel
6. 2 2826-0055 Set Screw 8-32  1/4, Allen Hex, Nylon Tip
Assembly Instructions
1. Attach part 1 to the spectrograph wall (dashed line in illustration) with the socket
head screws provided.
2. Leaving 1/4" of thread exposed, mount the three (3) hex head screws and nuts to
part 3.
3. Mount the adapter to the detector flange and rotate the adapter so the screw heads are
over the narrow end of the slots.
4. Tighten the screws.
5. Gently insert part 3 into part 1 and fasten with the setscrews.
Note: Adapter parts are machined to provide a tight fit. It is necessary to rotate the detector
back and forth when inserting into the spectrograph adapter. Do not force the two parts of the
adapter together, as they can be permanently damaged by excessive force.
