Princeton Instruments PI-MAX2 System - Figure 57. Repetitive Gating Setup: 100 Nsec Width, 10 Nsec Delay

104 PI-MAX/PI-MAX2 System Manual Version 5.F

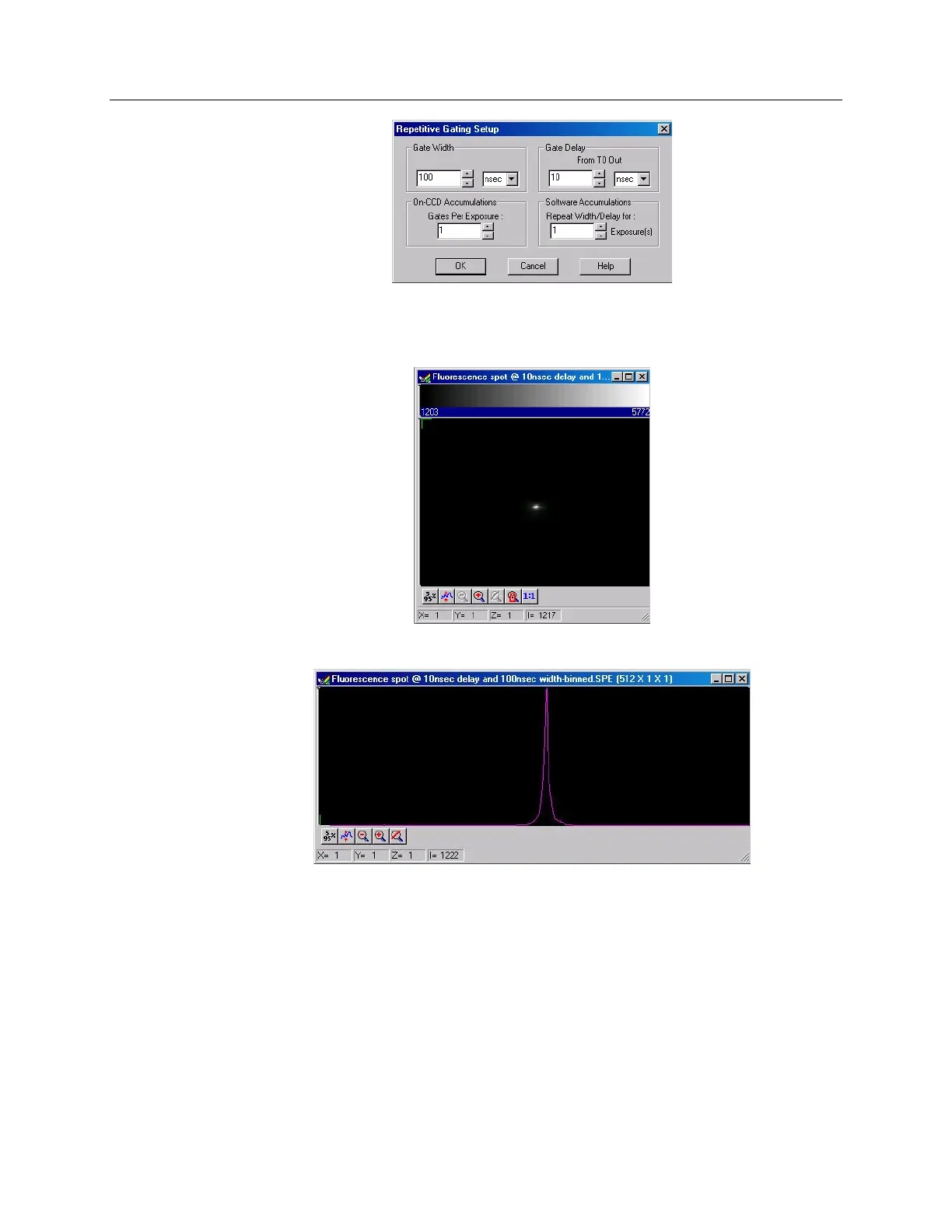

Figure 57. Repetitive Gating Setup: 100 nsec Width, 10 nsec Delay
Figure 58 shows the result of the experiment. Figure 59 shows the peak obtained by
binning, in the vertical direction, the entire region around the fluorescence spot.
Figure 58. Single Shot Result: Fluorescence Spot, 100 nsec Width, 10 nsec Delay
Figure 59. Single Shot Result: Fluorescence Spot, 100 ns Width, 10 ns Delay, Binned Vertically
