210 PI-MAX/PI-MAX2 System Manual Version 5.F
ISA HR 640

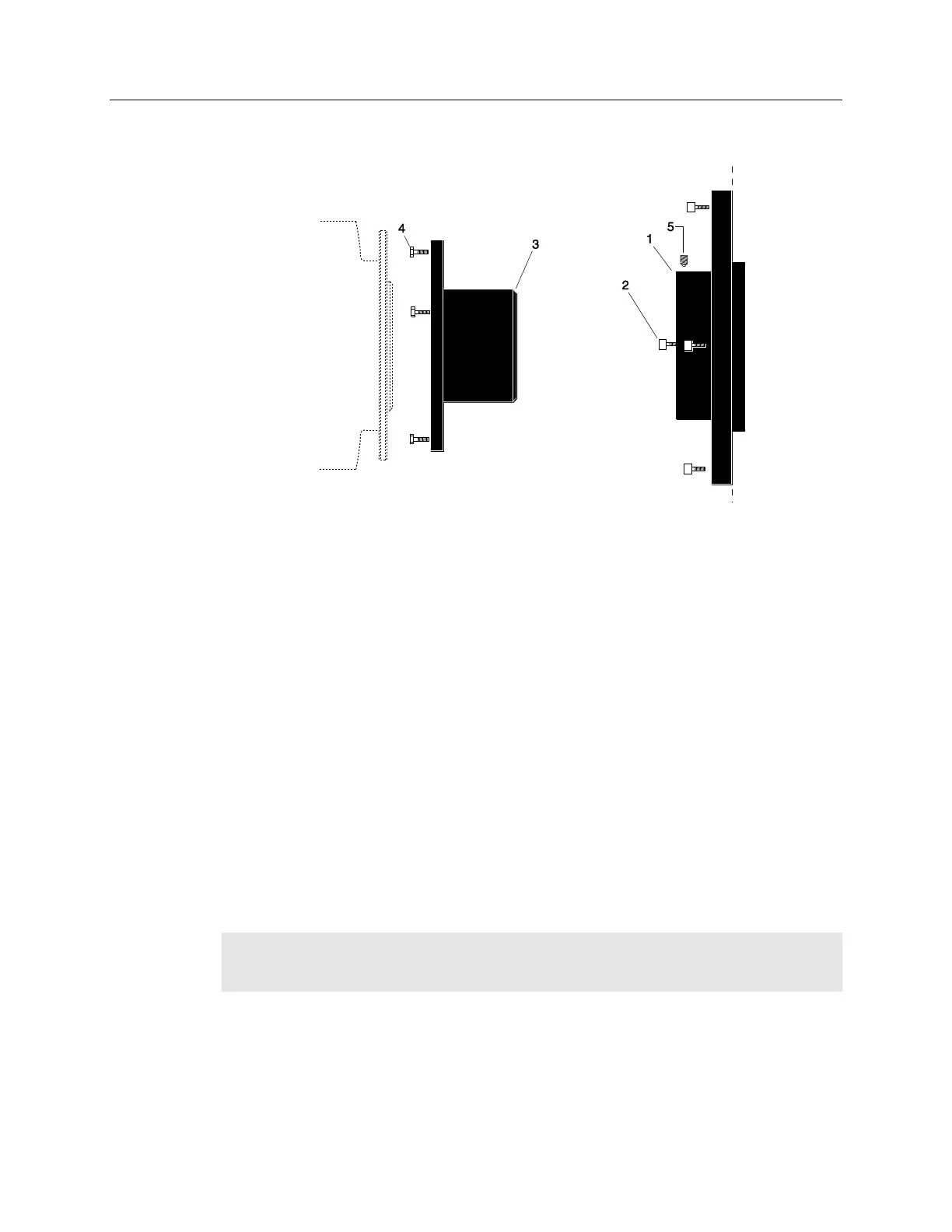

Qty P/N Description
1. 1 2518-0203 Adapter-F, HR-640
2. 4 2826-0144 Screw, M4x.7x14 mm, Socket Head, Hex, Stainless Steel
3. 1 2518-0227 Adapter-Male, ICCD Diode Array
4. 3 2826-0120 Screw, 10-32 1/2, Hex Head, Stainless Steel
5. 2 2826-0082 Set Screw, 10-32 1/4, Stainless Steel, Allen Hex, Nylon Tip
Assembly Instructions
1. Attach part 1 to the spectrograph wall (dashed line in illustration) with the socket
head screws provided.
2. Leaving 1/4" of thread exposed, mount the three (3) hex head screws to part 3.
3. Mount the adapter to the detector flange and rotate the adapter so the screw heads are
over the narrow end of the slots.
4. Tighten the screws.
5. Gently insert part 3 into part 1 and fasten with the setscrews.
Note: Adapter parts are machined to provide a tight fit. It is necessary to rotate the detector
back and forth when inserting into the spectrograph adapter. Do not force the two parts of the
adapter together, as they can be permanently damaged by excessive force.
