Appendix D
C-Mount and F-Mount Adapters
Attaching the C-Mount or F-Mount Adapter to the PI-MAX
The PI-MAX is supplied with the lens mount adapter specified when the system was
ordered, normally either for a screw-type C-mount lens or for a bayonet type F-mount lens,
allowing a lens of the corresponding type to be mounted quickly and easily. If you have
multiple mount adapters and you want to change from one adapter type to another: loosen
the three setscrews, unscrew the current adapter, screw in the new adapter until it bottoms
out, and secure the adapter with the locking setscrews. The focal length distance will
automatically be correct to a high degree of precision.
The PI-MAX nose and imaging mounts are illustrated on the following pages.

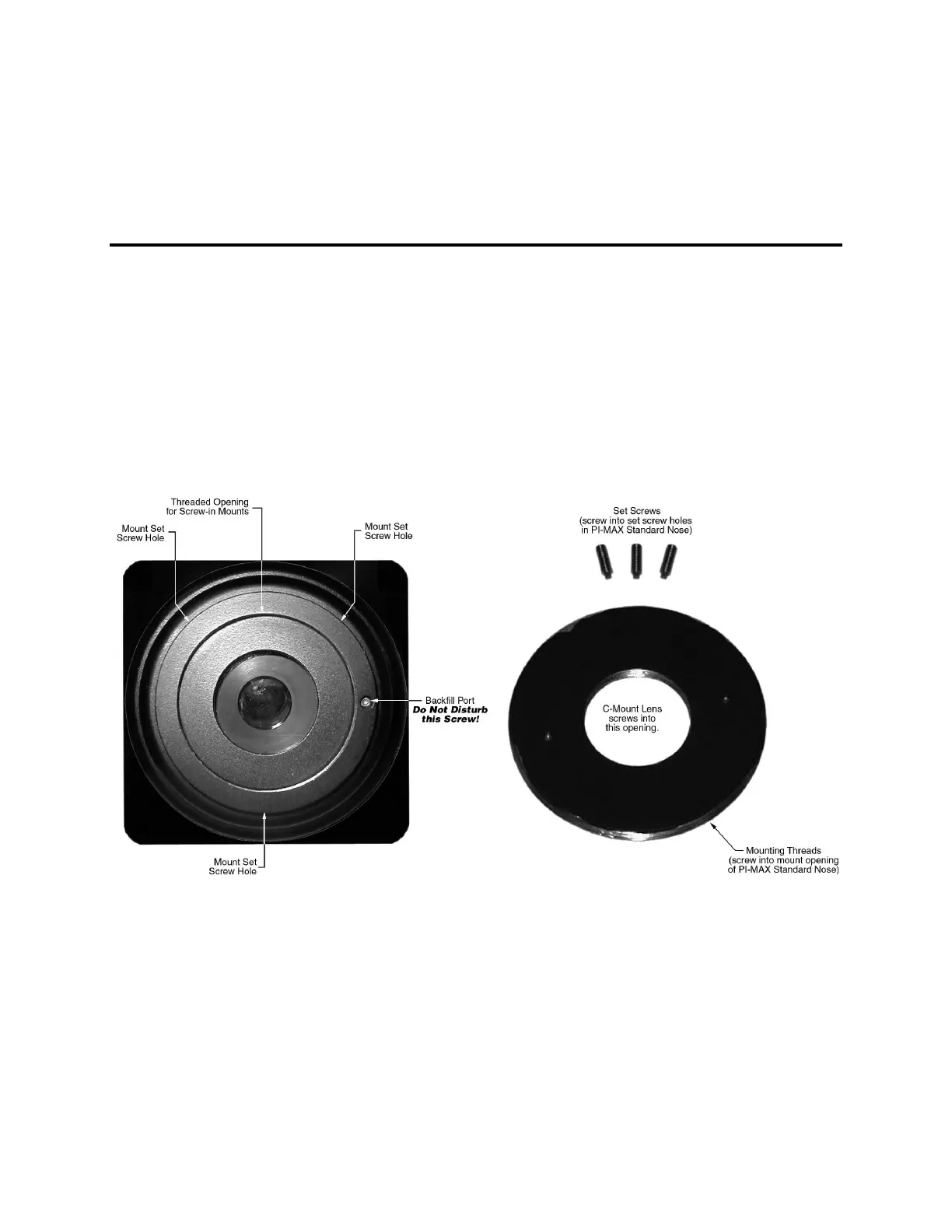

Figure 119. PI-MAX Standard Nose
Figure 120. C-Mount Adapter
