178 PI-MAX/PI-MAX2 System Manual Version 5.F
many spikes 30 ADU. If these types of spikes occur, especially after the camera has
been in use for an extended period, turn off the system immediately. Have the unit
serviced by Princeton Instruments or an authorized service facility of Princeton
Instruments.
No CCD Named in the Hardware Wizard:CCD dialog
(Versions 2.5.19.0 and earlier)

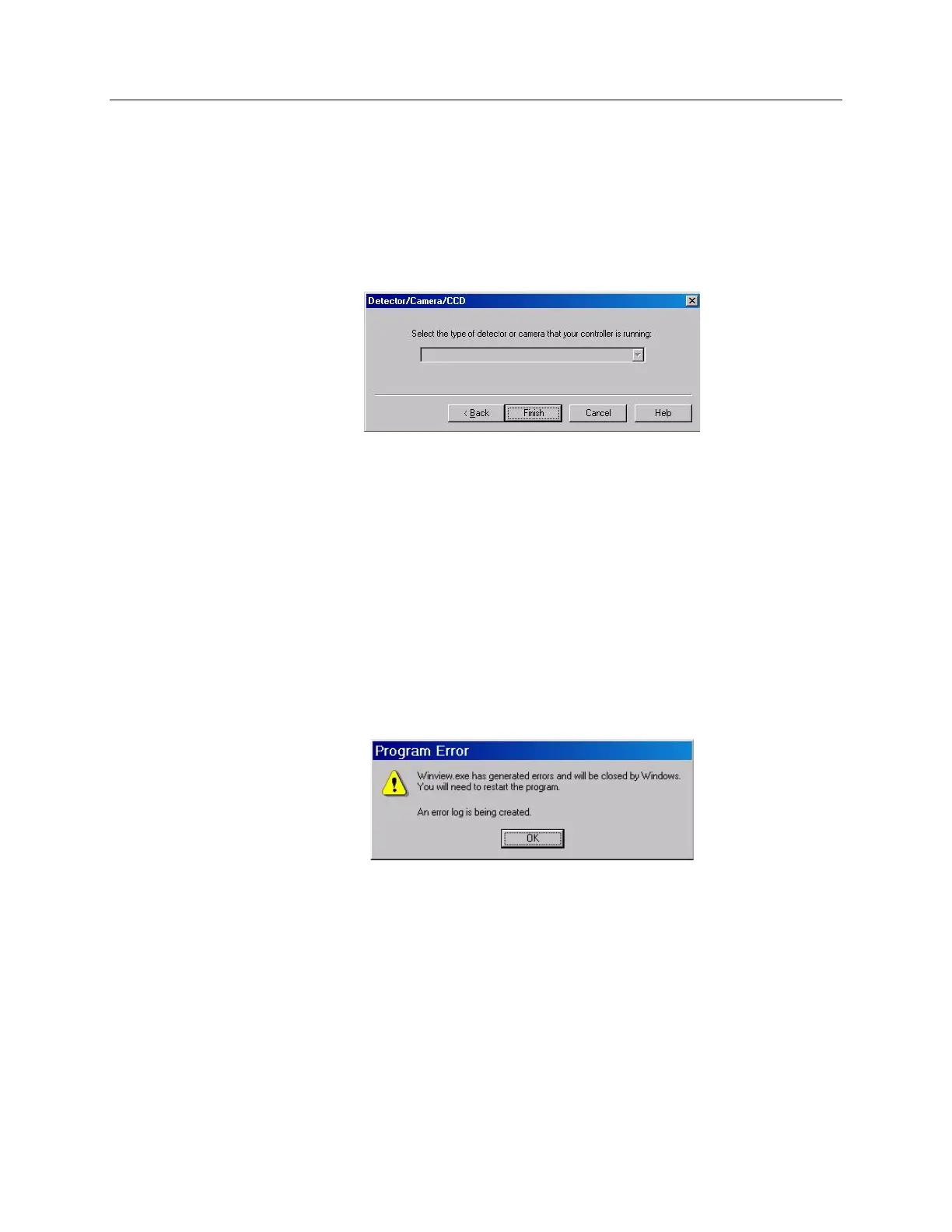

Figure 105. Hardware Wizard: Detector/Camera/CCD dialog box
If you have installed a USB 2.0 Interface Module in your ST-133, a blank field may be
displayed in the Detector/Camera/CCD dialog box (Figure 105) if the ST-133 controller
was made before January 2001. Earlier versions of the ST-133 did not contain non-
volatile RAM (NVRAM), which is programmed with information about the controller
and the camera. PVCAM, the program under which the Princeton Instruments USB
works, retrieves the information stored in NVRAM so it can enter specific camera
characteristics into the WinX application software..
Check the serial label on underside of your controller. If the first five characters are
D1200 (December 2000) or earlier (J0797 or July 1997, for example), contact Customer
Support to find out about an NVRAM controller upgrade.
Program Error message
Figure 106. Program Error dialog box
This dialog may appear if you have tried to acquire a test image, acquire data, or run in
focusing mode and the DMA buffer size is too small. A large array (for example, a
2048x2048 array), requires a larger setting than that for a smaller array (for example, a
512x512 array).
To correct the problem:
1. Click on OK.
2. Reboot the WinX application software (WinView/32 or WinSpec/32).
3. Note the array size (on the Setup|Hardware|Controller/CCD tab page or the
Acquisition|Experiment Setup|Main tab page Full Chip dimensions). If your
