208 PI-MAX/PI-MAX2 System Manual Version 5.F
Chromex 250 IS
Qty P/N Description
1. 1 2517-0901 Plate, Adapter-Female
2. 4 2826-0283 Screw, 10-32 3/4, Socket Head, Stainless Steel, Hex, Black
3. 1 2518-0227 Adapter-Male, ICCD Diode Array
4. 3 2826-0120 Screw, 10-32 1/2, Hex Head, Stainless Steel
5. 1 2826-0082 Set Screw, 10-32 1/4, Stainless Steel, Allen Hex, Nylon Tip
Assembly Instructions

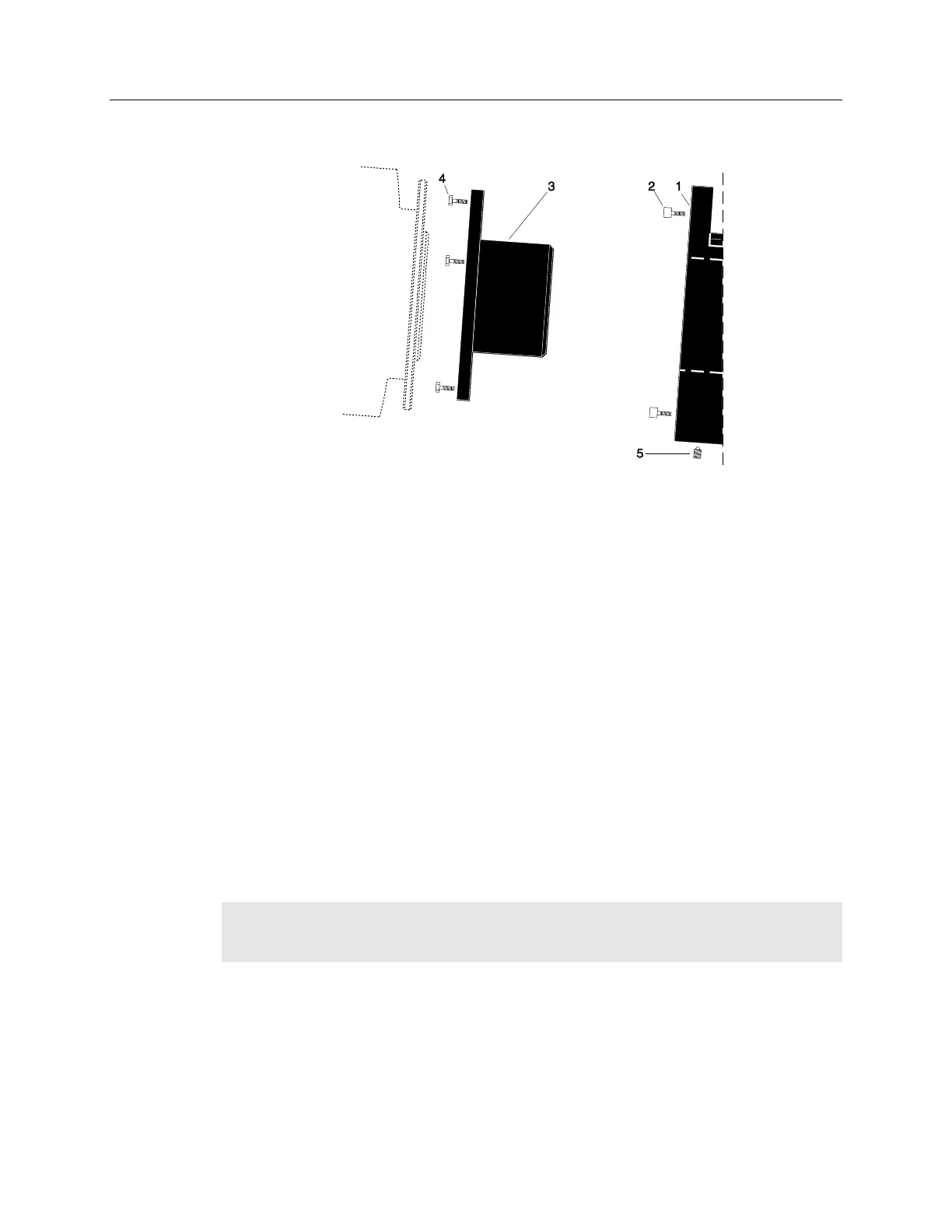

1. Attach part 1 to the spectrograph wall (dashed line in illustration) with the socket
head screws provided.
2. Leaving 1/4" of thread exposed, mount the three (3) hex head screws to part 3.
3. Mount the adapter to the detector flange and rotate the adapter so the screw heads are
over the narrow end of the slots.
4. Tighten the screws.
5. Gently insert part 3 into part 1 and fasten with the setscrew.
Note: Adapter parts are machined to provide a tight fit. It is necessary to rotate the detector
back and forth when inserting into the spectrograph adapter. Do not force the two parts of the
adapter together, as they can be permanently damaged by excessive force.
