Appendix E Spectroscopy-Mount and Spectrograph Adapters 213
SPEX TripleMate
Qty P/N Description
1. 1 2518-0183 Adapter-Male, ICCD/For Spex TripleMate
2. 4 2826-0128 Screw, 10-32 5/8, Socket Head Cap, Stainless Steel
3. 1 2517-0163 Slit Mount, Spex
4. 4 2826-0129 Screw, 1/4-20 3/4, Socket Head Cap, Stainless Steel
5. 3 2826-0120 Screw, 10-32 1/2, Hex Head, Stainless Steel
6. 1 2518-0185 Adapter-Female, Flange Spex
7. 2 2826-0070 Set Screw, 6-32 3/16, Stainless Steel, Allen Hex
1 2500-0025 O-ring, 2.359x.139, Viton (installed)
1 2500-0026 O-ring, 2.484x.139, Viton (installed)
Assembly Instructions

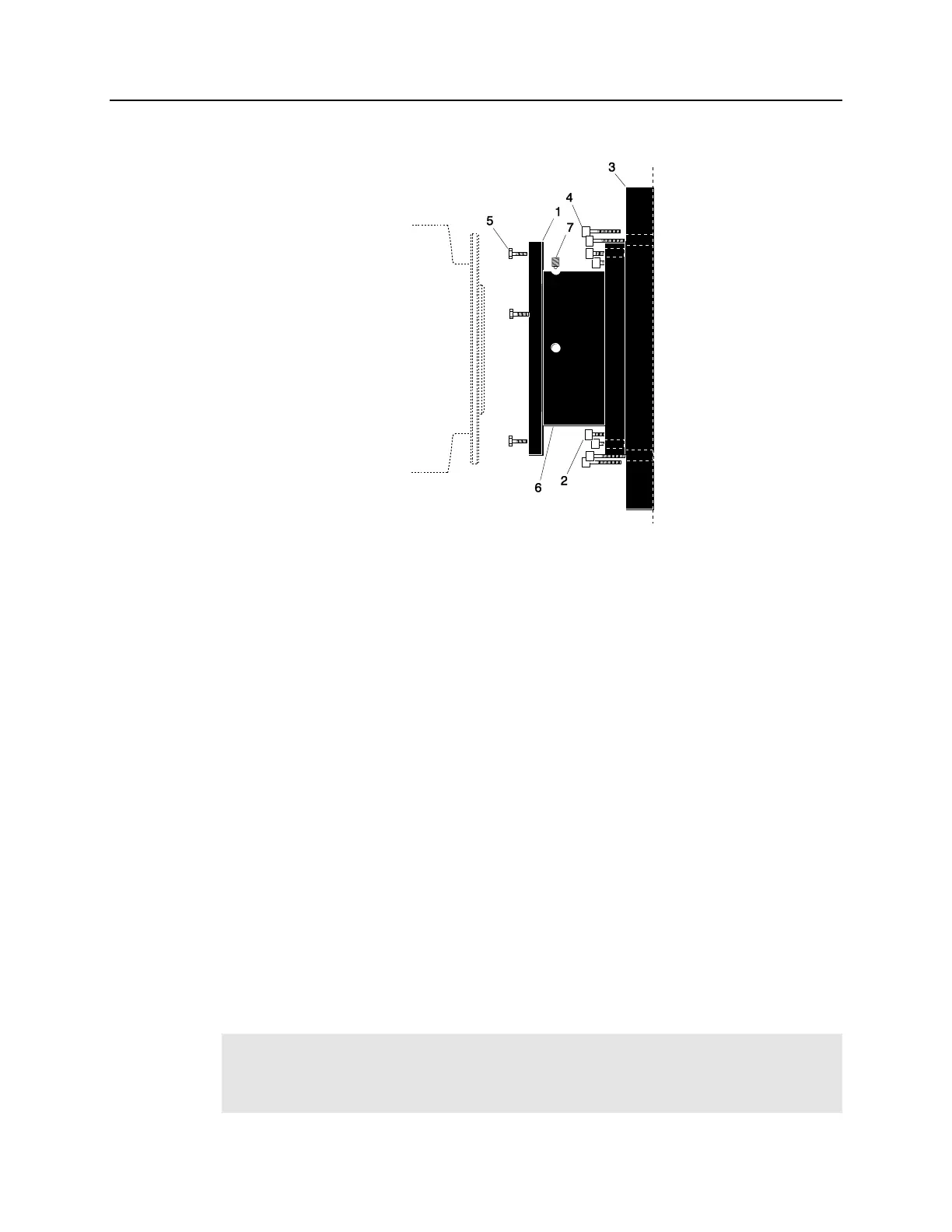

6. Mount the whole assembly onto the spectrograph (dashed line in illustration).
7. Leaving 1/4" of thread exposed, mount the three (3) hex head screws to part 1.
8. Mount the adapter to the detector flange and rotate the adapter so the screw heads are
over the narrow end of the slots.
9. Tighten the setscrews.
10. Tighten the hex head screws.
Note: Adapter parts are machined to provide a tight fit. It is necessary to rotate the
detector back and forth when inserting into the spectrograph adapter. Do not force the
two parts of the adapter together, as they can be permanently damaged by excessive
force.
