PRÜFTECHNIK ROTALIGN Ultra iS User Manual

ROTALIGN Ultra iS Shaft handbook
100

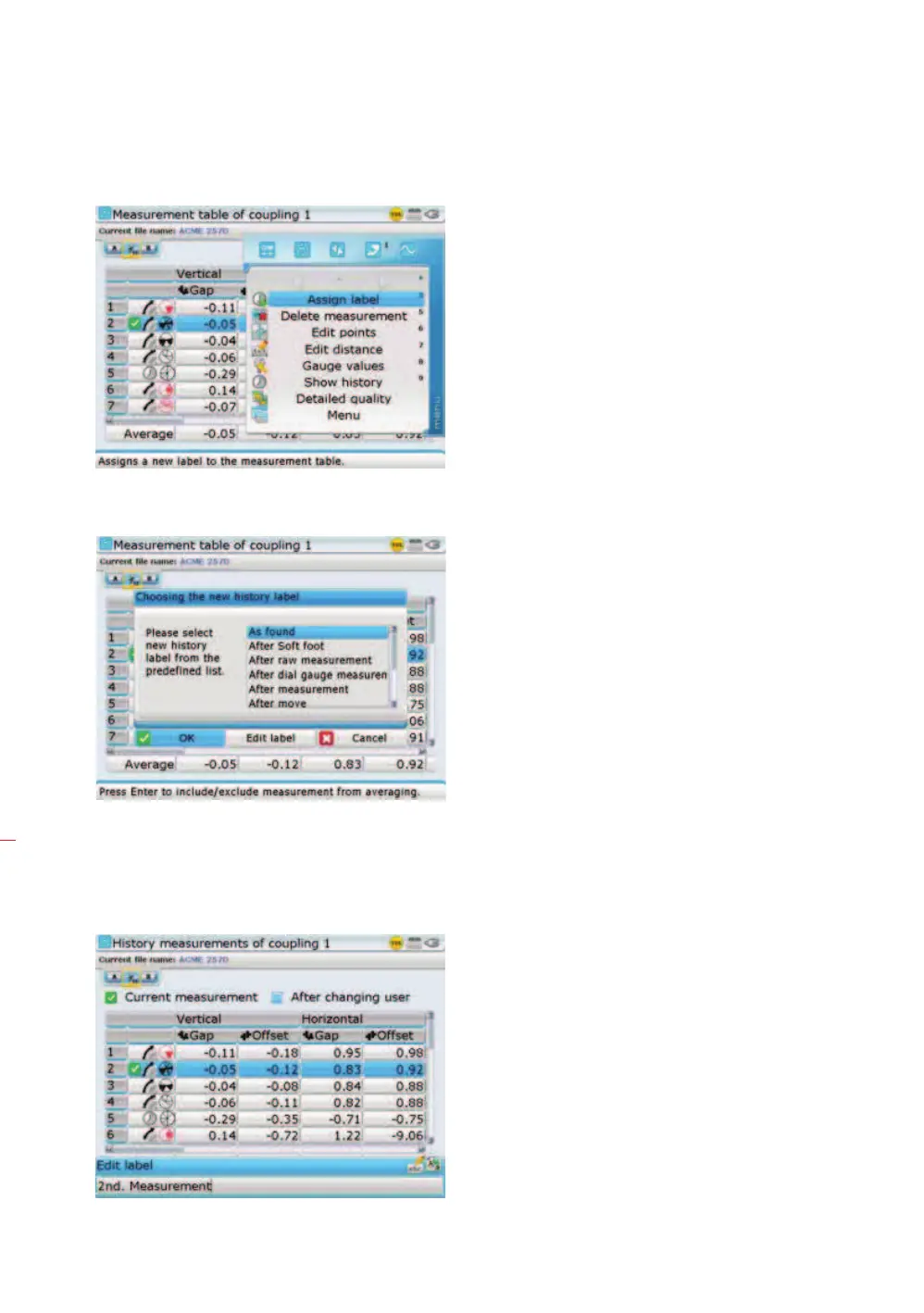

3. Press e to confirm selection. A dialog window with predefined labels appears.
4. Use
f/g to highlight the appropriate label. Confirm selection by using
h/i to highlight ‘OK’, then press
e to accept label.
5.2.2.1 Editing label
In this example,
measurement no. 2 which
has been highlighted and
checked is to be assigned
a label.
If desired, customized labels
may be defined using the
‘Edit label’ button.
In this example,
measurement no.2
previously had the label
‘After changing user’. This
is now being edited via the
‘Edit label’ button to ‘2nd
Measurement’.
