15
ROTALIGN Ultra iS is built to rugged industrial standards of shock and water resistance.
It contains a complete computer with a 5.7 inch (145 mm) color TFT full VGA display,
oval-shaped function and data entry keys, 4-way navigation keys, an On/Off/Enter
key, an up key, a clear key and a menu key.

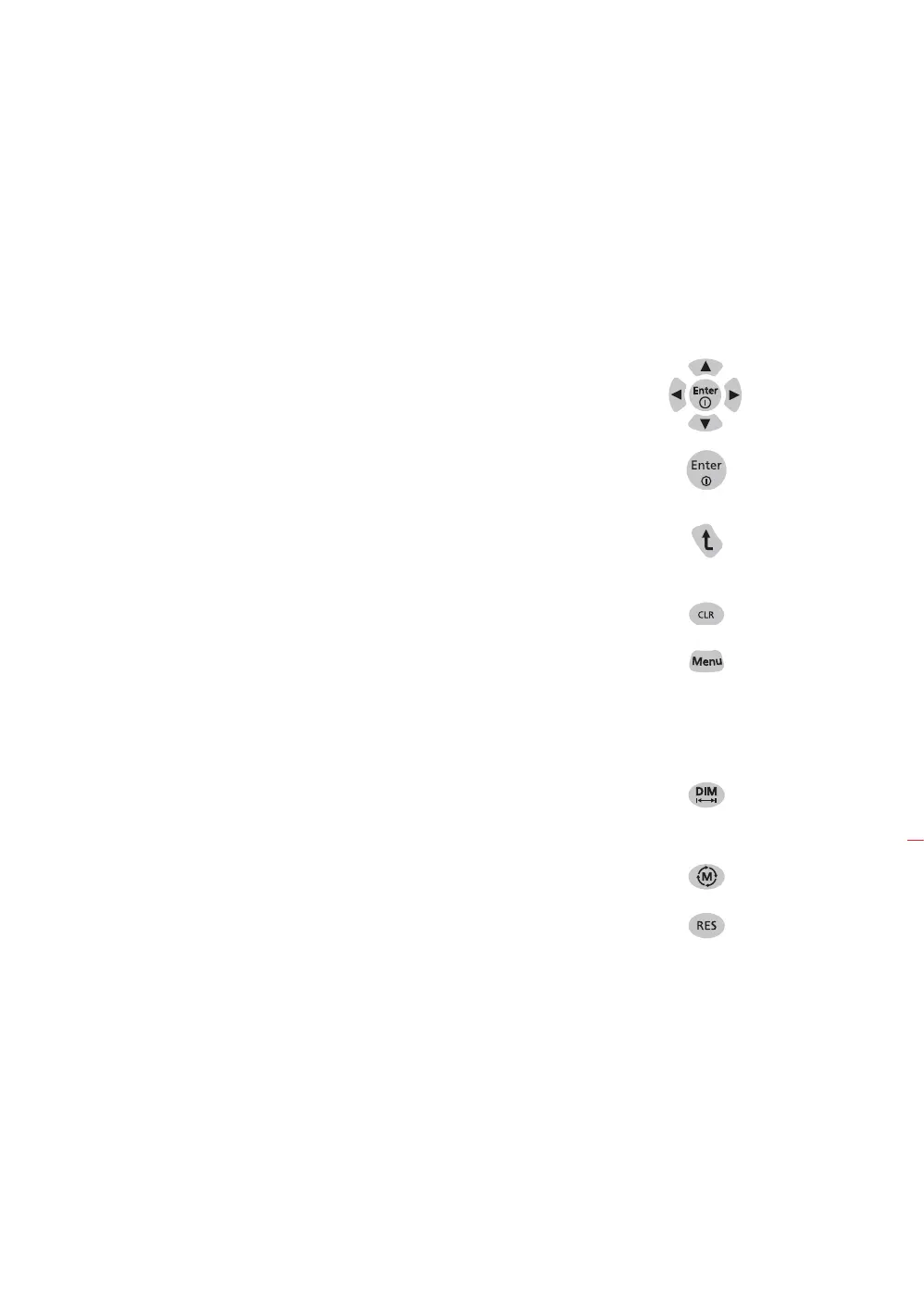

2.2.1 Operating keys
The navigation keys are used to navigate through the menu and display items.
The ‘On/Off/Enter’ key is used to perform four functions – switching ROTALIGN
Ultra iS on/off, and accessing any selected item or confirming an action. To
switch on/off, press and hold
e, the ‘On/Off/Enter’ key briefly.
The ‘Up’ key is used as a back/return key, taking user to previously selected
function, or to exit current screen.
The ‘CLR’ (Clear) key is used to delete information entered inadvertently.
The ‘Menu’ key is used to call-up menu options related to the selected display
screen. Pressing it twice brings up the global menu.
The data entry keys are used to enter relevant data.
ROTALIGN Ultra iS possesses 3 function keys.
The ‘Dimension’ key is used to access machine set-up where machine
dimensions and properties are defined.
The ‘Measurement’ key is used to access the measurement screen.
The ‘Result’ key is used to call alignment results into the display.
ROTALIGN Ultra iS computer
