ROTALIGN Ultra iS Shaft handbook
28

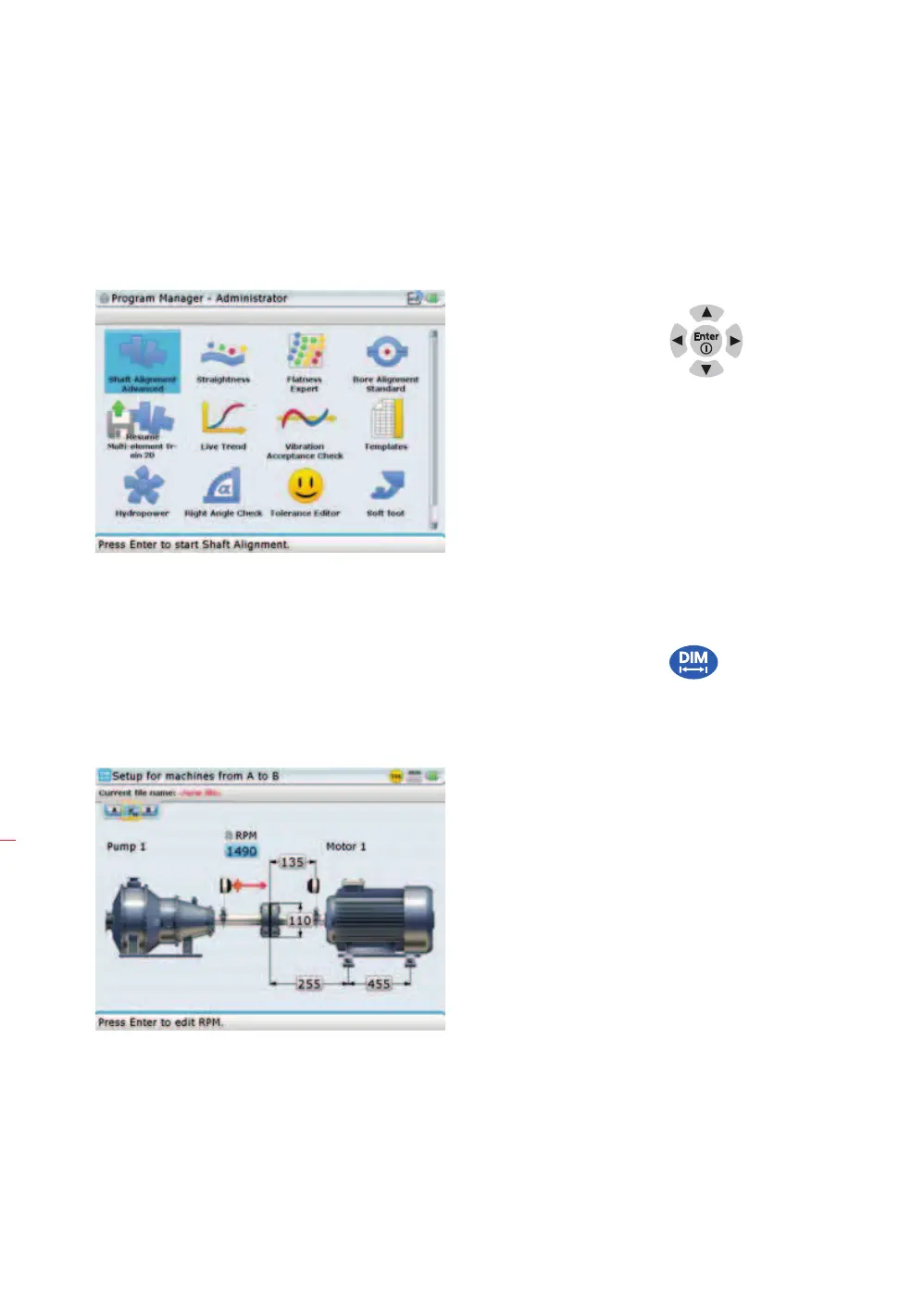

3.2.4 Press e to switch on the ROTALIGN Ultra iS computer
Press and hold
e the ‘On/Off/Enter’ key briefly. The opening screen below appears.
Use the navigation keys and highlight the ‘Shaft Alignment’ application icon in the
opening “Program Manager” screen, then press
e to confirm selection.
3.2.5 Enter machine dimensions
The machine set-up screen is accessed by pressing
d. You may use the global menu
(see section 3.2.9) items ‘Configuration’ -> ‘Units’ to set the desired measurement
units. [Refer to section 4.7 for details on how to enter machine dimensions.]
The navigation keys are
used to access available
applications and options.
The navigation direction is
either upwards/downwards
or sideways.
