4.9 Coupling properties
Coupling properties are entered and edited in the same manner as for machine
properties.
Use the navigation keys to place cursor on the ‘Type’ or ‘Format’ box then press
e.
Select type of coupling or result format from the drop down menu that appears using
f/g.
Use the navigation keys to highlight the ‘targets enabled’ or ‘tolerances enabled’
check box. With either box highlighted, press
e to check or uncheck the respective
box.
Targets and tolerances are activated only when the respective box is checked.

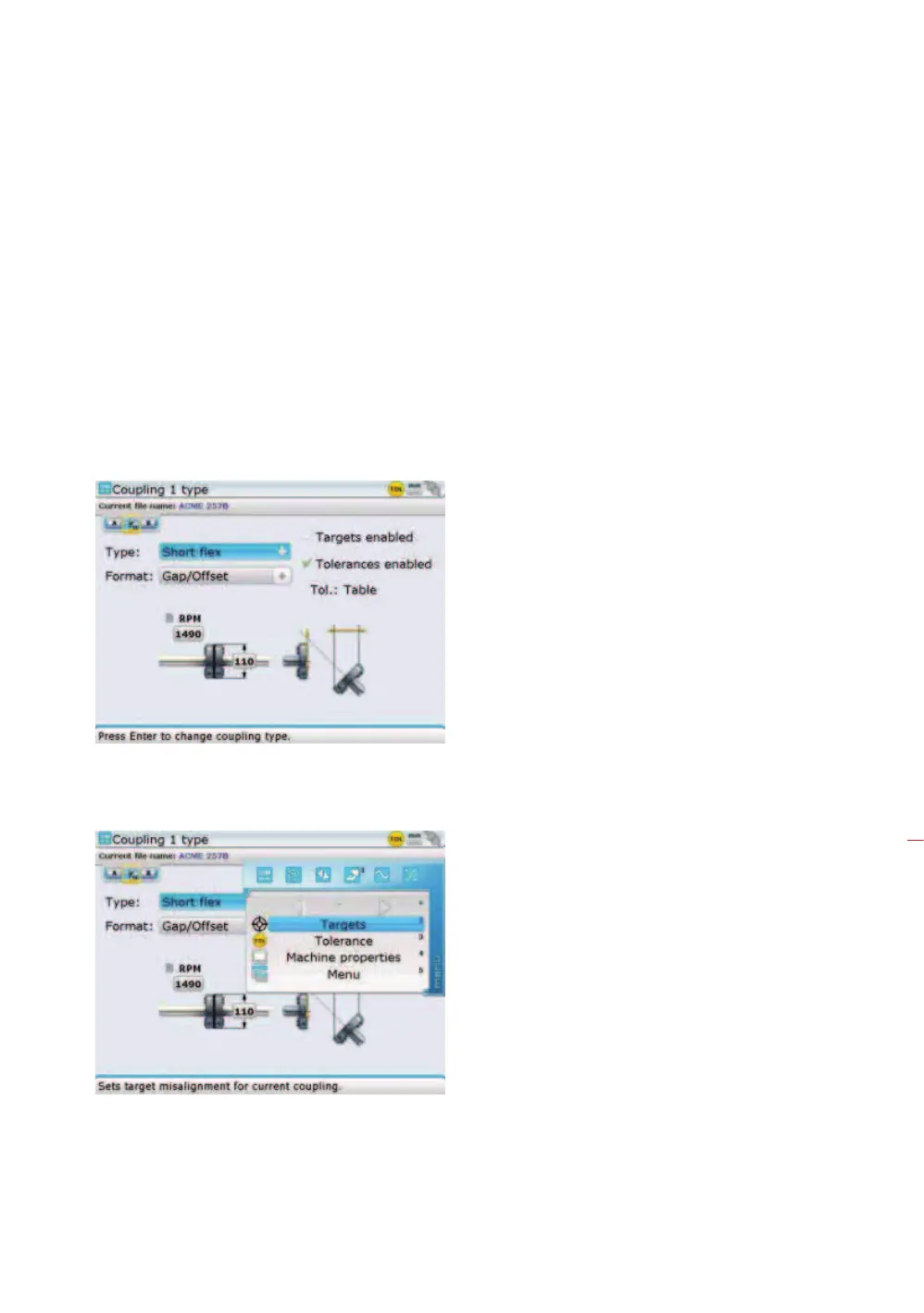

To enter coupling target values, press
q while in the “Coupling type” screen. The
context menu appears. Use either
f or g to highlight ‘Targets’.
Note that the navigation is
dependent on the option
selected in ‘Customization’.
The coupling targets
screen may alternatively be
accessed directly from the
context menu by pressing
the corresponding data
entry key.
