ROTALIGN Ultra iS Shaft handbook
126
5.4.4i Short flex
5.4.4ii Single plane
5.4.4iii Cardan shafts

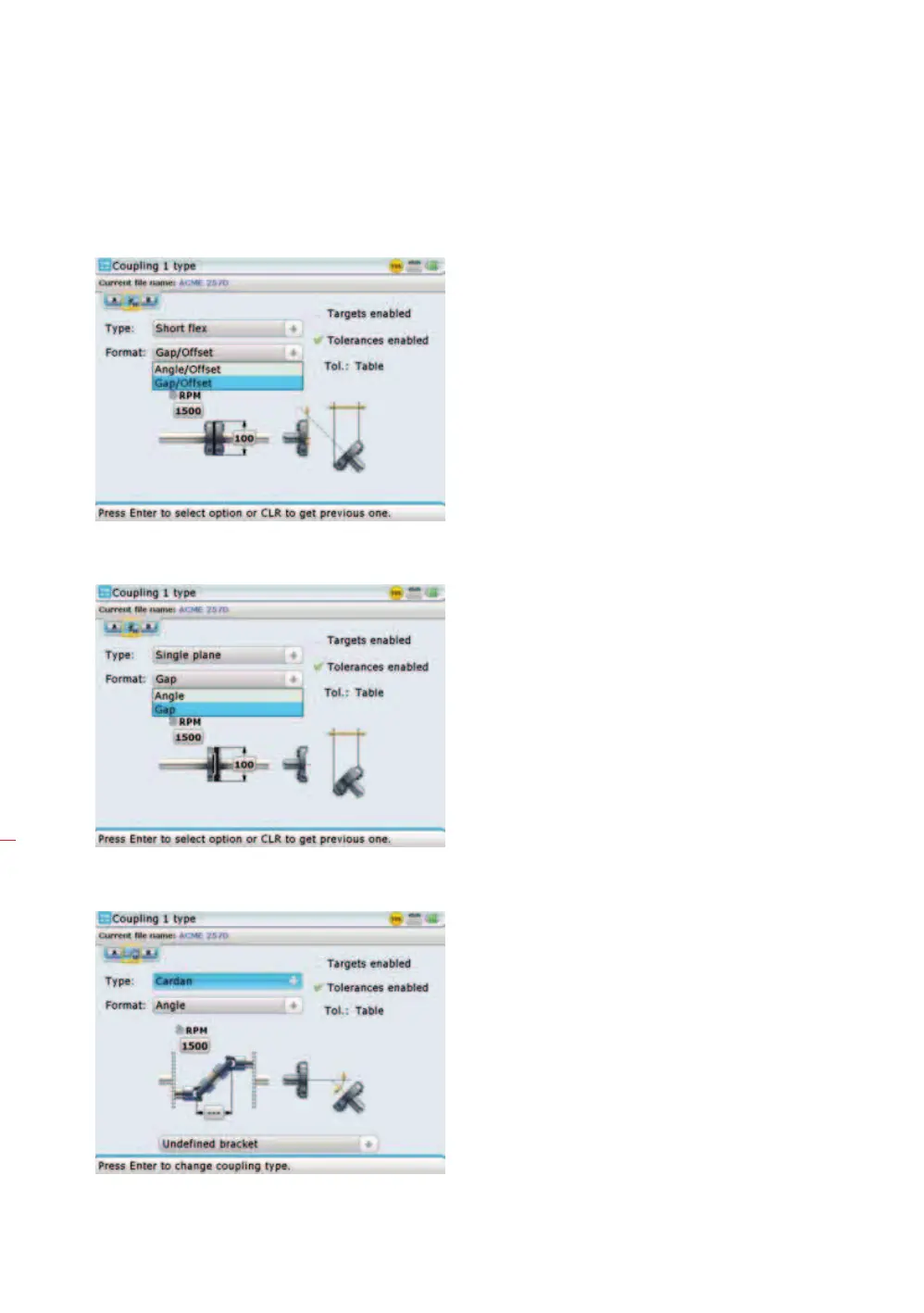

Short flex is for most
common types of
“compact” flexible
coupling. Coupling results
may be displayed either
as ‘Angle/Offset’ or ‘Gap/
Offset’.
Single plane is for simple
non-flexible couplings which
are usually just two flanges
bolted together. Coupling
results may be displayed
either as ‘Angle’ or ‘Gap’.
Cardan is for couplings with
large offsets joined together
by a spacer shaft and
universal joints. Results are
displayed in cardan angles.
