ROTALIGN Ultra iS Shaft handbook
92
5.1.5 Dial gauge mode
This mode is used to convert dial gauge readings into ROTALIGN Ultra iS Shaft values,
hence verifying calculations and comparing measurement results with those obtained
using ROTALIGN Ultra iS Shaft. It can also be used to convert ROTALIGN Ultra iS Shaft
alignment results into the commensurate dial gauge readings.
5.1.5.1 Converting dial gauge readings into ROTALIGN Ultra iS Shaft values

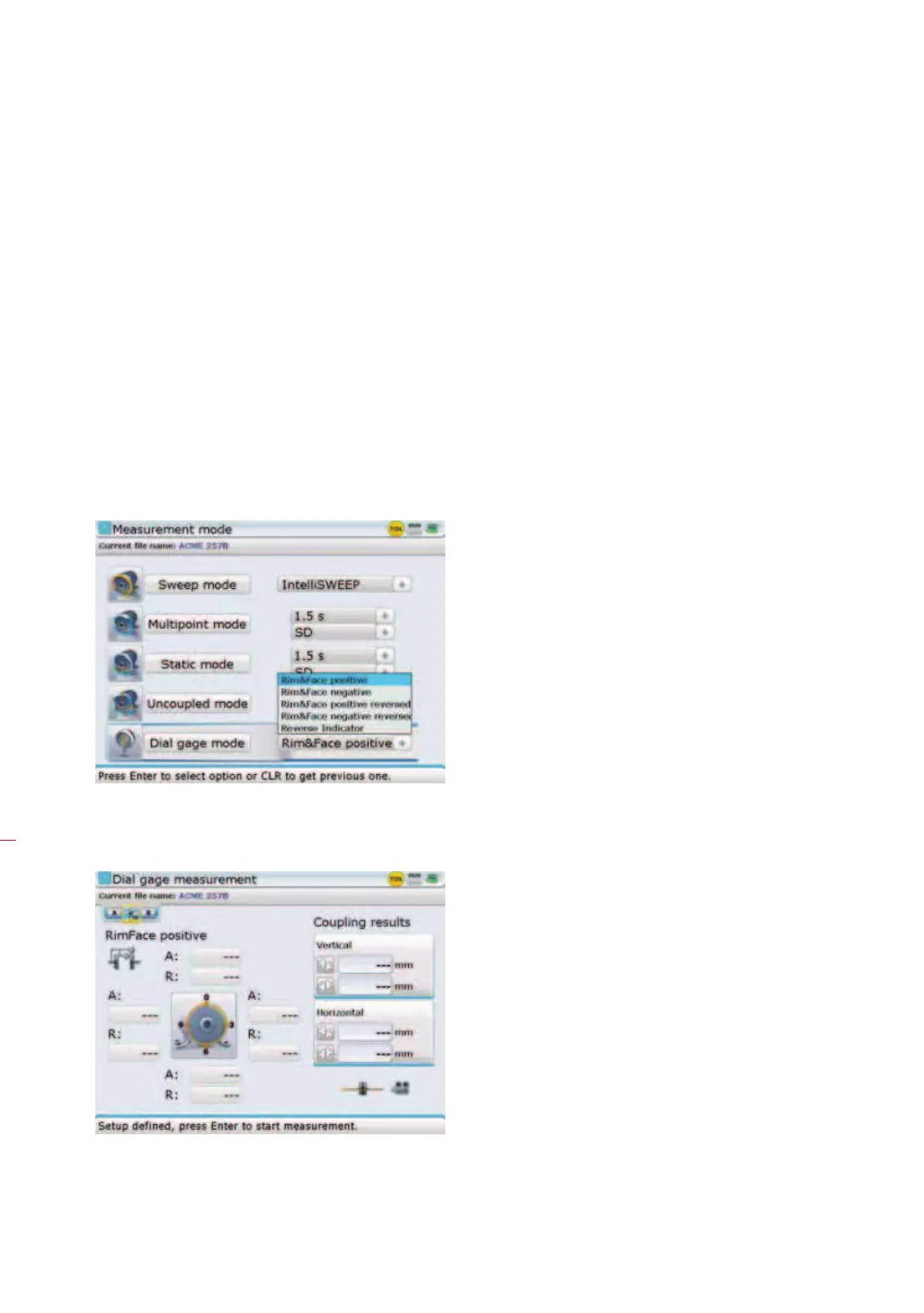

1. Press
m to open the measurement screen. With the measurement screen open,
press
q. The context menu appears. Use f/g to highlight the context
menu item ‘Measurement mode’, then press
e to confirm selection. From the
measurement mode screen that appears, use the navigation keys to select ‘Dial
gauge mode’ and the desired dial indicator configuration.
2. Press
e to confirm the set-up then exit to the “Dial gauge measurement”
screen by pressing
ß.
3. When back to the “Dial gauge measurement” screen, press
q then use
f/g to highlight the context menu item ‘Dial gauge set-up’.
