4. Press e to confirm selection, then proceed to enter required axial and radial
dimensions, and sag values using the data entry keys .
5. After entering the required dimensions and the
amount of bracket sag, press
ß to return to the
dial gauge measurement screen. To enter the dial gauge values, press
e. The
cursor highlights the 12:00 o’clock rim value box.
Alternatively, use the “Dial
gauge measurement”
screen context menu item
‘Start’ to begin entering the
dial gauge values.

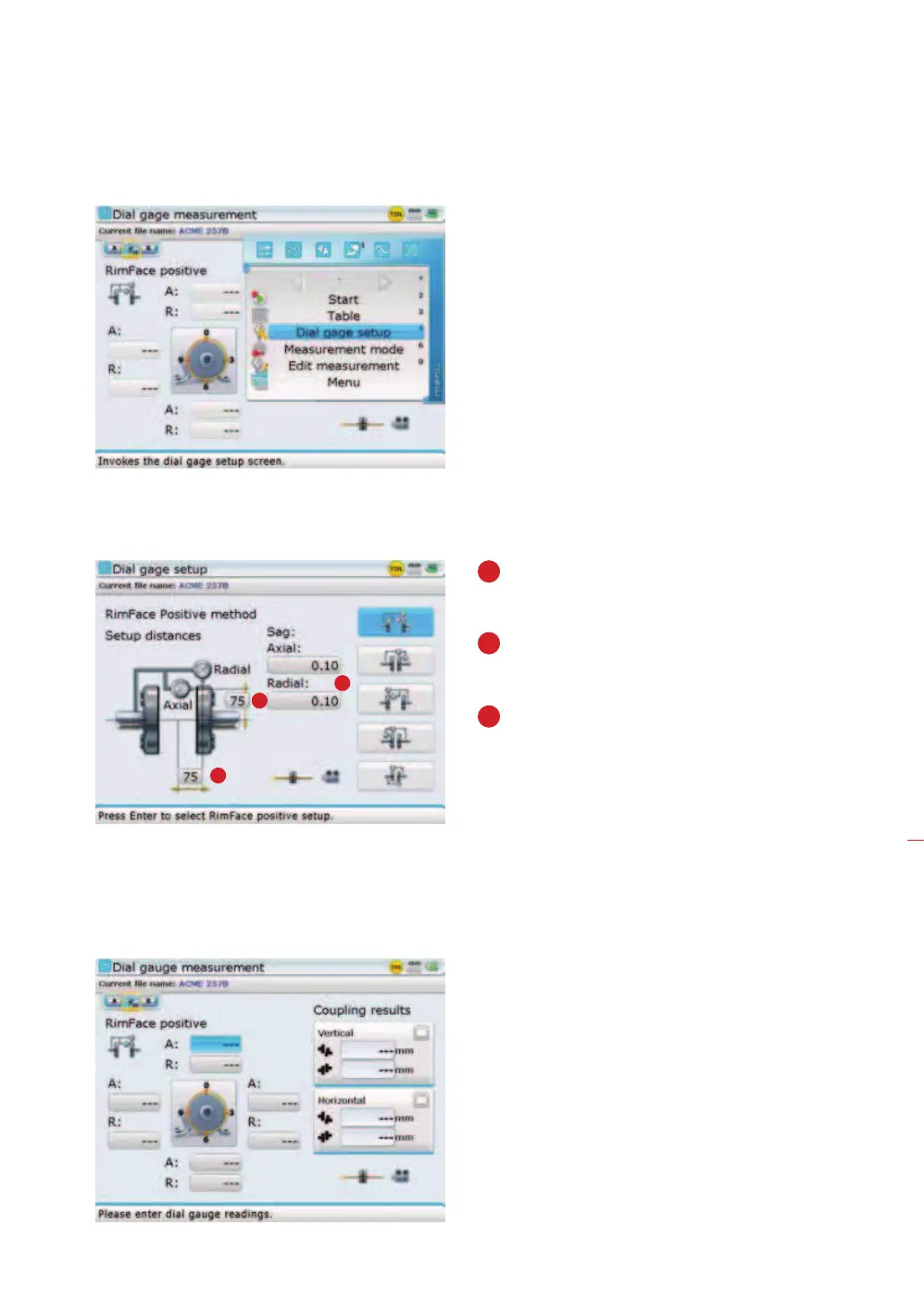

Measurement modes
1
2
3
1
In this method, enter
the radius of the axial gauge
from the shaft center.
2
Here, we enter distance
from the radial gauge to the
coupling center.
3
Enter radial and axial
sag values.
Values are entered directly
using the data entry keys
and confirmed by pressing
either
e or ß.
