6.4.2 Flange geometry and dimensions

1. After conﬁguring the machines, proceed to enter all necessary dimensions as

described in section 4.7.

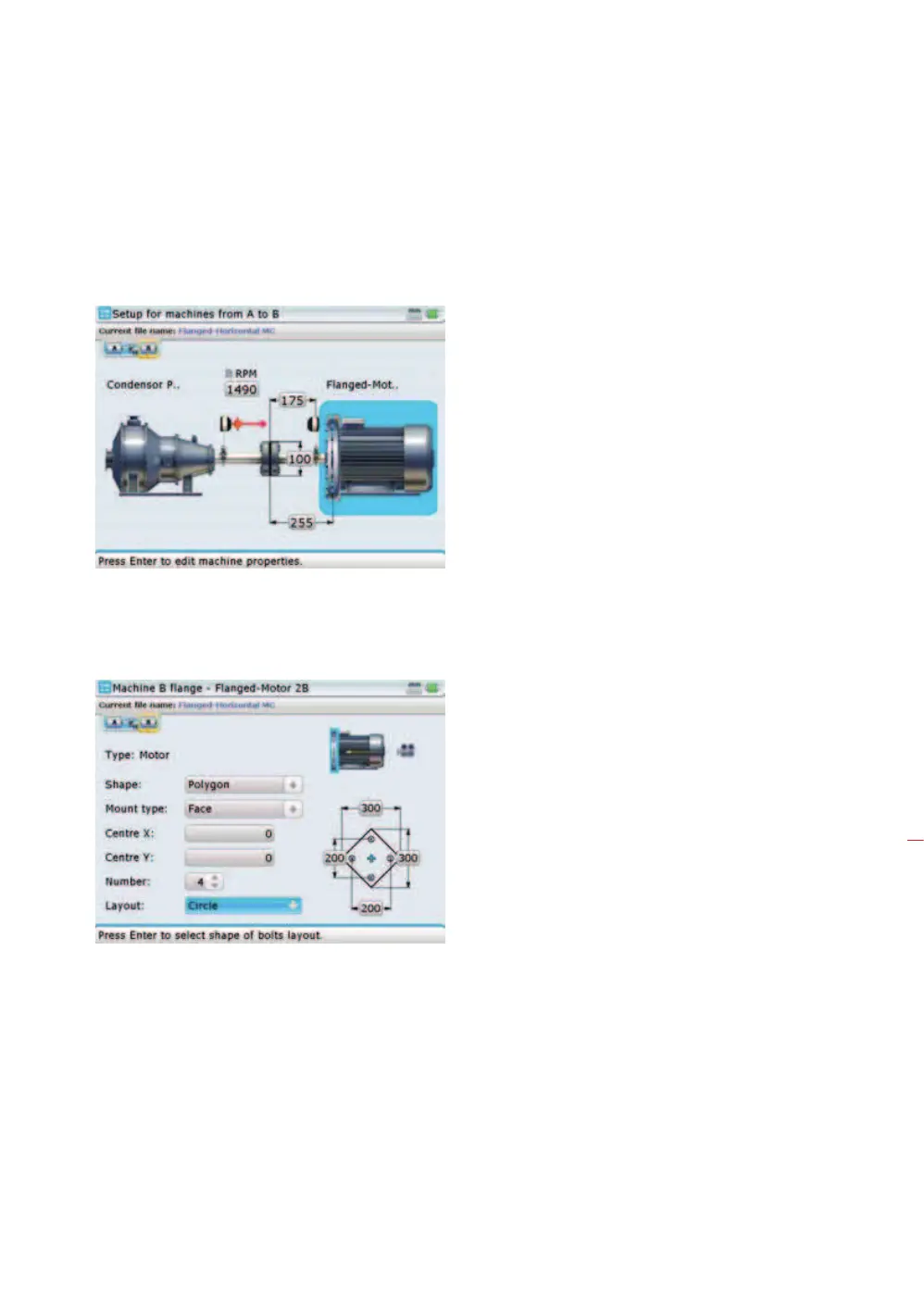

2. Edit the ﬂange geometry by highlighting the ﬂange-mounted machine then

pressing

e. A hint requesting the deﬁnition of the ﬂange appears. Conﬁrm by

pressing

e. The ﬂange editing screen appears.

c) Edit the ﬂange geometry as described in section 6.3.3 previously (Set-up ﬂanged

machines).

Flanged machines
