PRÜFTECHNIK ROTALIGN Ultra iS User Manual

Special alignment options
123

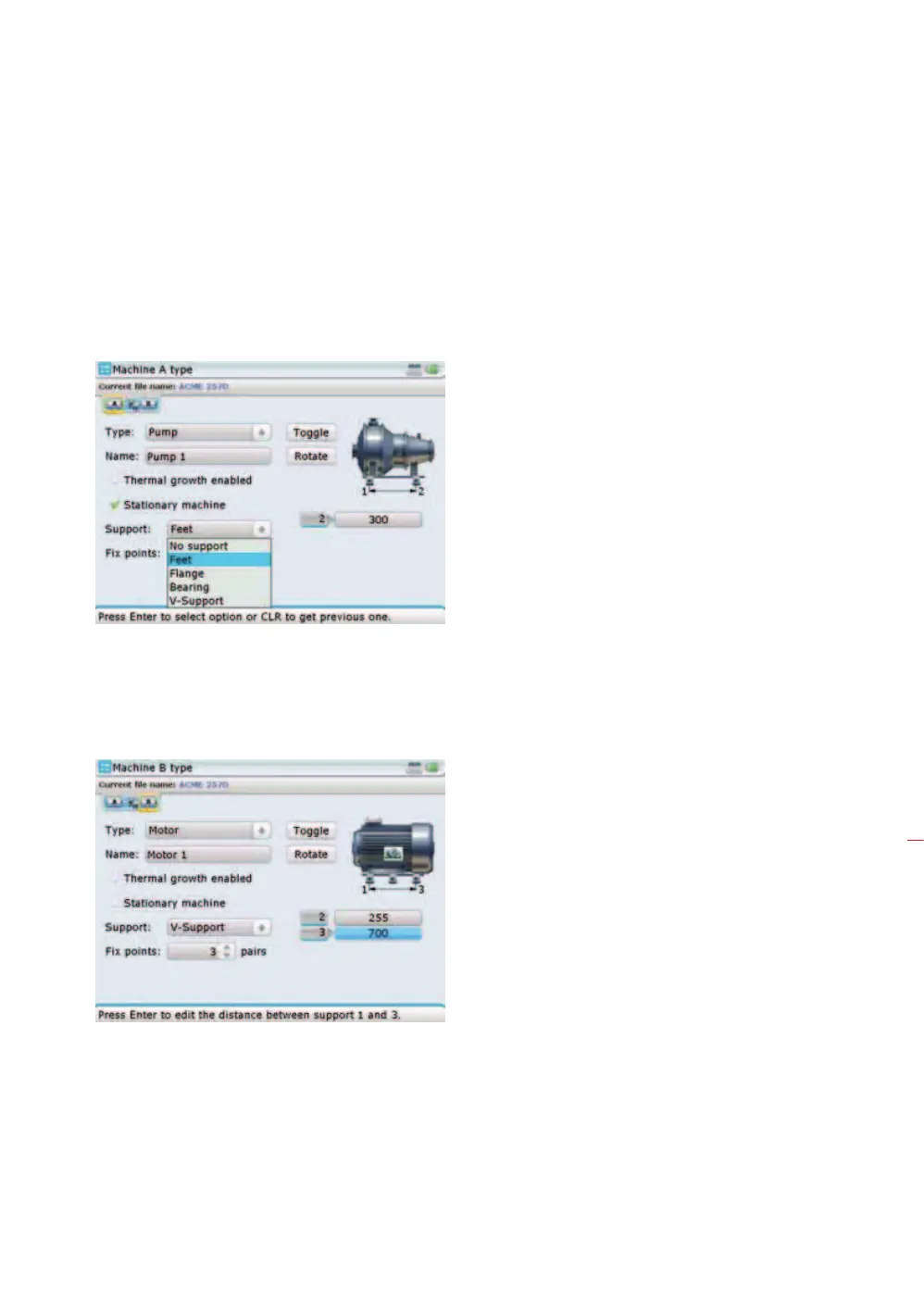

5.4 Set-up options
5.4.1 Machine type and fixation
ROTALIGN Ultra iS Shaft provides the user with a feature to designate the type and
fixation for both left and right machines.
5.4.2 Machine mounting
Detailed machine mounting can be specified in set-up.
In the set-up screen that follows, machine mounting has been defined as 6 feet (3
pairs of feet), has a V-foundation and is moveable.
Please refer to “Machine
properties in section 4.8
Use the navigation keys
to highlight machine item
boxes. Press
e to either
check selected item box or
prompt the corresponding
drop down menu.
