PRÜFTECHNIK ROTALIGN Ultra iS User Manual

23
2.4 sensALIGN sensor ALI 4.900
sensALIGN sensor contains two position detectors, which measure the exact position
and inclination of the laser beam as the shafts are rotated. Integrated in the sensor
is Bluetooth technology for wireless transmission of measurement data to ROTALIGN
Ultra iS computer. sensALIGN sensor also transmits sensALIGN laser data to the
computer. The intelligent sensALIGN sensor technology is used to determine shaft
rotational angle and machine vibration.
Positioned at the front of sensALIGN sensor are following indicator LEDs:
› Battery status LED
› Bluetooth communication LED
› Four beam adjustment LEDs

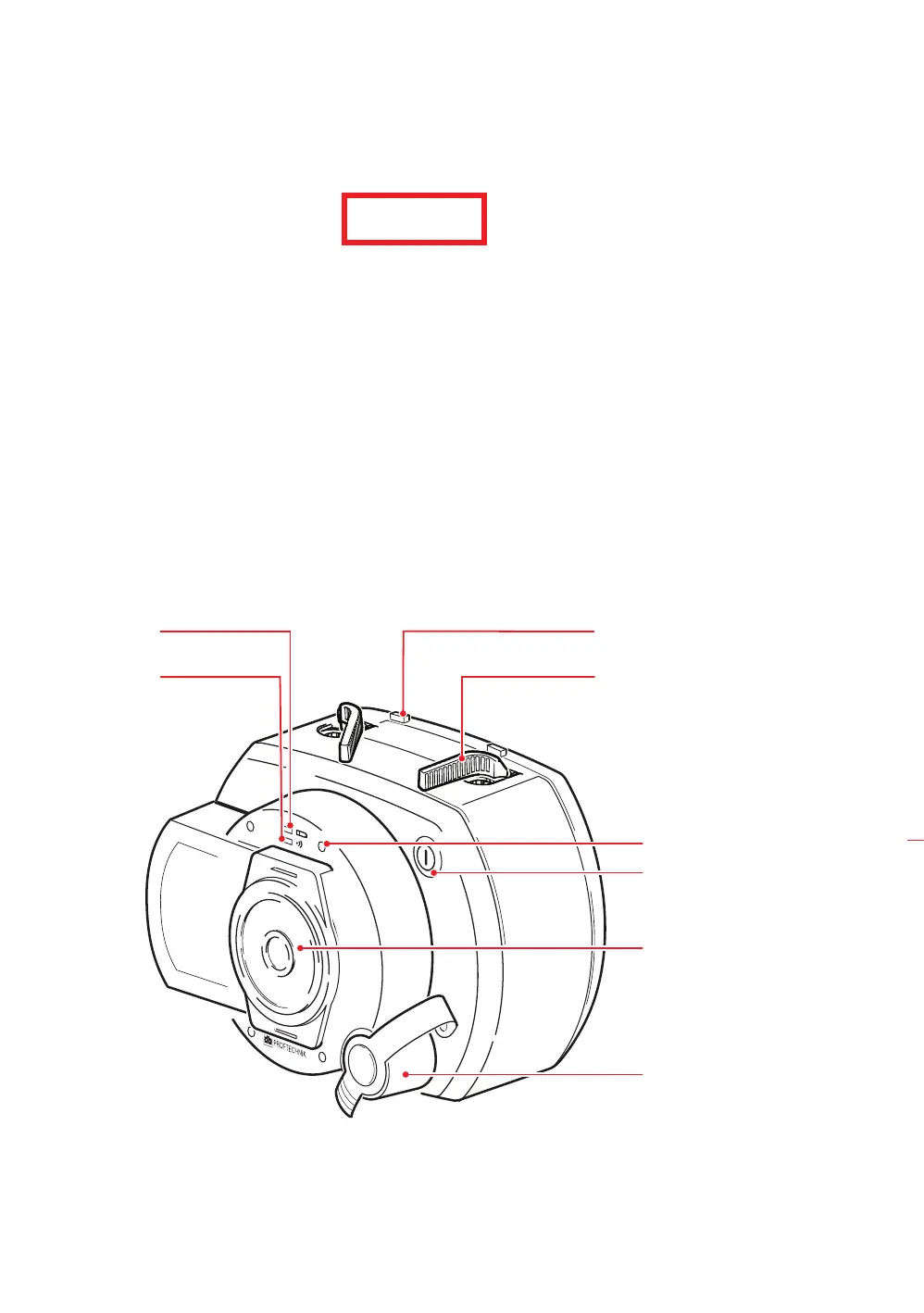

On/Off push button switch
Charger/adapter/sensor
cable socket(shown covered)
Clamping lever (depicted here
in the ‘open’ position)
Battery status LED
Clamping lever
stopper (positioned on
sensALIGN rechargeable battery)
Bluetooth
communication LED
Laser beam adjustment
LED (four in number)
Sliding dust cap (red)
sensALIGN sensor
