ROTALIGN Ultra iS Shaft handbook
68
4.14.2a Move simulator
As the name suggests, the Move simulator is used to simulate shim values and
horizontal movement corrections that are required to correct the alignment condition.
The simulator takes into account the shim thickness available and the amount by
which the machines can be physically moved.

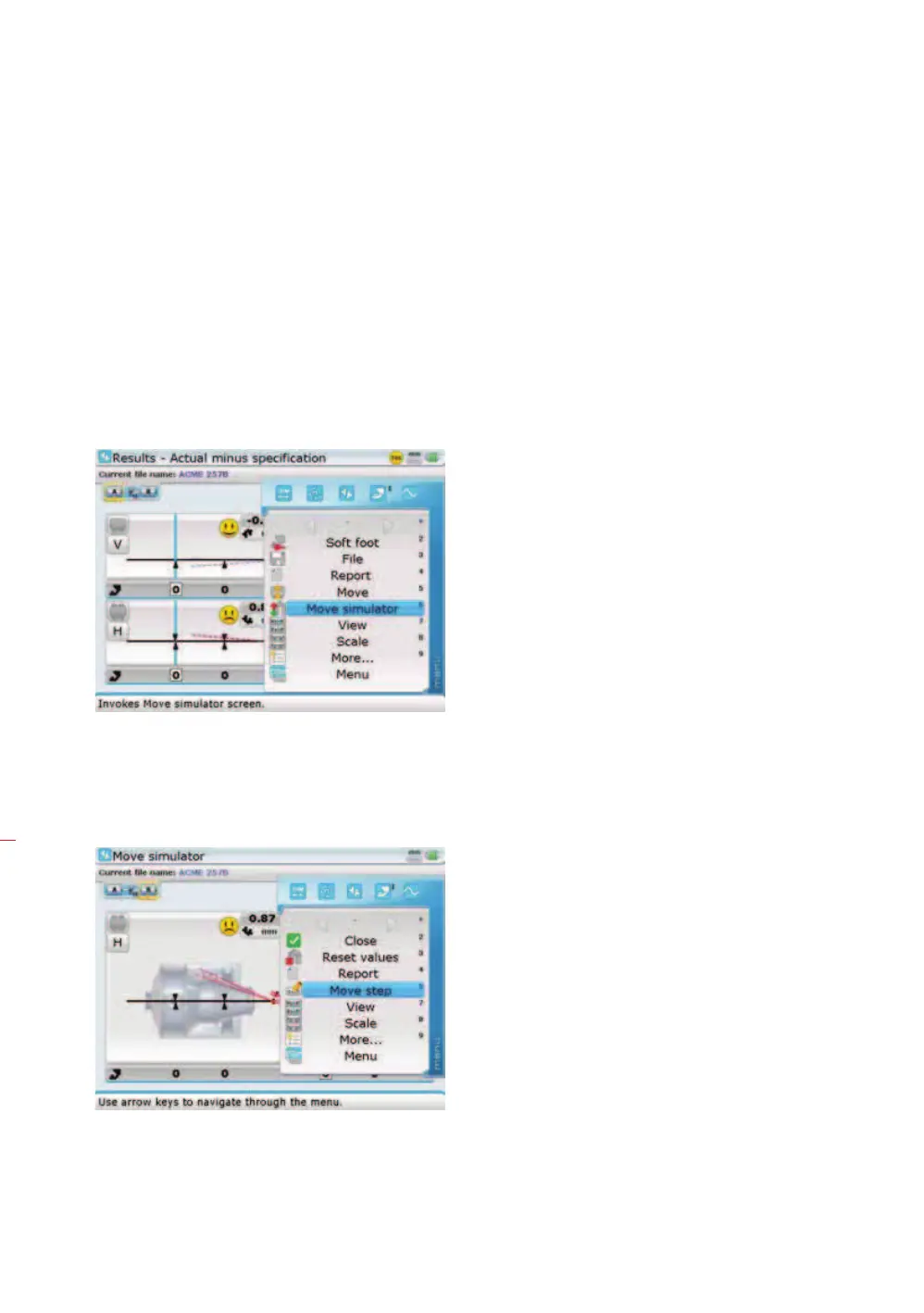

4.14.2b Initiating the Move simulator
Press
q while in the results screen. The context menu appears. Use f/g to
highlight the context menu item ‘Move simulator’.
Confirm selection by pressing
e. The “Move simulator” screen opens. To effectively
use the Move simulator, it is necessary to set the required machine movement step.
This value is set using the Move simulator screen context menu ‘Move step’. Call up
the context menu by pressing
q while in the Move simulator screen.
Use
f/g to highlight the context menu item ‘Move step’ then press e to
confirm selection. The next screen with the editing box appears.
Note that when selected
and activated, the
Move simulator starts
with the vertical view.
Use the context menu
item ‘View’ present in
both the “Results” and
“Move simulator” screens
to select the desired
orientation.
