2.3 sensALIGN laser ALI 4.910
The semiconductor laser diode emits a ray of red light (wavelength 635 nm) which
is visible where it strikes a surface. The Class 2 laser beam is emitted with a diameter
of approx. 5 mm (3/16”).
sensALIGN laser is turned on by pressing and holding the on/off switch briefly. The
“beam active” LED lights red.
With sensALIGN laser on, DO NOT stare into the laser beam!
The beam is adjusted during set-up by changing its vertical and horizontal angles
using the position thumbwheels, so that the beam strikes the sensALIGN sensor lens
perpendicular to the lens surface.
sensALIGN laser is water and dust resistant (IP 65). The internal optics and electronics
are internally sealed, preventing possible contamination.
Information regarding the battery status, the rotational angle, the temperature and
the serial number of the sensALIGN laser are transmitted through the laser beam into
sensALIGN sensor. This information is further relayed to ROTALIGN Ultra iS computer.
sensALIGN laser ALI 4.910 is powered using sensALIGN rechargeable battery
ALI 4.960 a 3.7 V 1.6 Ah Lithium Polymer rechargeable battery. The rechargeable
battery is attached to the laser and is to be charged only using the sensALIGN charger/
adapter ALI 4.651-I, and is possible only when the battery is attached to the laser.

WARNING
Wit
h
sensALIGN
l
aser on, DO NOT stare into t
h
e
l
aser
b
eam!

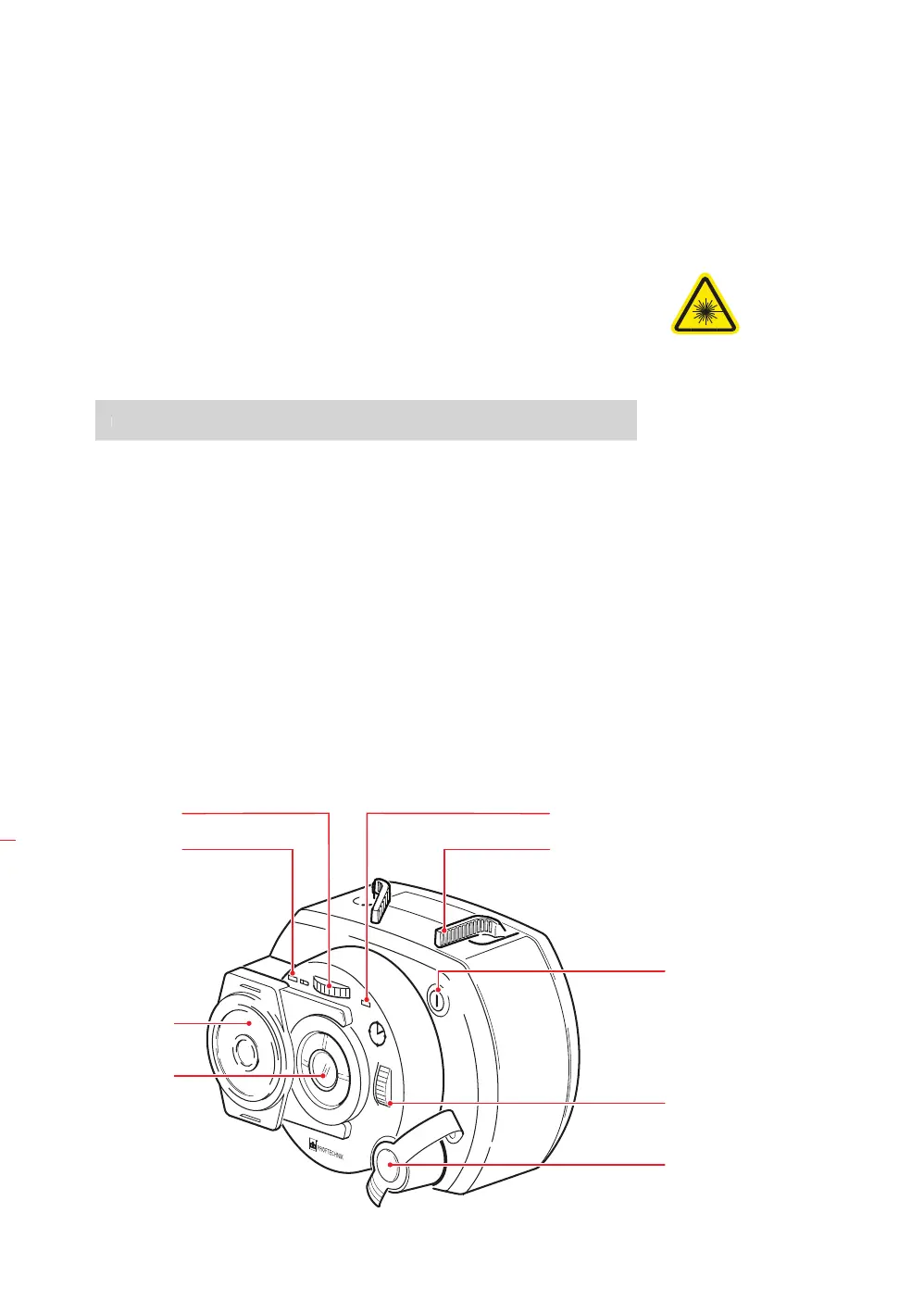

On/Off push button switch
Beam active LED
Horizontal beam position
thumbwheel (yellow)
Charger/adapter
socket (shown covered)
Sliding dust cap
(yellow)
Clamping lever (depicted
here in the ‘open’ position)
Vertical beam position
thumbwheel (yellow)
Laser aperture
Battery status LED
