ROTALIGN Ultra iS Shaft handbook
18
2.2.5 Mounting and dismounting the AC power supply/charger plug
The AC power supply/charger ALI 12.651-I comes with three different regional plugs.
The available plugs are for the Euro zone, the US, and the UK. When mounting or
dismounting a plug, pay attention to the direction of the arrow on the plug just above
the pins, and the arrow on the latching nipple on the charger housing.
To dismount a plug, push the latching nipple in the forward direction [
1
] as indicated
by the arrow on it and hold, then push the plug to the right [
2
] as on the arrow on
the plug.
To mount a plug, push the latching nipple in the forward direction [
1
] as indicated
by the arrow on it then slip the plug into the protruding prongs and slide it to the left
until it latches.
2
1

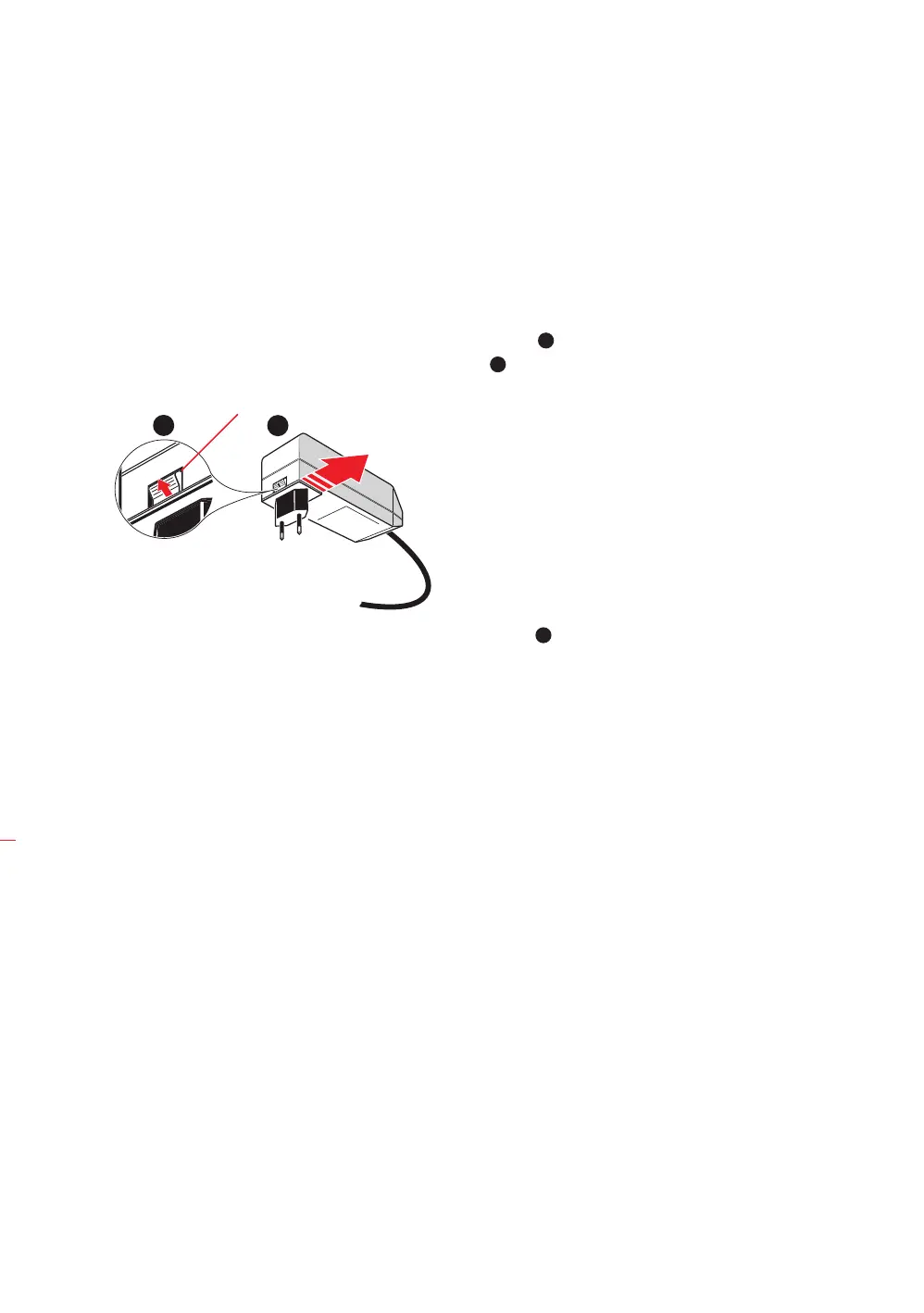

The direction arrow on the
plug has the inscription
‘OPEN’ marked above it.
Latching nipple
