PRÜFTECHNIK ROTALIGN Ultra iS User Manual

83
Chapter 5: Alignment features
5.1 Measurement modes
ROTALIGN Ultra iS Shaft offers the following Shaft level dependent measurement
modes: Continuous Sweep, IntelliSWEEP, Multipoint, Static (0,3,6,9), IntelliPOINT,
IntelliPASS and Dial gauge measurement mode.
The intelligent measurement modes IntelliSWEEP, IntelliPOINT and IntelliPASS are only
available in Advanced and Expert Shaft levels.
IntelliSWEEP is the default measurement mode in both Advanced and Expert Shaft
levels while Continuous Sweep is the default measurement mode in Standard Shaft
level.

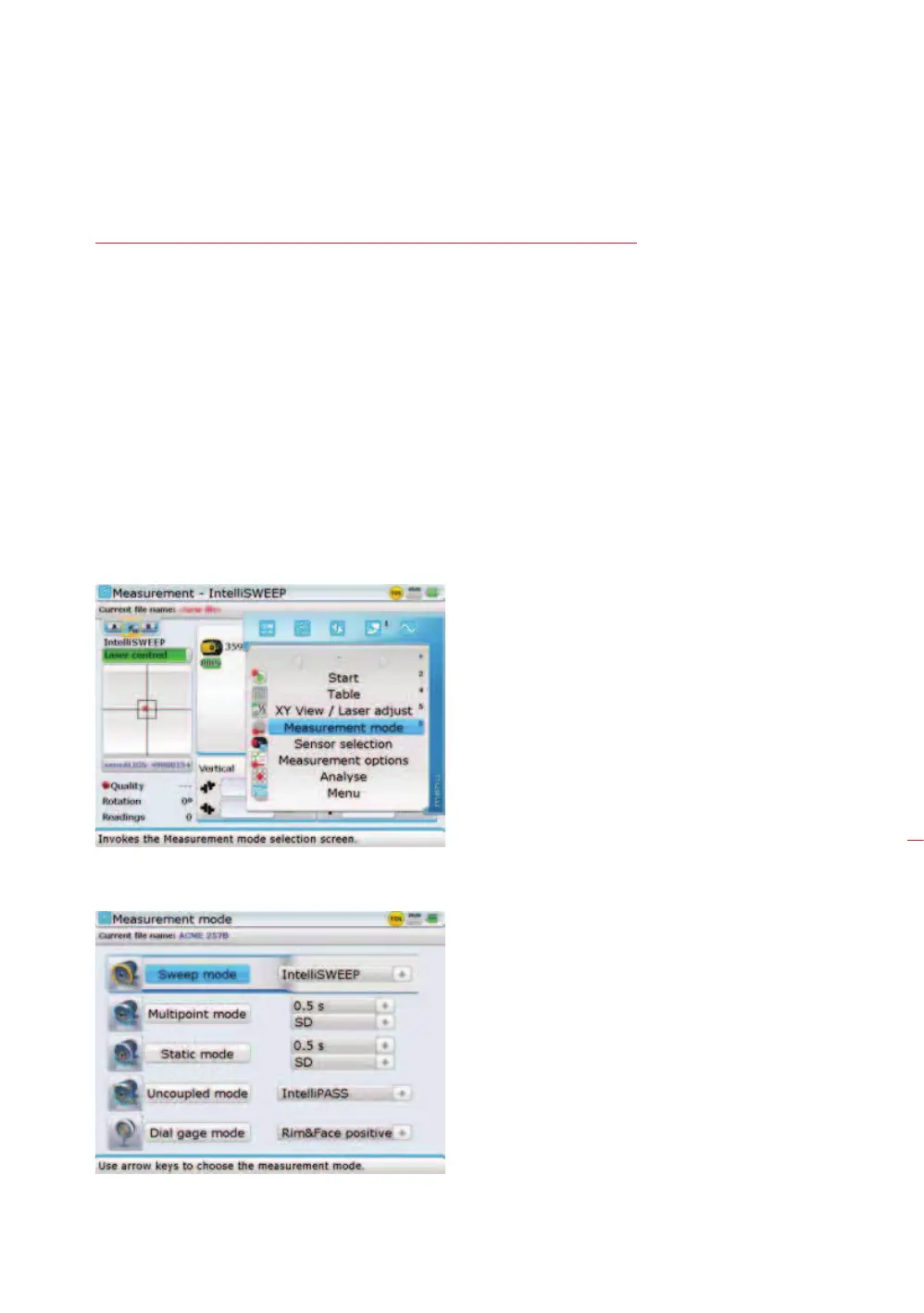

The measurement modes are accessed via the measurement screen. Press
m to
access the measurement screen. While on this screen, press
q. The context menu
appears. Use
f/g to highlight the context menu item ‘Measurement mode’.
Press
e to confirm selection.
IntelliSWEEP is discussed
in detail in section 5.1.1,
while IntelliPOINT and
IntelliPASS are discussed in
section 5.1.4 .
Note that in the Expert
licence version, the
“Measurement” screen
context menu items
‘Measurement mode’ and
‘Measurement options’
are displayed as sub menu
items clustered in the
context menu item ‘Mode/
Options’.
Use
f/g to select
the required measure
mode. Note that the cursor
can be moved along the
measurement modes only
when a measurement mode
is highlighted. Confirm
selection by pressing
e.
Measurement modes
