PRÜFTECHNIK ROTALIGN Ultra iS User Manual

ROTALIGN Ultra iS Shaft handbook
120
The three buttons are also available as context menu items in the “Vibration
measurement” screen.

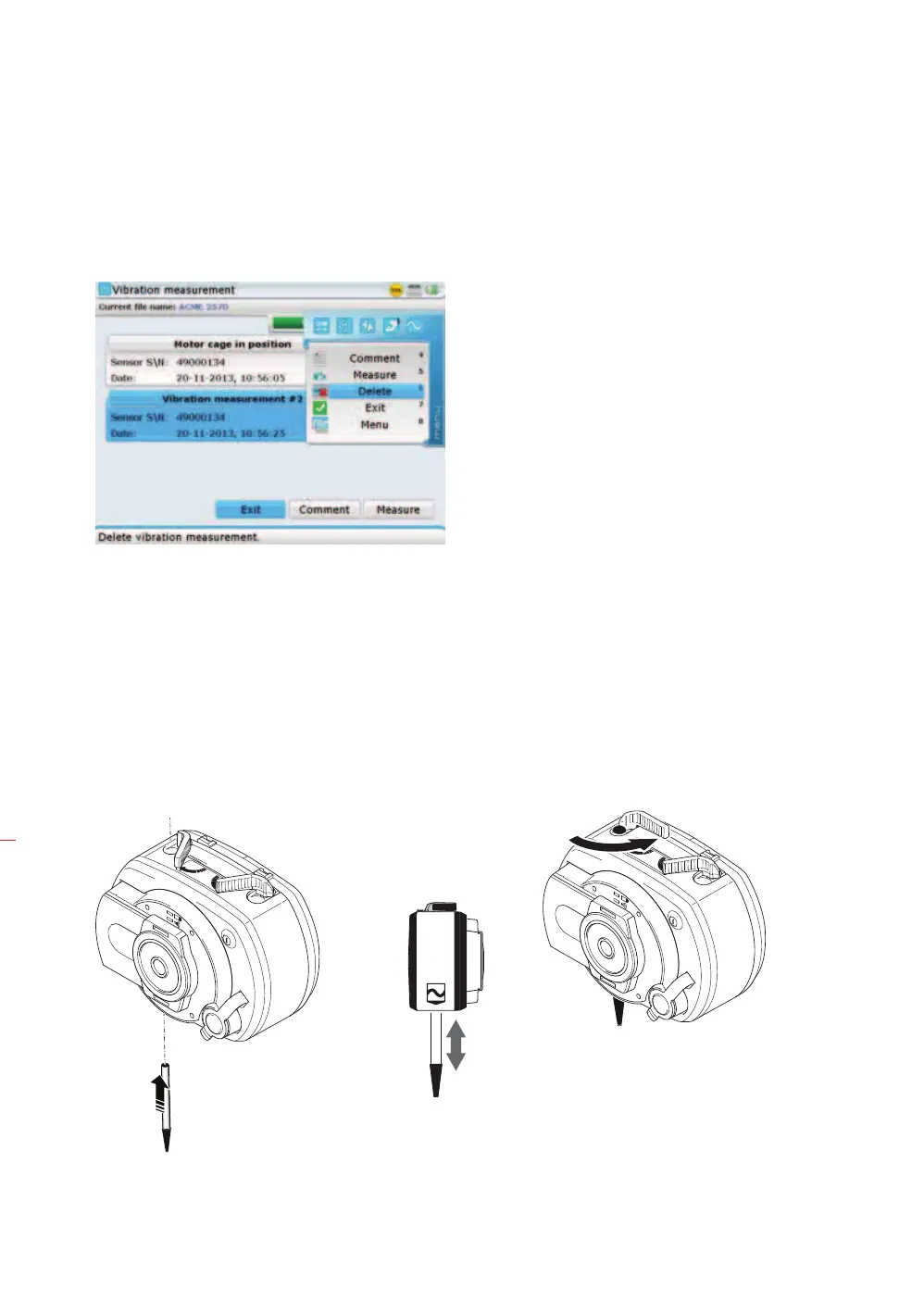

5.3.1 Using the vibration check probe
The above vibration velocity measurement may also be carried out using the vibration
check probe ALI 4.905.
Insert the probe in the sensALIGN sensor hole with a countersink such that the black
base of the probe tip rests firmly on the sensor housing. Use the clamping lever to
lock in the probe.
With the probe securely locked in, hold the probe firmly against the appropriate
measurement location on the machine until measurement is completed.
In addition to the three
button functions, the
context menu items also
include the item ‘Delete’
which may be used to
delete any unwanted
vibration measurement.
PRÜFTECHNIK
OP
E
N
PRÜFTECHNIK
OPE
N
Inserting the vibration
check probe in the
sensALIGN sensor hole
with a countersink
With the probe fully
inserted and resting on
the housing, push the
clamping lever to the
‘locked’ position.
The sinusoid symbol
indicates the sensALIGN
sensor hole where the
vibration check probe is to
be inserted.
ALI 4.905
sensALIGN
sensor
sensALIGN
sensor
