5.3 Measuring vibration
Using sensALIGN sensor only, it is now possible to measure any vibration that may
influence the alignment results. The vibration may be inherent in the machine train or
a result of external influence.

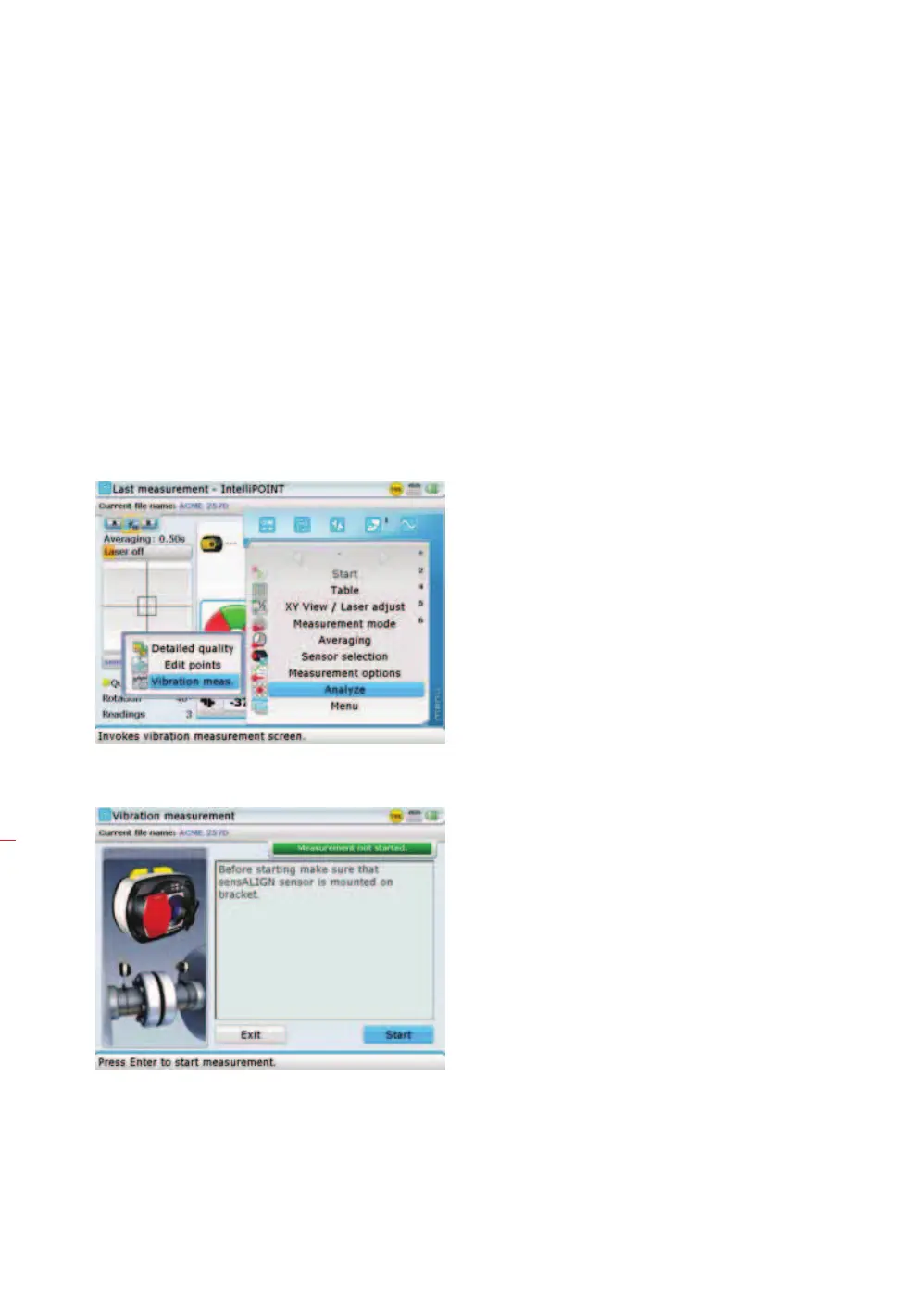

To measure the vibration, use is made of the “Measurement” screen submenu item
‘Vibration measurement’.
With sensALIGN sensor switched on and mounted on the machine, press
m to
access the “Measurement” screen. Press
q to display the context menu items. Use
the navigation keys and highlight ‘Analyze’ -> ‘Vibration meas.’.
Press
e to confirm selection. The “Vibration measurement” screen opens.
With the ‘Start’ button highlighted, press
e to begin the vibration measurement.
The vibration
measurement feature is
available in Advanced and
Expert Shaft levels only.
Note that for vibration
measurement, use may
be made of the vibration
check probe ALI 4.905.
The submenu item
‘Vibration meas.’ is selected
by first highlighting
the context menu item
‘Analyze’.
