ROTALIGN Ultra iS Shaft handbook
42
4.7.1 Coupling diameter
The coupling diameter can be obtained by measuring the circumference of the
coupling and dividing the value by π (3.142).
The default value is 100 mm (10” if set to US units). Should there be need to edit the
value, highlight the value using the navigation keys. Edit the value directly using the
data entry keys. Confirm the new value by pressing either
e or ß. The highlight
springs to the next dimension box automatically.
4.7.2 Sensor to coupling center
This is the distance between the “distance marking” on top of sensALIGN sensor and
the coupling center. Should there be need to edit the value, use the navigation keys
to highlight it, and edit it directly using the data entry keys.
4.7.3 RPM (revolutions per minute)
The default value is 1500 (1800 if set to US units). Should there be need to edit the
value, use the navigation keys to highlight it, and edit it directly using the data entry
keys.
4.7.4 Coupling center to front foot, right machine
This is the distance from the coupling center to the pair of feet on the right machine
nearest to the coupling.
4.7.5 Front foot to back foot, right machine
4.8 Machine properties

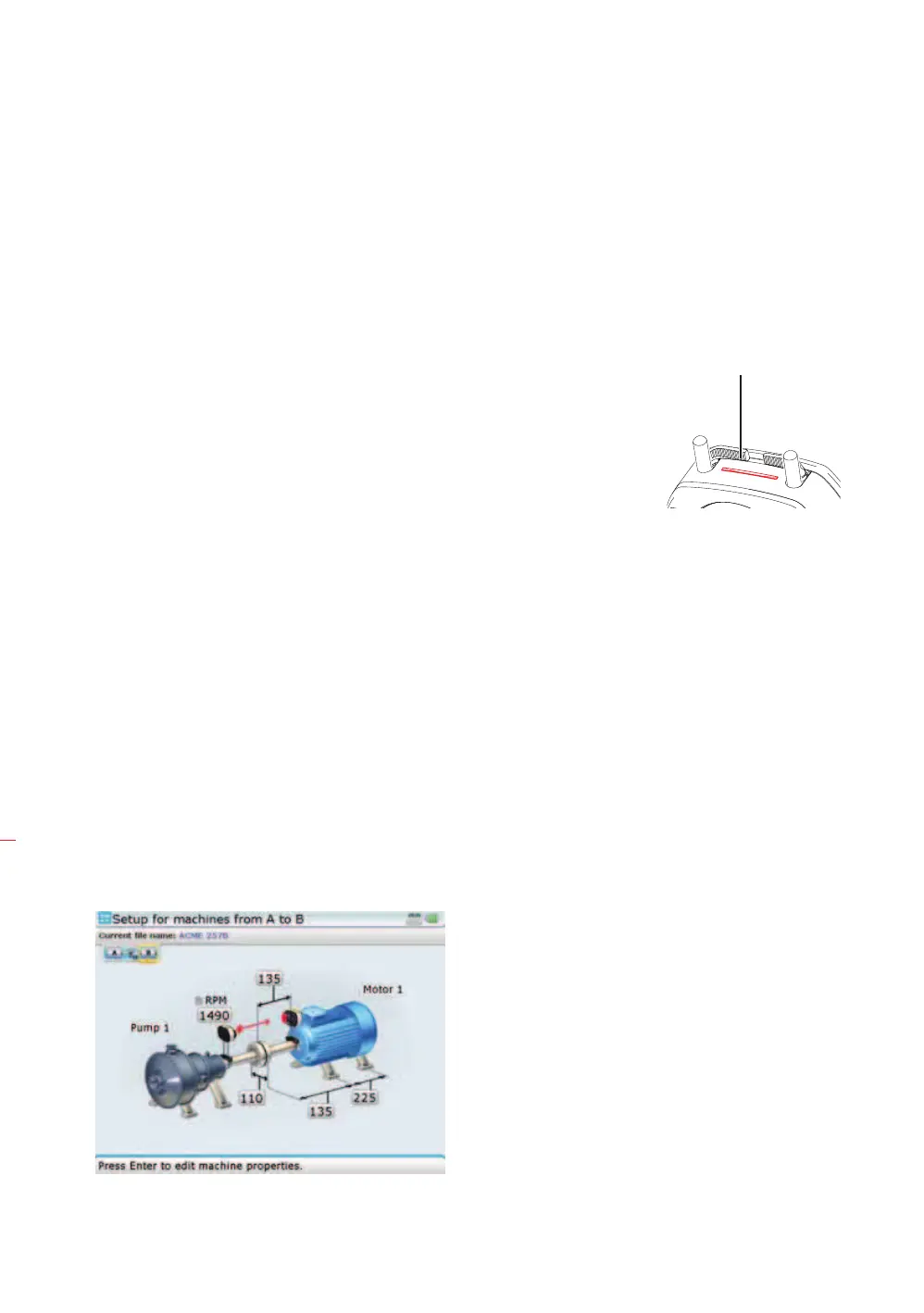

The set-up screen is used to enter machine dimensions as well as editing machine
properties.
Use
h/i to highlight machine to edit.
The distance marking
groove is practical for
attaching a tape measure
lip when determining
required machine train
dimensions.
Distance marking
