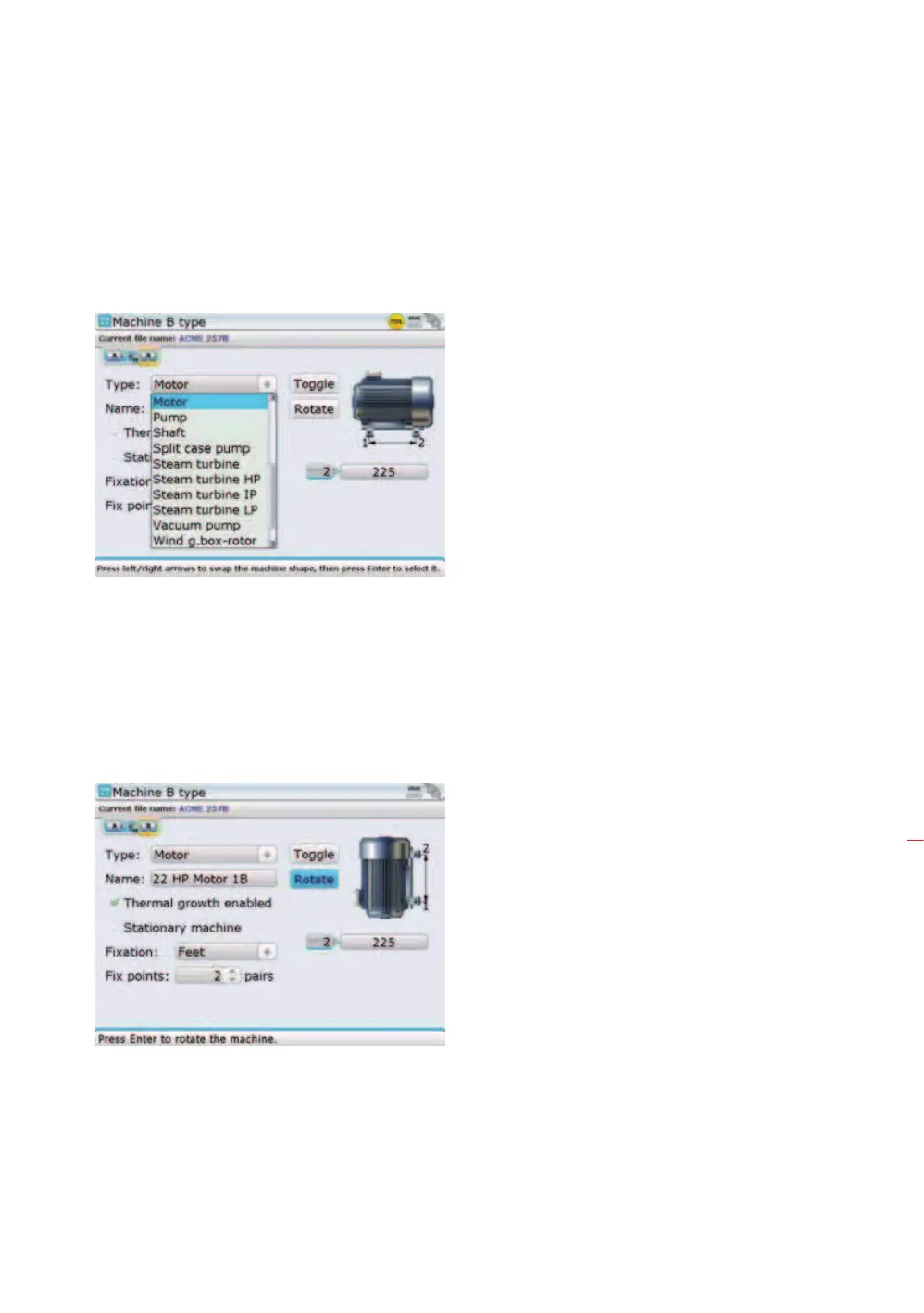

Press e to access machine properties. To select machine type, use the navigation
keys to highlight the ‘Type’ box then press
e. Select type of machine from the drop
down menu that appears using
f/g.
Confirm selection by pressing either
e or ß.
The orientation of the machine may be changed using the ‘Toggle’ and/or ‘Rotate’
buttons. Use the navigation buttons to highlight either button, confirming selection
by pressing
e. The toggle button is used change the orientation of the selected
machine along the shaft axes. The rotate button is used to change the orientation of
the entire machine train from horizontal to vertical orientation and vice versa.
The toggle button flips the
selected train element along
the shaft axes.
The rotate button changes
the entire machine train
orientation (from Horizontal
to Vertical and vice versa).
