ROTALIGN Ultra iS Shaft handbook
72

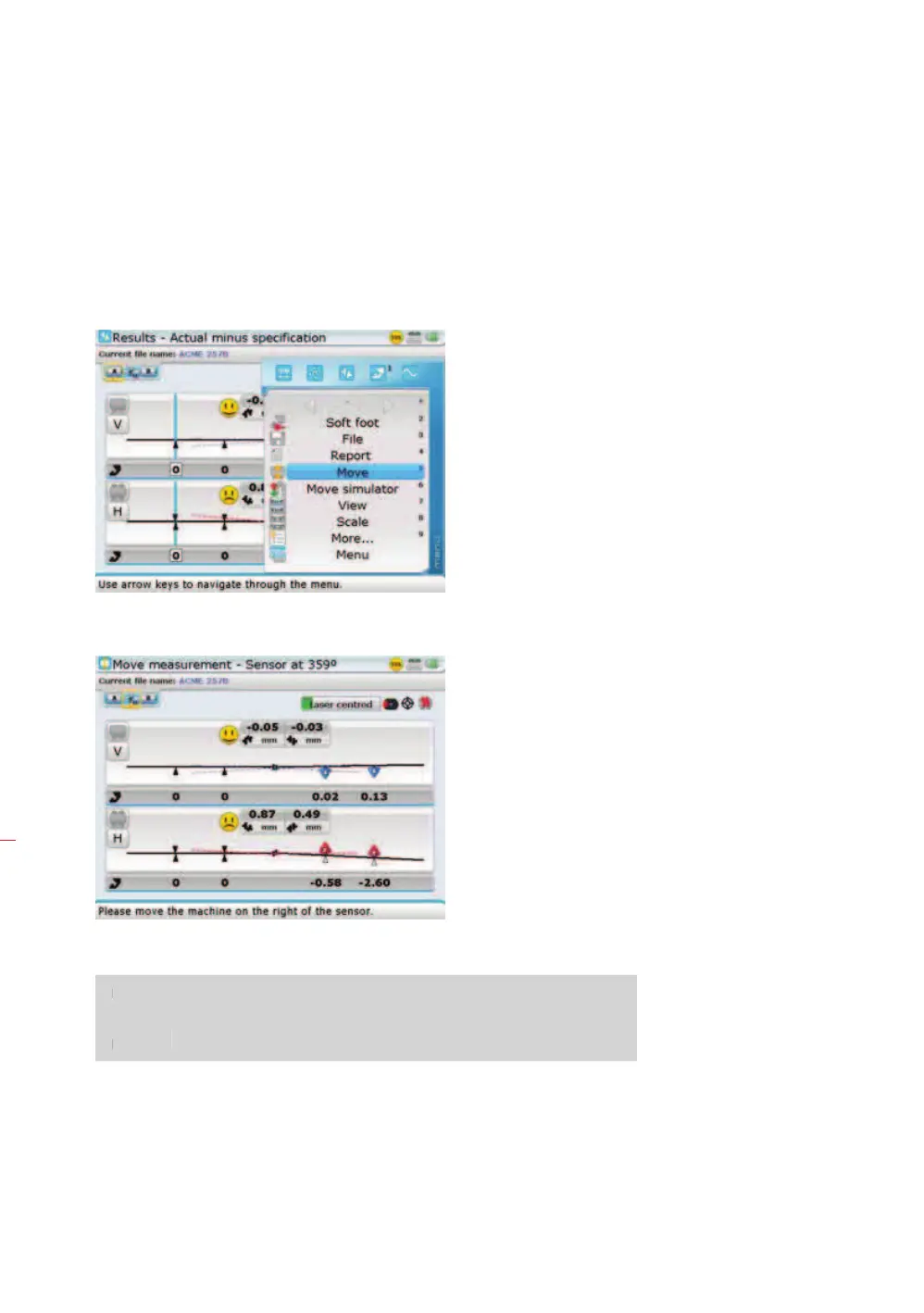

4.14.3 Horizontal and vertical live MOVE
The alignment corrections involving shimming and the lateral positioning of the
machines can be followed in a real-time interactive display. From the results screen,
press
q. The context menu appears. Use f/g to highlight ‘Move’.
Press
e to confirm selection and start live Move.
If the laser beam is centered proceed to carry out live horizontal and vertical Move.
If however the laser beam is not centered, use the “Move measurement” screen
context menu item ‘XY view’ (see section 5.2.7) to center the laser beam then
press
ß to go back to the results screen to proceed with live Move.
Live Move may be stopped via the “Move measurement” screen context menu item
‘Stop’. Use
f/g to highlight the menu item ‘Stop’ then confirm selection by
pressing
e.
Live horizontal and vertical
Move can be monitored
simultaneously. Move is
carried out in one direction
(say vertical shimming first)
then in the other direction
(say horizontal Move).
Note that if the machines
can be accessed from
both sides, then the sub
menu item ‘Rotate view’
[‘View’ -> ‘Rotate view’]
may be used to change
the orientation of the
machines on the display
screen. For details refer
to section 4.12.1.5 ‘Rotate
view’.
Note
If however the laser beam is not centered
,
use the “Move measurement” screen
context menu item ‘XY view’
(
see section 5.2.7
)
to center the laser beam then
press
ß to go
b
ac
k
to t
h
e resu
l
ts screen to procee
d
wit
h
l
ive Move.
