ROTALIGN
®
Ultra iS Shaft handbook
168
6.4.3 Measure
Since the flanged machines under consideration here are mounted horizontally, a
wider choice of measurement methods are available.
1. Press
m and proceed to center the laser beam. The desired measurement
method may be selected using the “Measurement screen” context menu item
‘Measurement mode’ (refer to section 5.1).
2. Depending on the measurement mode selected, rotate shafts and take
measurement as described in section 4.12 (for intelliSWEEP measurement mode)
or in section 5.1 ( for other measurement modes).
6.4.4 Evaluating results
1. After finishing taking measurements, press
RES
to evaluate results.
2. To view the flange shimming details, place the cursor on the movable element,
then use the sub menu item ‘Details’ to display the shimming details. (This step
has been described fully in section 6.3.5.)

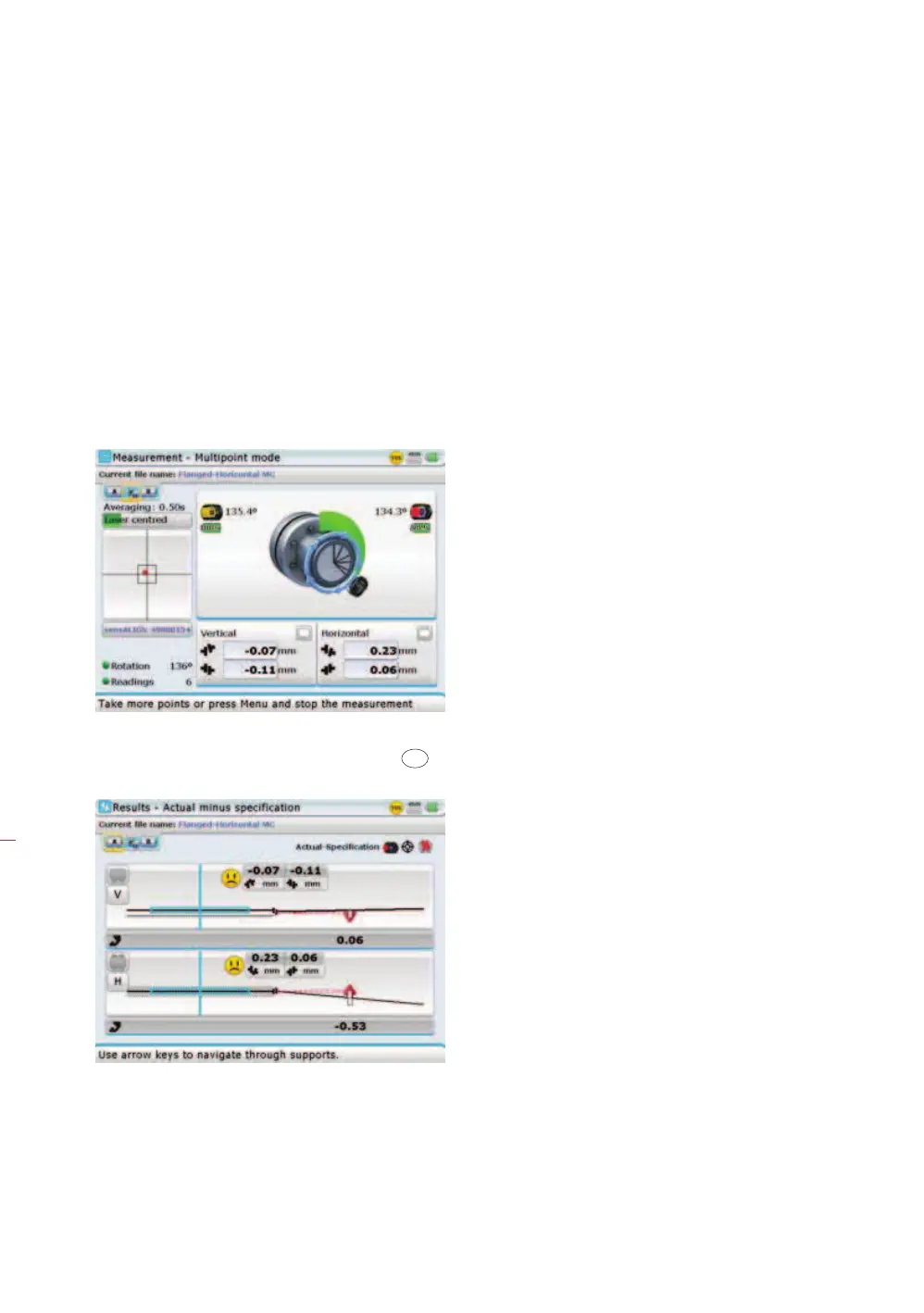

In this example, the
Multipoint measurement
mode has been used.
