PRÜFTECHNIK ROTALIGN Ultra iS User Manual

ROTALIGN Ultra iS Shaft handbook
46

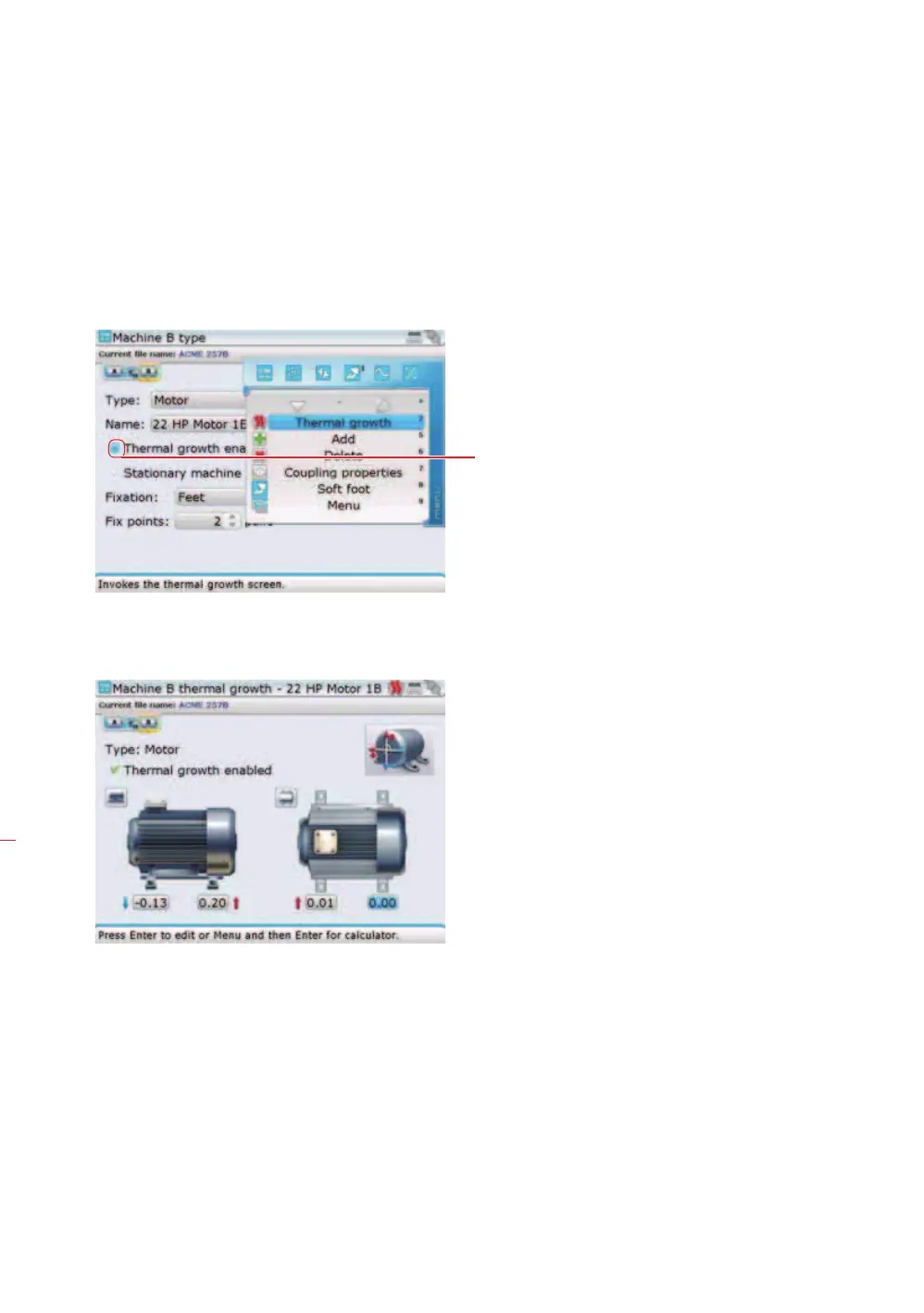

Thermal growth values can be entered only when the type of mounting is either
machine feet or bearing or V-shaped support, and ‘Thermal growth’ enabled. To enter
thermal growth values press
q while in the “Machine type” screen. The context
menu appears.
Press
2 to access the thermal growth screen. Alternatively, use either f/g
to highlight ‘Thermal growth’, confirming selection by pressing
e.
Use
h/i to cycle through the feet positions, highlighting the value boxes. When a
value box is highlighted, enter thermal growth value directly using the data entry keys.
Confirm entry by pressing either
e or ß.
Thermal growth values are
activated when the ‘thermal
growth enabled’ box is
checked.
Thermal growth values may
be entered directly using the
data entry keys.
