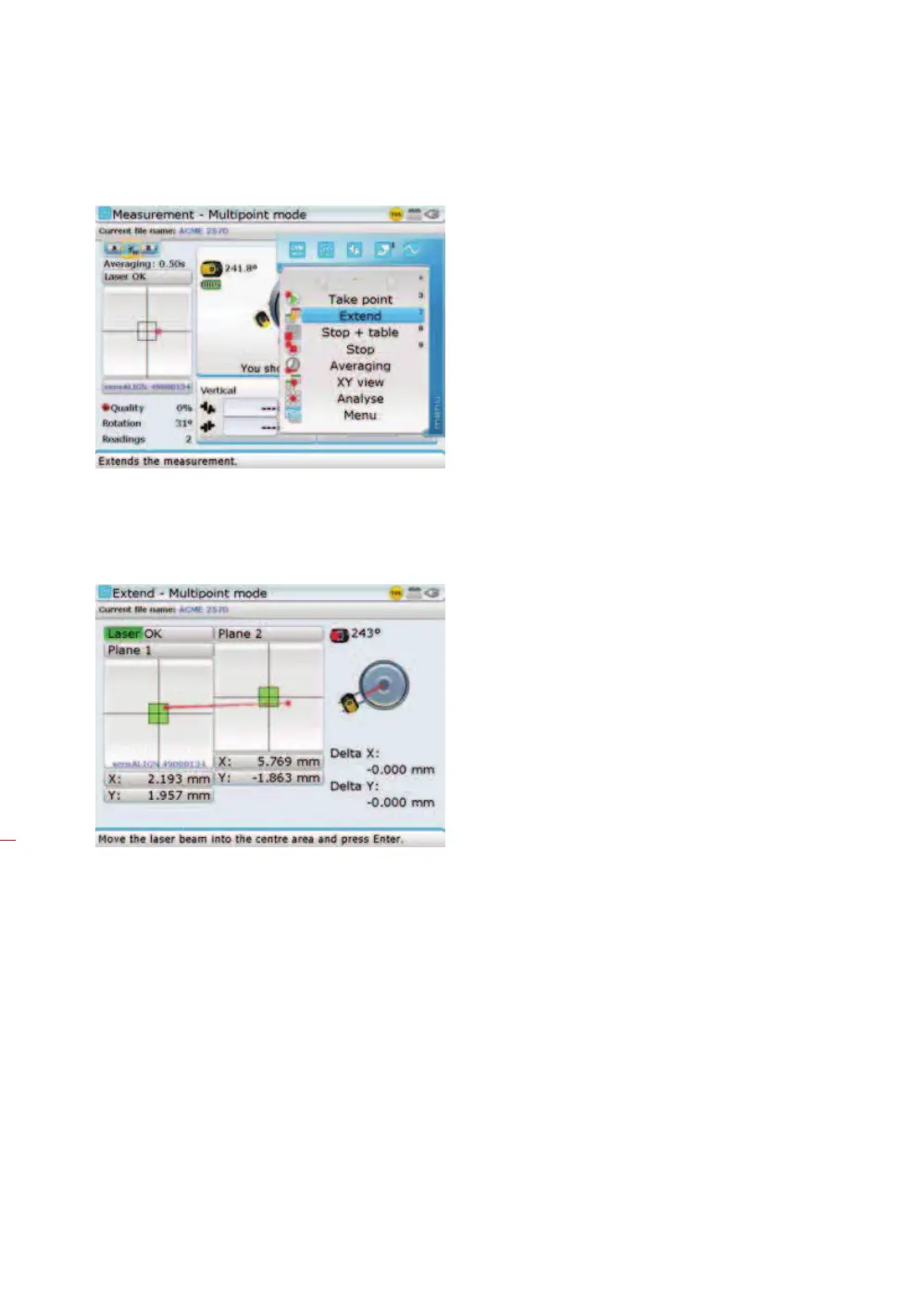

2. Use f/g to highlight ‘Extend’, then press e. The program holds up
measurement and switches to ‘XY View’ in the “Extend” screen. The current
beam position is automatically taken as the starting point for range extension.
3. Readjust the beam into the target squares using the two yellow sensALIGN laser
horizontal and vertical position thumbwheels then press
e or ß.
The adjusted beam position is taken as the end point of displacement.
4. Continue measurement as before, rotating the shafts and pressing
e to take
measurement at the desired positions.
ROTALIGN Ultra iS Shaft program includes the displacement of beam readjust-
ment in the alignment calculations.
