109
The “XY View” screen context menu items include: ‘Sensor selection’, ‘Averaging’,
‘Trace on’, ‘Set to zero’/’Set to absolute’, ‘Sensor version check’, ‘Laser version check’
and ‘Upgrade firmware’.
Trace on literally traces a path showing the laser dot movement on both planes.
Set to zero / Set to absolute toggles X,Y values of the laser beam dot on both
planes between 0,0 and the absolute values. The laser beam dot positions may be set
to 0,0 to act as a reference.
Sensor version check is active when the sensor is on and initialized. It is used to
display the sensor firmware version.
Laser version check is active only when the laser is on and initialized. It is used to
display the laser firmware version.
Upgrade firmware is used to start the built-in sensor and laser firmware update
wizard.

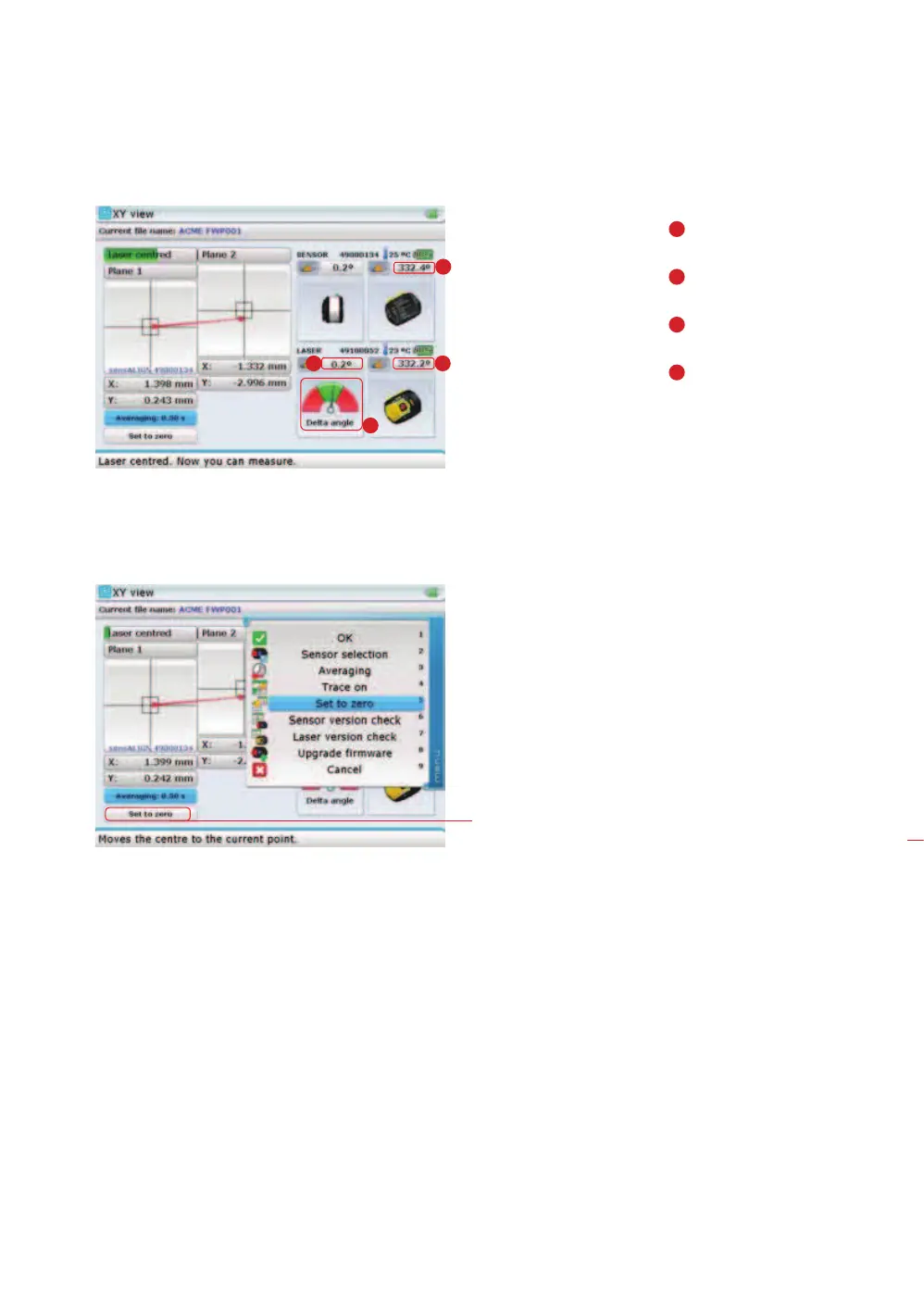

The “XY View” screen
displays an on-screen
delta angle indicator
which shows the angular
position difference between
sensALIGN sensor and
sensALIGN laser. This aids
the laser set-up procedure.
1
sensALIGN sensor
angular position
2
sensALIGN laser
angular position
3
Delta angle value
1
– 2 = 3
4
Delta angle on-screen
indicator – the laser beam
should be adjusted such
that the needle rests
preferably in the middle
of the green sector.
The delta angle feature is
available in Advanced and
Expert Shaft levels only.
With the ‘Set to zero’
button highlighted, pressing
e toggles between the
0,0 values and the absolute
values.
Note that the measurement
sensor and averaging may
also be set on this screen.
‘Set to zero’ button
XY View
1
2
4
3
