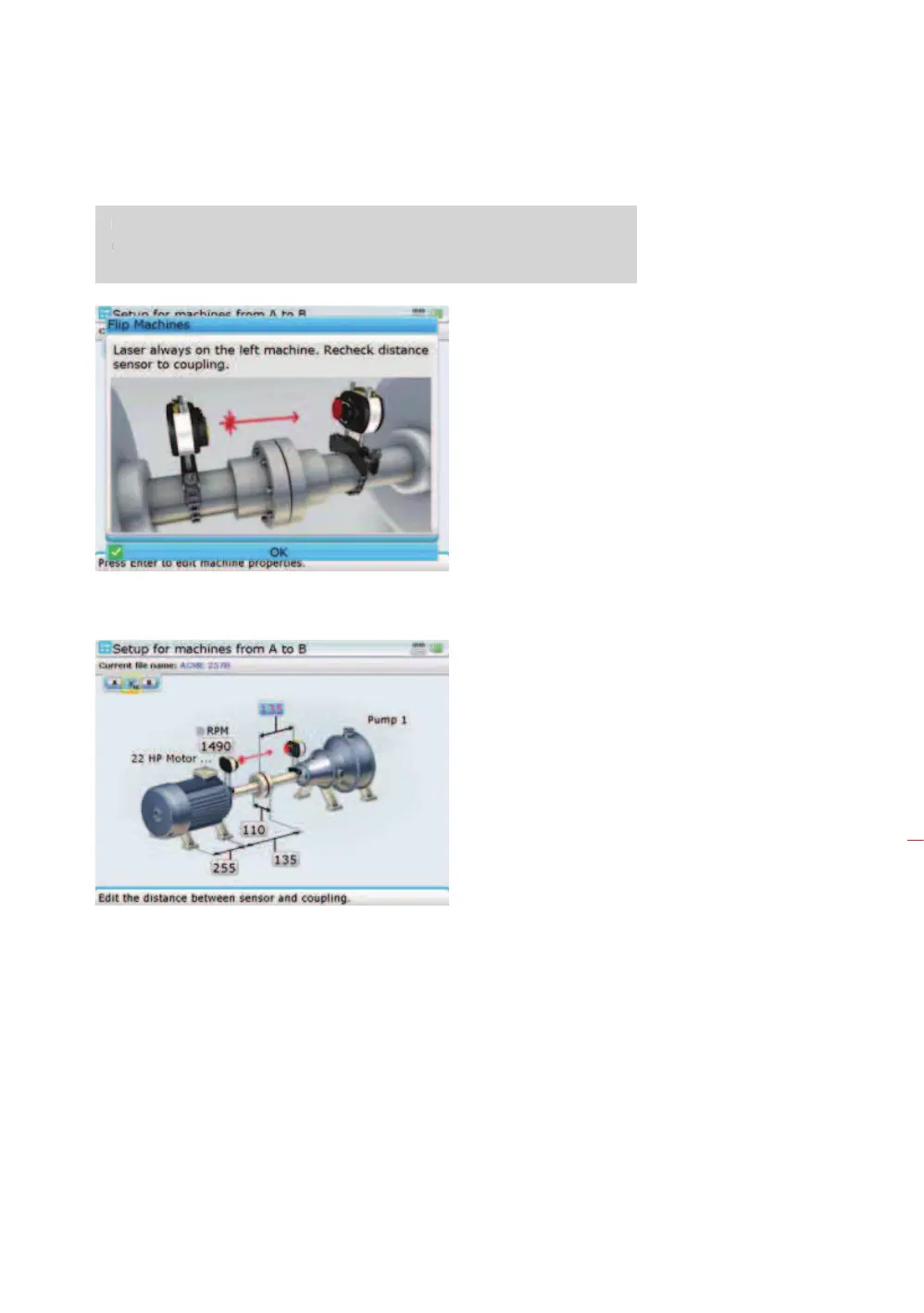

The hint reminds the user that the laser must always be mounted on the left
machine as viewed by the user and sensor to coupling center distance must be
checked again.
3. Press
e or ß to confirm flipping machines.
4. Ensure the laser is mounted on the machine on the left, then check the distance
between the sensor to coupling center.
Note
T
he hint reminds the user that the laser must always be mounted on the le
f
t
m
ac
h
ine as viewe
d
b
y t
h
e user an
d
sensor to coup
l
ing center
d
istance must
b
e
checked again.
The pump which is the
stationary machine has now
been flipped to the right
hand side but still remains
the stationary machine.
Horizontal shaft alignment
