ROTALIGN Ultra iS Shaft handbook
62

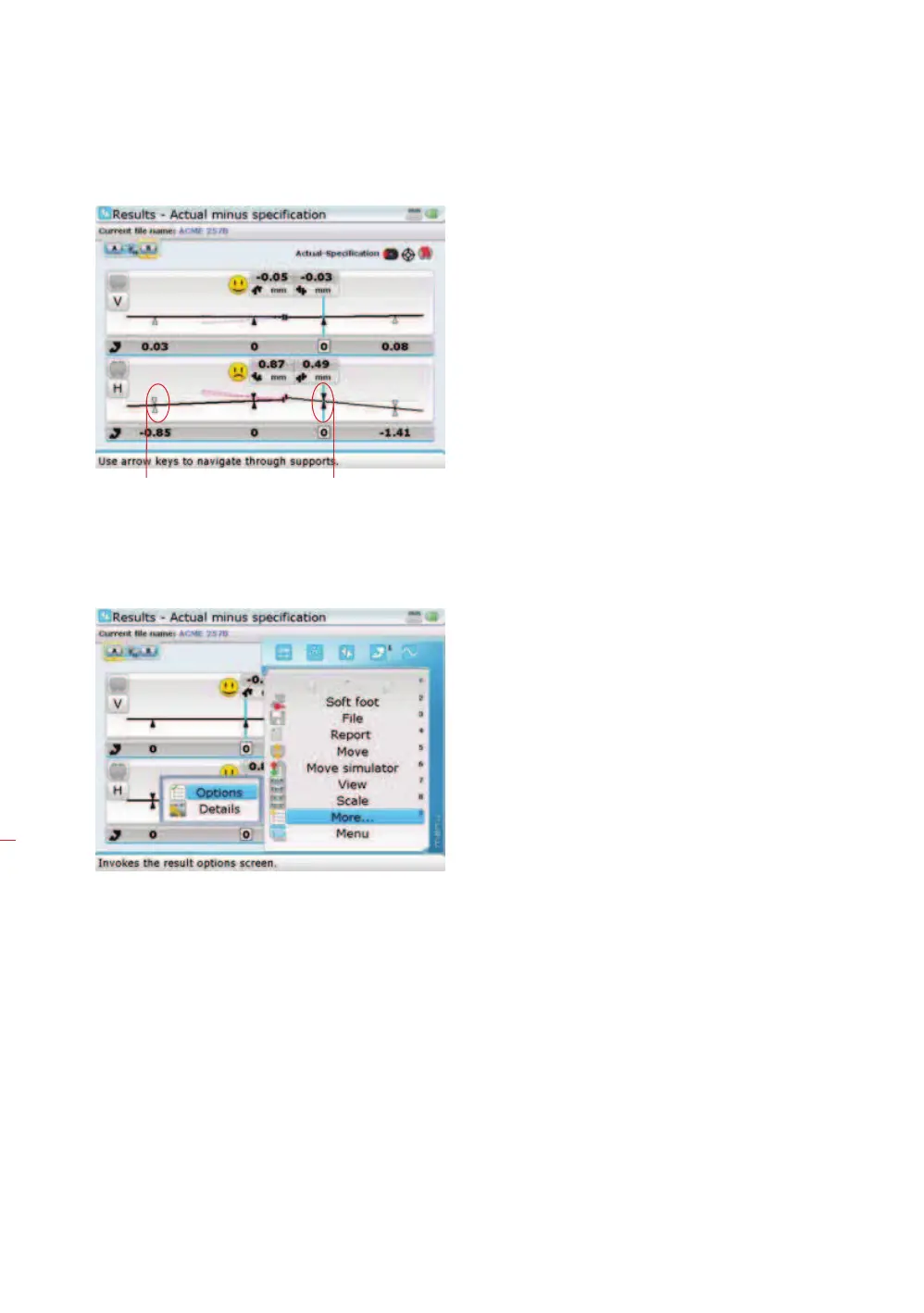

4.13.1 Results screen context menu items
The context menu shown below appears when
q is pressed while in results screen.
The context menu items are scrolled using
f/g. Item selection is confirmed
by pressing
e. Alternatively, access the numbered menu items directly by pressing
the corresponding data entry key.
Note: If all feet in the
machine train are unfixed,
an optimized centerline
through the entire train
will be displayed. If only
one pair of feet is fixed,
an optimized centerline
will be displayed for all
remaining unfixed feet.
Note that machine feet
are displayed in the
results screen only when
the ‘Stationary machine’
box is checked in the
“Machine type” screen.
To designate any pair of feet
fixed, place the blue vertical
cursor line on the feet pair
using
h/i. Press e
to fix the selected pair of
feet. The feet position is
highlighted black. To unfix
any pair of feet, place the
cursor line on the static pair
of feet pair using
h/i,
then press
e.
The following context menu
items contain sub-menu
items that are accessed
using
h: ‘File’, ‘View’,
‘Scale’ and ‘More...’.
Unfixed feet pair Static feet pair
