PRÜFTECHNIK ROTALIGN Ultra iS User Manual

ROTALIGN Ultra iS Shaft handbook
76
c) Use f/g to select a location to save the file. Press e then proceed
to enter the file name using the data entry keys. Confirm file name by pressing
either
e or ß.
d) Measurement files may also be saved from the set-up screen. Press
q while on
set-up screen. The context menu appears. Use the navigation keys to highlight
‘File’ followed by ‘Save’.
Press
e to confirm selection. The “Save document as” screen appears and file
may be saved as described previously in step (c) above.

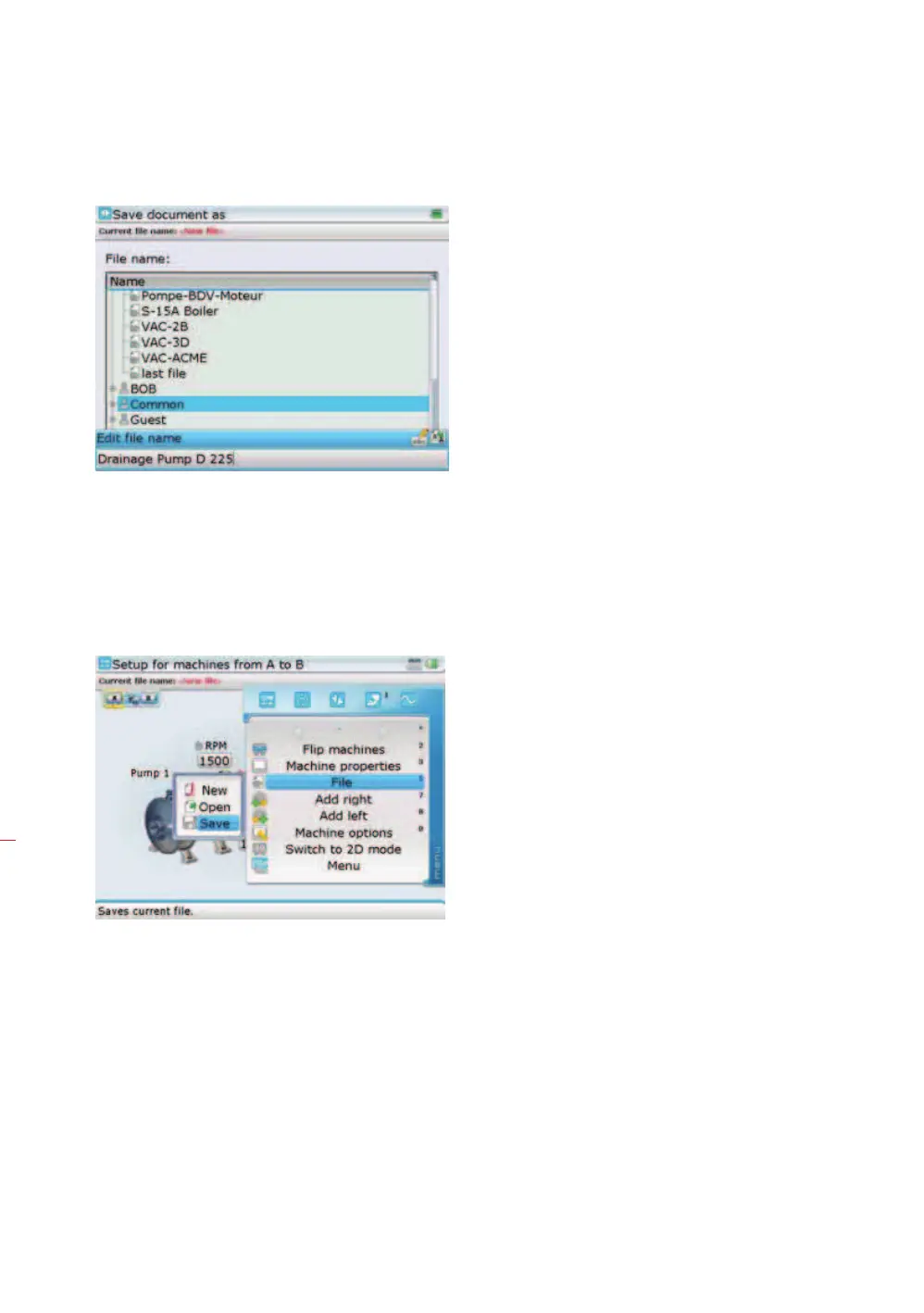

In this example, the
measurement file ‘Drainage
Pump D225’ has been saved
in the folder ‘Common’.
Parent folders are created
in ‘User Accounts’ which
is accessed through
‘Configuration’ within the
program manager (see
section 8.2).
