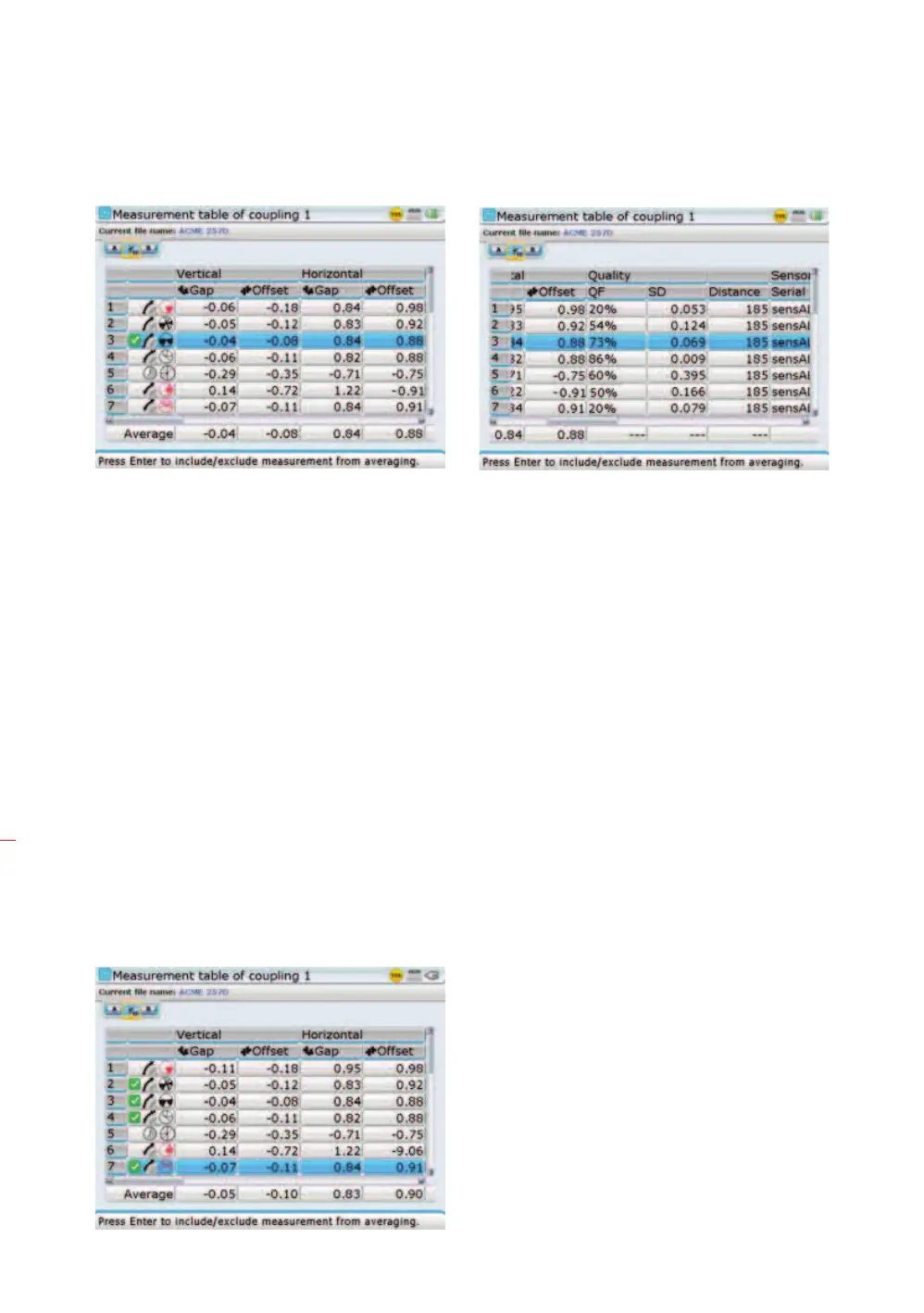

The measurement table is scrolled downwards, upwards and sideways using the
navigation keys. The contents of the measurement table from left to right include the
measurement position (indicated by nos. 1,2,3 ...), measurement mode (or live move)
– indicated by symbols, vertical and horizontal coupling values, measurement quality
factor, standard deviation, distance from coupling center to sensor, used sensALIGN
sensor serial number, the duration of the used averaging, use of the extend range,
direction of shaft rotation during measurement, date and time when a particular
measurement was taken, labels used, calibration due dates for the sensALIGN sensor
used, and used sensALIGN laser serial number.
Up to 50 measurements can be stored in a measurement table. Changes made in the
set-up screen affect only later results, not earlier ones.
Multiple measurement sets can be averaged to achieve more representative results.
This feature is particularly useful for uncoupled shafts or when bearing play is consid-
erable. To calculate this average, proceed as follows:
1. Use
f/g to highlight a measurement for inclusion in the average.
2. Press
e to select the measurement. A check mark appears next to the
measurement position indicating that the measurement has been included in
calculating the average.
3. Repeat steps 1 and 2 for all other measurements to be included.
