Function Variants Discharge Scale

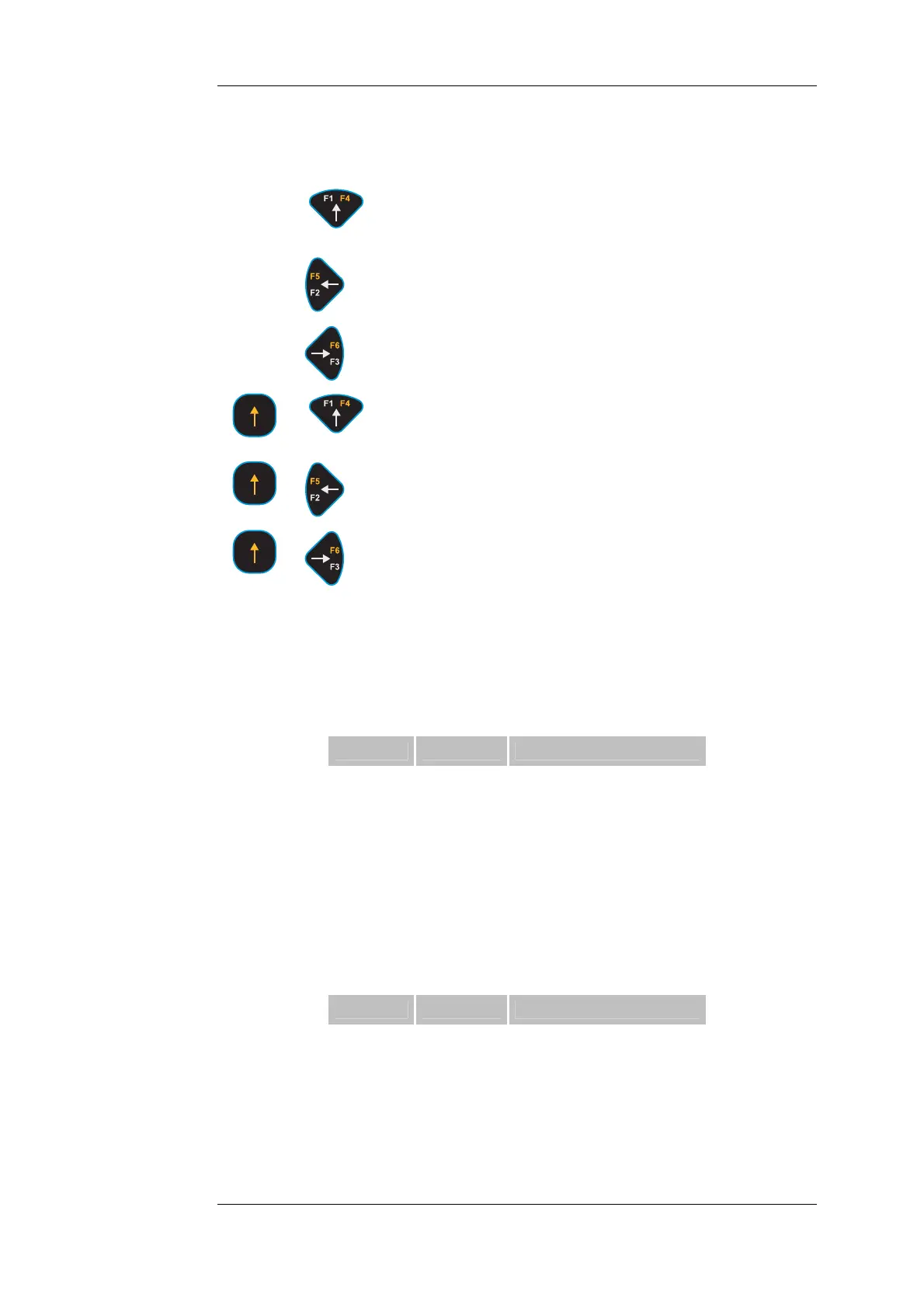

6.3.2 Function Keys
With the Discharge Scale, the function keys are assigned as follows:
'Start Filling'
F1 key: 'Start'
'Stop Filling'
F2 key: 'Stop'
Resume filling with F1 = Start.
nter setpoint' 'Select material, e
F3 key: 'MatSet'
'
l'
'Print Sub-total
F4 key: 'PrintBa
'Abort Filling'
F5 key: 'Abort'
'Print Total/Clear Balance'
F6 key: 'PrinTot'
6.3.3 Inputs and tpu
Inputs:
Ou ts
Phys. Signal Function:
In 1: PLS-DIn1 Start
In 3: PLS-DIn3 bort
In 4: PLS-DIn4 it event message
PLS-DIn5 Print Total/Clear Balance
s:
In 2: PLS-DIn2 Stop
A
Qu
n/a
Output
Phys. Signal Function:
Out 1: PLS-DOut1 Full feed
Out 2: PLS-DOut2 Dribble feed
PLS-DOut3Out 3: Refill Contact
Out 4: PLS-DOut4 Ready to operate (no fault)
AnalogOut n/a Depending on choice
DISOMAT
®
Opus – Operating Manual 0630 BV-H2313 GB
© Schenck Process GmbH, Darmstadt - 103 -
