Normal Mode Functionality in Menu Tree
4.2.4.2 Fct. 52:Display Version
This function shows characteristic information for your unit. This information is
important if you have questions for the manufacturer because this is the only way that
the service staff advising you knows what equipment you have.
Operating sequence:
When you press the [ENTER] button, information appears in the display in a
continuous
*)

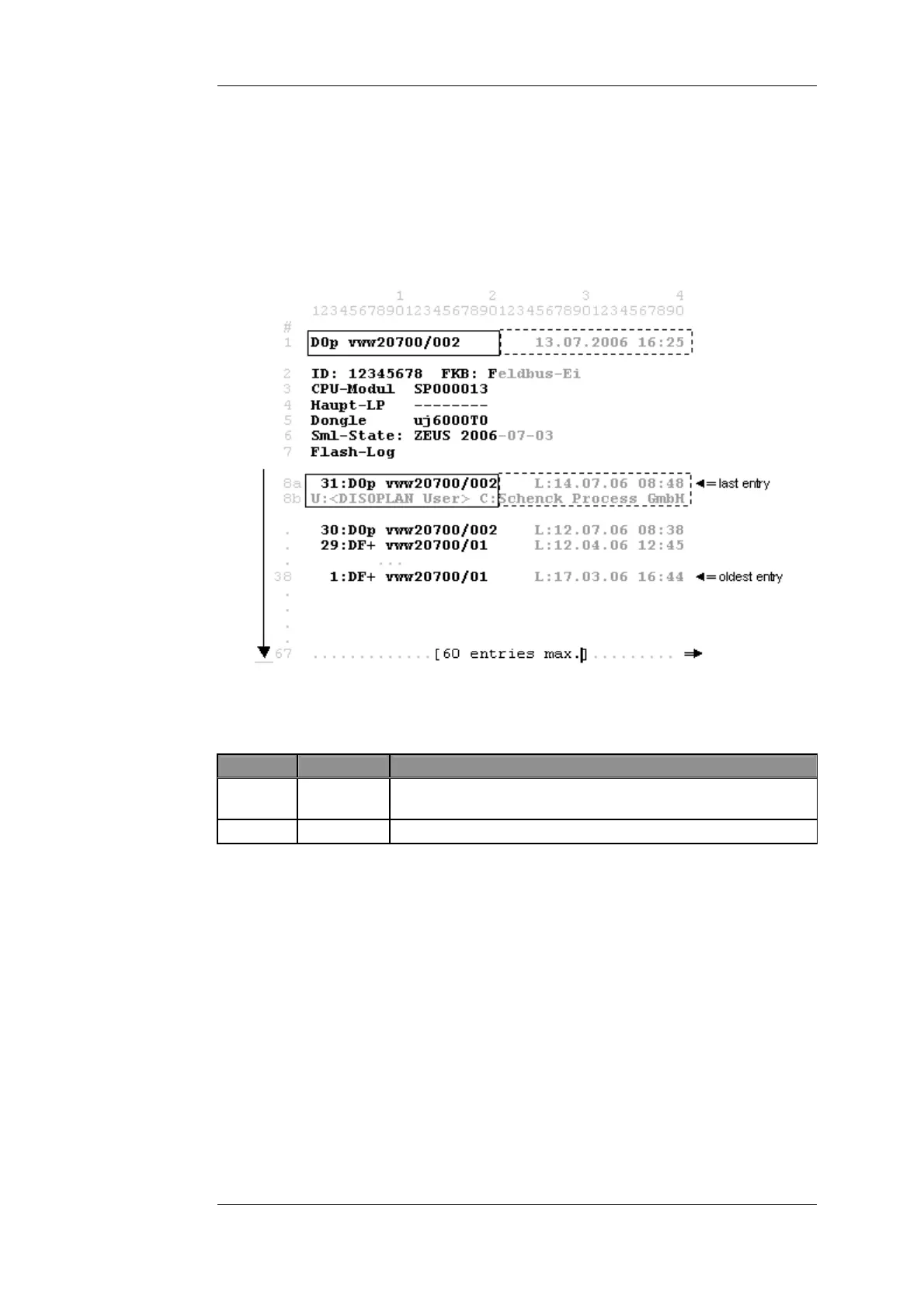

sequence that is shown for a couple of seconds such as
*) You can use the [ENTER] or [OK] buttons to switch more quickly to the next inputs.
The information provided:
Entry # Line number Display
1 ... 6 1
The version designations of the software, hardware and
serial number, etc.
7 ... 67 2
Flash log file (max. of 60 entries)
Navigation through the information memory :
You can store information including as many as 40 or 80 characters per step, although
only the first 20 characters are shown in the display.
You have to interrupt the continuous routine to show the rest of the characters by
pressing any direction button at the desired point. Now you can use the [RIGHT arrow]
and [LEFT arrow] buttons to gradually overlay the entire text into the display.
Each entry of the flash log file consists of 2 lines with up to 40 characters. You can
use the [DOWN arrow] and [UP arrow] buttons to switch back and forth between these
two lines.
You can use the [ENTER] or [OK] buttons to resume the continuous display.
DISOMAT
®
Opus – Operating Manual 0630 BV-H2313 GB
© Schenck Process GmbH, Darmstadt - 33 -
