3.2.3 Keyboard
A) 'DISOMAT Opus'

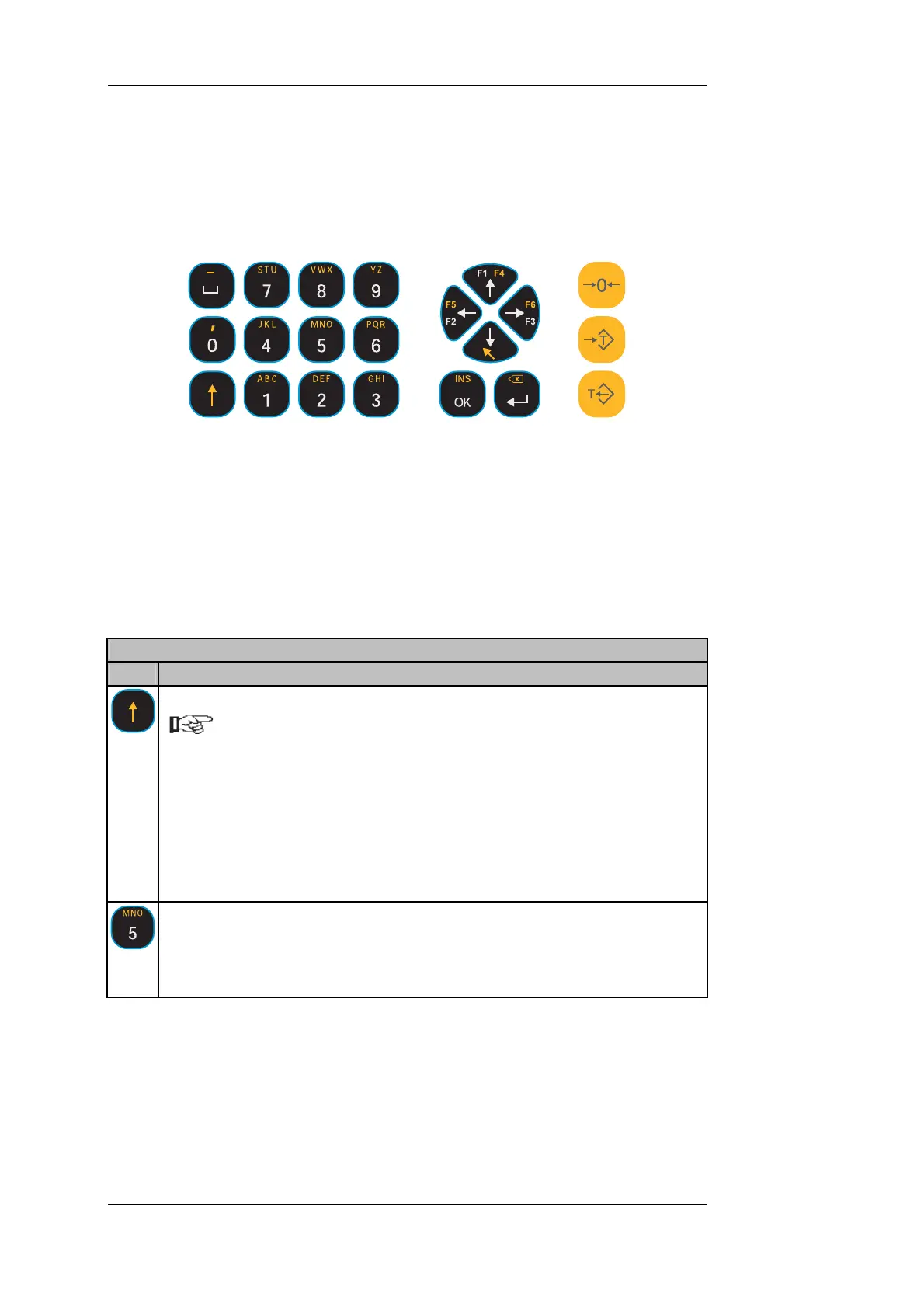

In the DISOMAT keyboard, there are three blocks of keys, i.e. 'input block', 'control
block' and 'operating block' (from left to right):
• The input block keys serve i.a. for input of figures, letters (capital and lower-
case) and signs.
• The control block keys are used for data input, navigation in menu tree and
as function keys.
• The operating block keys are used to operate the scale.
The tables below reflect all possible keys, or key combinations. It may be that a
certain key or key combination is defined only in the one or other operating state.
Input Block Key Functions
Key Function
[SHIFT]:
Use of this key is indicated in this documentation by the symbol :
[SHIFT] + ['Key'].
Character input: The character set that can be keyed is distributed over 2
levels. Please keep the [SHIFT] button pressed to key in characters of the
second level. Also refer to the manual BV-H2313, section on 'Entering
Characters via the Input Block'.
Calling up functions: Each button of the control block is assigned a second
function. Please also keep the [SHIFT] button pressed before pressing the
desired button.
[<Alphanumerical characters>]:
If the operator requests inputs (such as strings), numbers(0...9), upper-case
letters (A...Z), lower-case letters (a...z) and special characters(such as
commas or space) can be keyed in with these buttons also using the [SHIFT]
button.
BV-H2313 GB 0630 DISOMAT
®
Opus – Operating Manual
- 12 - © Schenck Process GmbH, Darmstadt
