Function Variants Weighbridge ZEUS

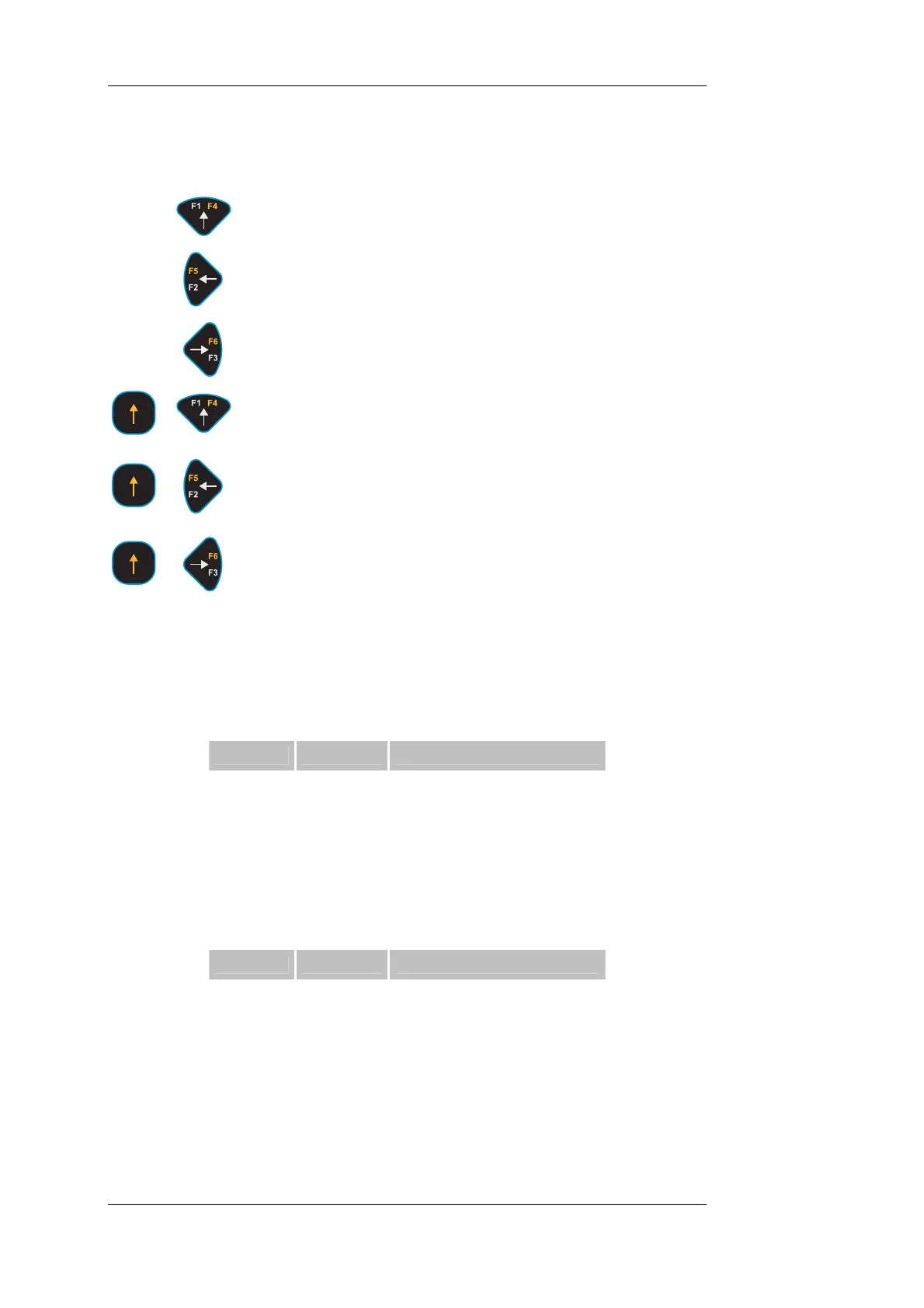

6.6.4 Function Keys
With the ZEUS road/rail weigh bridge configuration, function keys are assigned as
follows
'First Weighing'
F1 key: 'First Weighing'
'Second Weighing'
F2 key: 'Second Weighing'
'Perform Weighing Operation'
F3 key: 'Single Weighing'
'Repeat Printing of Weighing Report'
F4 key: 'PrintRepeat'
'Record Weight Without Veh
F5 key: 'External Weighing'
icle Empty Weight'
Used, e.g. to check vehicle for overload.
'Switch Exit Signal to GREEN without weighing'
F6 key: 'Exit Free'
6.6.5 Inputs and Outputs
:
Inputs
Phys. Signal Function:
In 1: PLS-DIn1 n/a
In 2: PLS-DIn2 n/a
In 3: PLS-DIn3 n/a
In 4: PLS-DIn4 n/a
s: Output
Phys. Signal Function:
Out 1: PLS-DOut1 Exit signal, RED light
Out 2: PLS-DOut2 Exit signal, GREEN light
Out 3: PLS-DOut3 Entrance signal, RED light
Out 4: PLS-DOut4 N light
AnalogOut
n/a ending on choice
Entrance signal, GREE
Dep
BV-H2313 GB 0630 DISOMAT
®
Opus – Operating Manual
- 120 - © Schenck Process GmbH, Darmstadt
