Function Variants Discharge Scale

Parameter Name Default Required

Setting

Recommended

Setting

Comments

Block 'PLS-AOut'

Reference value 20 = MAX

reference value

Scaling the parallel output of the analog

output to the PLS analog output 1.

Block 'Analog Output'

Analog output OFF 4-20 mA

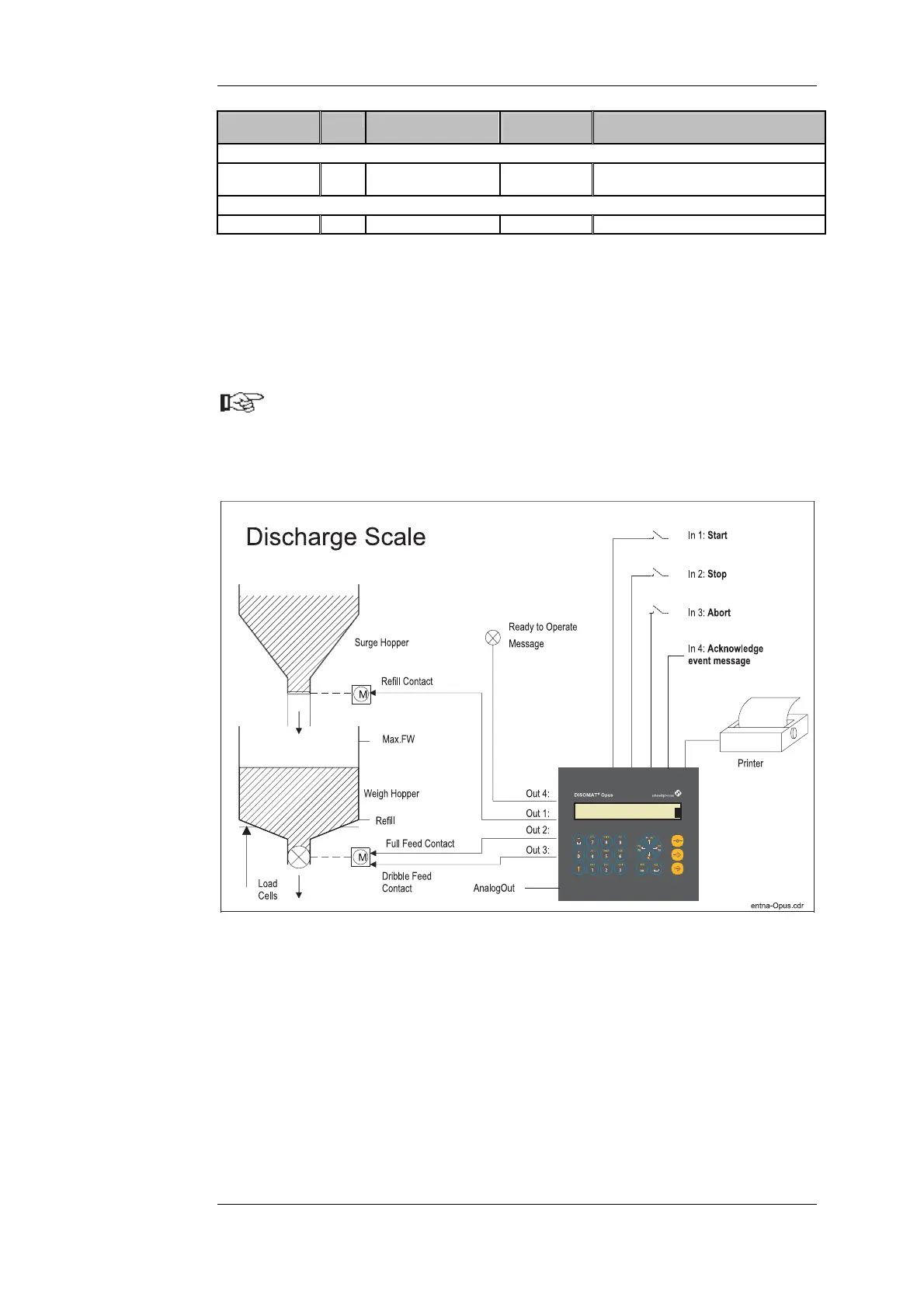

6.3 Discharge Scale

6.3.1 General Functioning

Before operating a discharge scale, make yourself familiar with the

general functioning of your DISOMAT.

The discharge scale is designed to batch material out of a weigh hopper. Single and

multiple discharge operations are possible.

Filling

DISOMAT controls a fill unit for discharging in full feed and dribble feed until setpoint

is reached. the amount fed out is checked for tolerance; if required, make-up filling

takes place. In case of overfill, an event message is output.

To start filling,

• Press F1 key, or

• Set input contact 1, or

• Send EDP command or

• PLS contact.

DISOMAT

Opus – Operating Manual 0630 BV-H2313 GB
