9.10
SEL-734 Meter Instruction Manual Date Code 20090730
Settings
Meter Word Bits (Used in SEL
OGIC Control Equations)
44 7 SC09CU SELOGIC Counter 09, count up
6 SC10CU SEL
OGIC Counter 10, count up
5 SC11CU SEL
OGIC Counter 11, count up
4 SC12CU SEL
OGIC Counter 12, count up
3 SC13CU SEL
OGIC Counter 13, count up
2 SC14CU SEL
OGIC Counter 14, count up
1 SC15CU SEL
OGIC Counter 15, count up
0 SC16CU SEL
OGIC Counter 16, count up
45 7 SC09CD SEL
OGIC Counter 09, count down
6 SC10CD SEL
OGIC Counter 10, count down
5 SC11CD SEL
OGIC Counter 11, count down
4 SC12CD SEL
OGIC Counter 12, count down
3 SC13CD SEL
OGIC Counter 13, count down
2 SC14CD SEL
OGIC Counter 14, count down
1 SC15CD SEL
OGIC Counter 15, count down
0 SC16CD SEL
OGIC Counter 16, count down

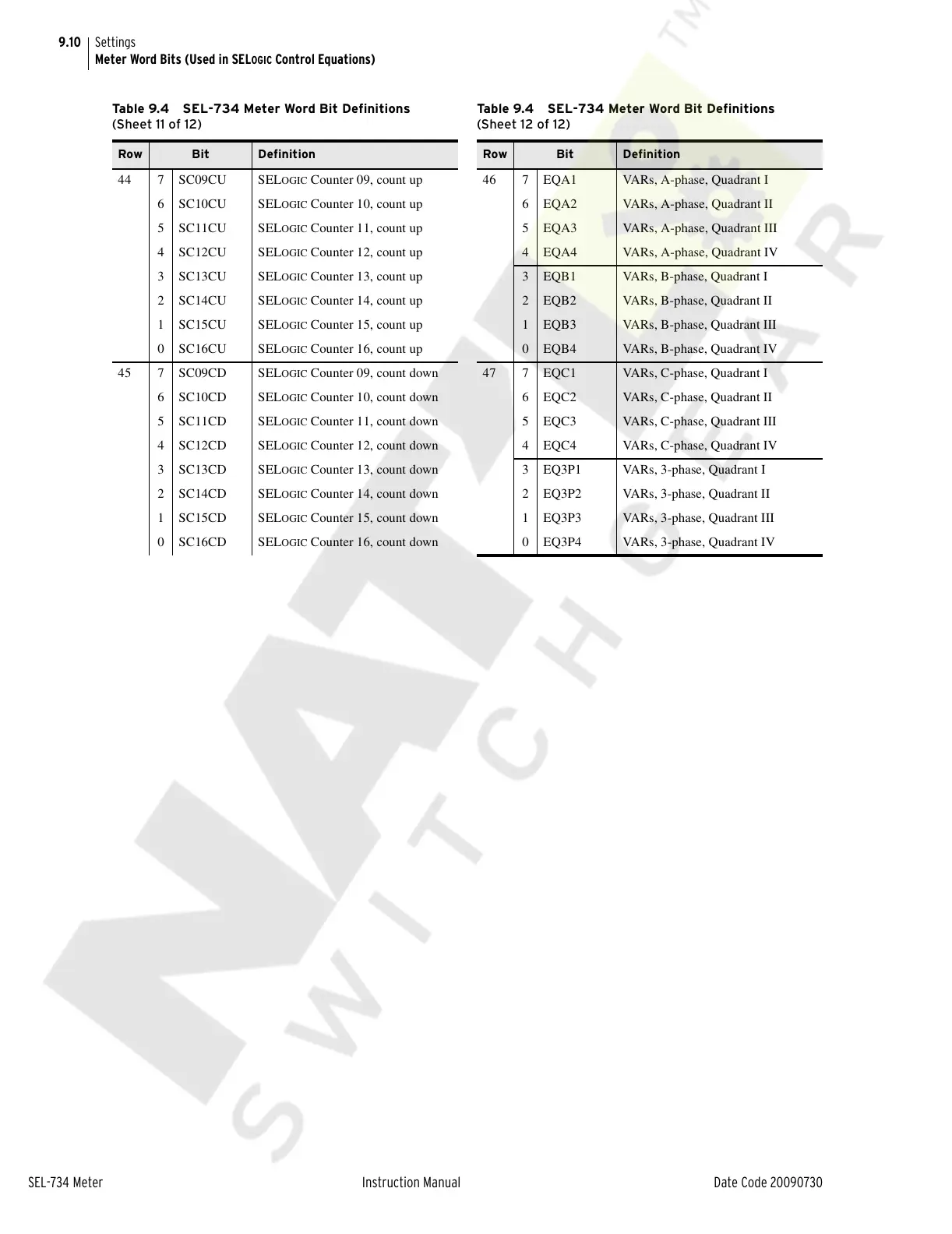

Table 9.4 SEL-734 Meter Word Bit Definitions
(Sheet 11 of 12)
Row Bit Definition
46 7 EQA1 VARs, A-phase, Quadrant I
6 EQA2 VARs, A-phase, Quadrant II
5 EQA3 VARs, A-phase, Quadrant III
4 EQA4 VARs, A-phase, Quadrant IV
3 EQB1 VARs, B-phase, Quadrant I
2 EQB2 VARs, B-phase, Quadrant II
1 EQB3 VARs, B-phase, Quadrant III
0 EQB4 VARs, B-phase, Quadrant IV
47 7 EQC1 VARs, C-phase, Quadrant I
6 EQC2 VARs, C-phase, Quadrant II
5 EQC3 VARs, C-phase, Quadrant III
4 EQC4 VARs, C-phase, Quadrant IV
3 EQ3P1 VARs, 3-phase, Quadrant I
2 EQ3P2 VARs, 3-phase, Quadrant II
1 EQ3P3 VARs, 3-phase, Quadrant III
0 EQ3P4 VARs, 3-phase, Quadrant IV
Table 9.4 SEL-734 Meter Word Bit Definitions
(Sheet 12 of 12)
Row Bit Definition
