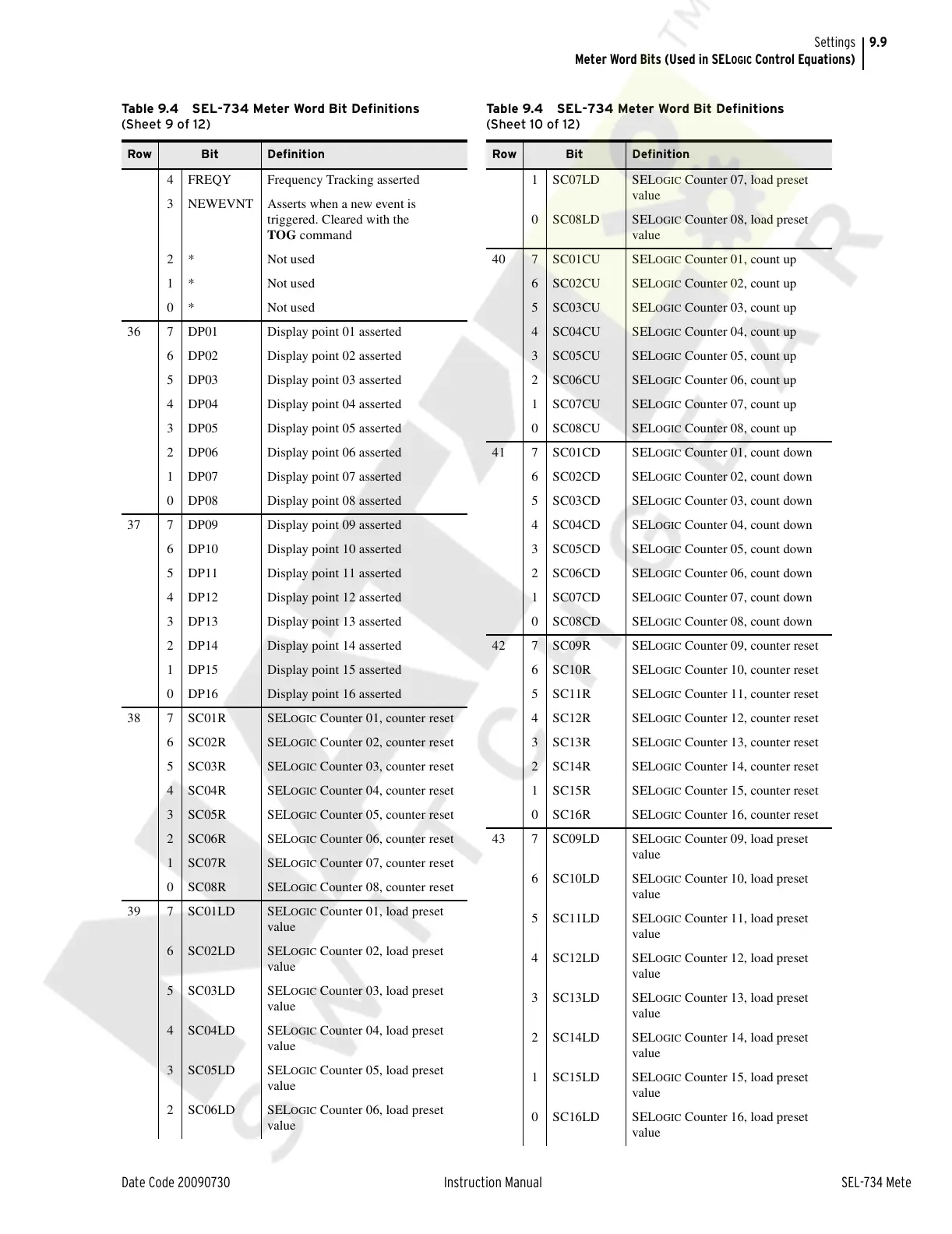

Schweitzer Engineering Laboratories SEL-734 - Page 155

9.9
Date Code 20090730 Instruction Manual SEL-734 Meter
Settings
Meter Word Bits (Used in SEL
OGIC Control Equations)
4 FREQY Frequency Tracking asserted
3 NEWEVNT Asserts when a new event is
triggered. Cleared with the
TOG command
2* Not used
1* Not used
0* Not used
36 7 DP01 Display point 01 asserted
6 DP02 Display point 02 asserted
5 DP03 Display point 03 asserted
4 DP04 Display point 04 asserted
3 DP05 Display point 05 asserted
2 DP06 Display point 06 asserted
1 DP07 Display point 07 asserted
0 DP08 Display point 08 asserted
37 7 DP09 Display point 09 asserted
6 DP10 Display point 10 asserted
5 DP11 Display point 11 asserted
4 DP12 Display point 12 asserted
3 DP13 Display point 13 asserted
2 DP14 Display point 14 asserted
1 DP15 Display point 15 asserted
0 DP16 Display point 16 asserted
38 7 SC01R SEL
OGIC Counter 01, counter reset
6SC02R SEL
OGIC Counter 02, counter reset
5SC03R SEL
OGIC Counter 03, counter reset
4SC04R SEL
OGIC Counter 04, counter reset
3SC05R SEL
OGIC Counter 05, counter reset
2SC06R SEL
OGIC Counter 06, counter reset
1SC07R SEL
OGIC Counter 07, counter reset
0SC08R SEL
OGIC Counter 08, counter reset
39 7 SC01LD SEL
OGIC Counter 01, load preset
value
6SC02LD SEL
OGIC Counter 02, load preset
value
5SC03LD SEL
OGIC Counter 03, load preset
value
4SC04LD SEL
OGIC Counter 04, load preset
value
3SC05LD SEL
OGIC Counter 05, load preset
value
2SC06LD SEL
OGIC Counter 06, load preset
value
Table 9.4 SEL-734 Meter Word Bit Definitions
(Sheet 9 of 12)
Row Bit Definition
1SC07LD SELOGIC Counter 07, load preset
value
0SC08LD SEL
OGIC Counter 08, load preset
value
40 7 SC01CU SEL
OGIC Counter 01, count up
6SC02CU SEL
OGIC Counter 02, count up
5SC03CU SEL
OGIC Counter 03, count up
4SC04CU SEL
OGIC Counter 04, count up
3SC05CU SEL
OGIC Counter 05, count up
2SC06CU SEL
OGIC Counter 06, count up
1SC07CU SEL
OGIC Counter 07, count up
0SC08CU SEL
OGIC Counter 08, count up
41 7 SC01CD SEL
OGIC Counter 01, count down
6SC02CD SEL
OGIC Counter 02, count down
5SC03CD SEL
OGIC Counter 03, count down
4SC04CD SEL
OGIC Counter 04, count down
3SC05CD SEL
OGIC Counter 05, count down
2SC06CD SEL
OGIC Counter 06, count down
1SC07CD SEL
OGIC Counter 07, count down
0SC08CD SEL
OGIC Counter 08, count down
42 7 SC09R SEL
OGIC Counter 09, counter reset
6SC10R SEL
OGIC Counter 10, counter reset
5SC11R SEL
OGIC Counter 11, counter reset
4SC12R SEL
OGIC Counter 12, counter reset
3SC13R SEL
OGIC Counter 13, counter reset
2SC14R SEL
OGIC Counter 14, counter reset
1SC15R SEL
OGIC Counter 15, counter reset
0SC16R SEL
OGIC Counter 16, counter reset
43 7 SC09LD SEL
OGIC Counter 09, load preset
value
6SC10LD SEL
OGIC Counter 10, load preset
value
5SC11LD SEL
OGIC Counter 11, load preset
value
4SC12LD SEL
OGIC Counter 12, load preset
value
3SC13LD SEL
OGIC Counter 13, load preset
value
2SC14LD SEL
OGIC Counter 14, load preset
value
1SC15LD SEL
OGIC Counter 15, load preset
value
0SC16LD SEL
OGIC Counter 16, load preset
value
Table 9.4 SEL-734 Meter Word Bit Definitions
(Sheet 10 of 12)
Row Bit Definition
