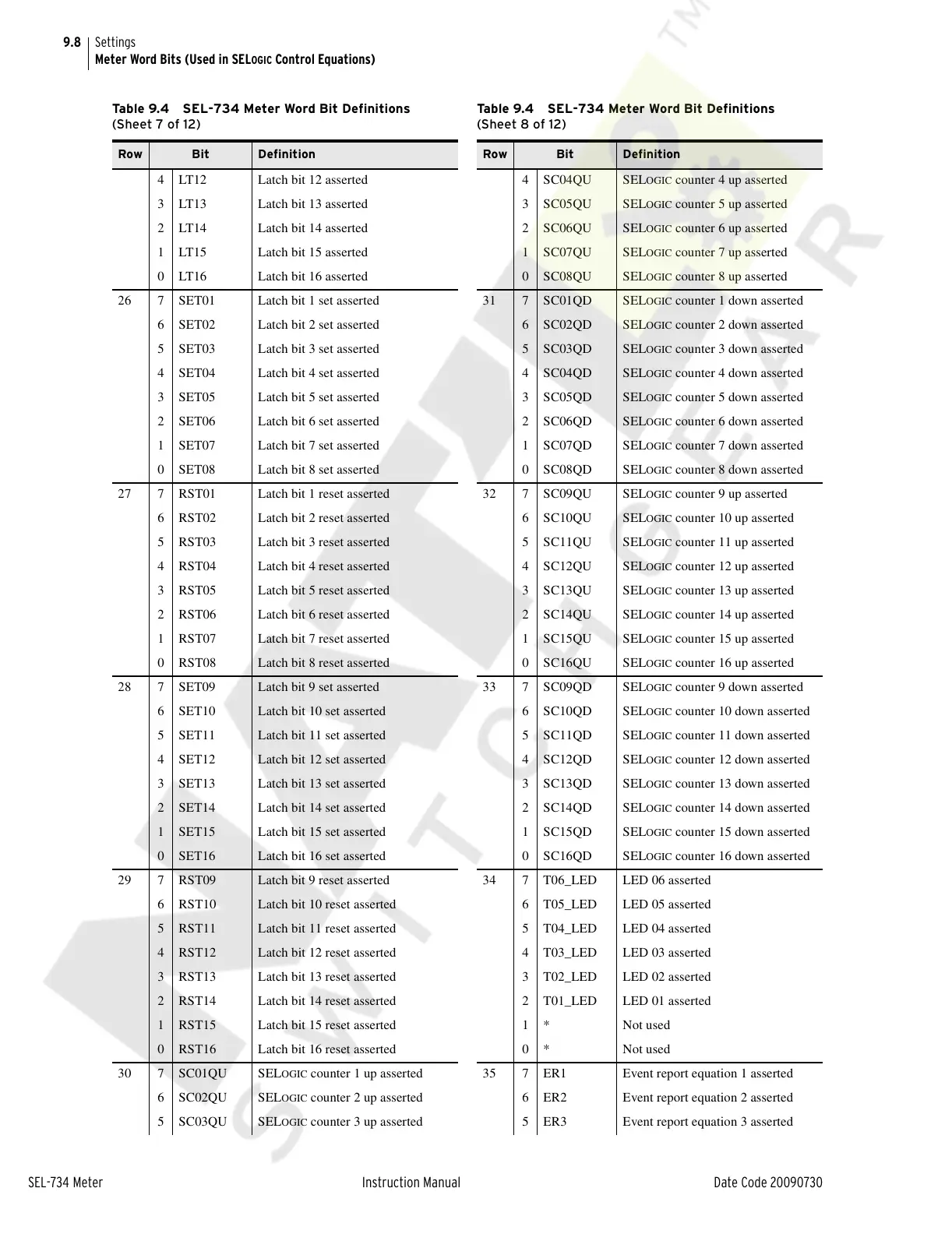

SEL-734 Meter Instruction Manual Date Code 20090730
Settings
Meter Word Bits (Used in SEL
OGIC Control Equations)
4 LT12 Latch bit 12 asserted
3 LT13 Latch bit 13 asserted
2 LT14 Latch bit 14 asserted
1 LT15 Latch bit 15 asserted
0 LT16 Latch bit 16 asserted
26 7 SET01 Latch bit 1 set asserted
6 SET02 Latch bit 2 set asserted
5 SET03 Latch bit 3 set asserted
4 SET04 Latch bit 4 set asserted
3 SET05 Latch bit 5 set asserted
2 SET06 Latch bit 6 set asserted
1 SET07 Latch bit 7 set asserted
0 SET08 Latch bit 8 set asserted
27 7 RST01 Latch bit 1 reset asserted
6 RST02 Latch bit 2 reset asserted
5 RST03 Latch bit 3 reset asserted
4 RST04 Latch bit 4 reset asserted
3 RST05 Latch bit 5 reset asserted
2 RST06 Latch bit 6 reset asserted
1 RST07 Latch bit 7 reset asserted
0 RST08 Latch bit 8 reset asserted
28 7 SET09 Latch bit 9 set asserted
6 SET10 Latch bit 10 set asserted
5 SET11 Latch bit 11 set asserted
4 SET12 Latch bit 12 set asserted
3 SET13 Latch bit 13 set asserted
2 SET14 Latch bit 14 set asserted
1 SET15 Latch bit 15 set asserted
0 SET16 Latch bit 16 set asserted
29 7 RST09 Latch bit 9 reset asserted
6 RST10 Latch bit 10 reset asserted
5 RST11 Latch bit 11 reset asserted
4 RST12 Latch bit 12 reset asserted
3 RST13 Latch bit 13 reset asserted
2 RST14 Latch bit 14 reset asserted
1 RST15 Latch bit 15 reset asserted
0 RST16 Latch bit 16 reset asserted
30 7 SC01QU SEL
OGIC counter 1 up asserted
6 SC02QU SEL
OGIC counter 2 up asserted
5 SC03QU SEL
OGIC counter 3 up asserted
Table 9.4 SEL-734 Meter Word Bit Definitions
(Sheet 7 of 12)
Row Bit Definition
4SC04QU SELOGIC counter 4 up asserted
3SC05QU SEL
OGIC counter 5 up asserted
2SC06QU SEL
OGIC counter 6 up asserted
1SC07QU SEL
OGIC counter 7 up asserted
0SC08QU SEL
OGIC counter 8 up asserted
31 7 SC01QD SEL
OGIC counter 1 down asserted
6SC02QD SEL
OGIC counter 2 down asserted
5SC03QD SEL
OGIC counter 3 down asserted
4SC04QD SEL
OGIC counter 4 down asserted
3SC05QD SEL
OGIC counter 5 down asserted
2SC06QD SEL
OGIC counter 6 down asserted
1SC07QD SEL
OGIC counter 7 down asserted
0SC08QD SEL
OGIC counter 8 down asserted
32 7 SC09QU SEL
OGIC counter 9 up asserted
6SC10QU SEL
OGIC counter 10 up asserted
5SC11QU SEL
OGIC counter 11 up asserted
4SC12QU SEL
OGIC counter 12 up asserted
3SC13QU SEL
OGIC counter 13 up asserted
2SC14QU SEL
OGIC counter 14 up asserted
1SC15QU SEL
OGIC counter 15 up asserted
0SC16QU SEL
OGIC counter 16 up asserted
33 7 SC09QD SEL
OGIC counter 9 down asserted
6SC10QD SEL
OGIC counter 10 down asserted
5SC11QD SEL
OGIC counter 11 down asserted
4SC12QD SEL
OGIC counter 12 down asserted
3SC13QD SEL
OGIC counter 13 down asserted
2SC14QD SEL
OGIC counter 14 down asserted
1SC15QD SEL
OGIC counter 15 down asserted
0SC16QD SEL
OGIC counter 16 down asserted
34 7 T06_LED LED 06 asserted
6 T05_LED LED 05 asserted
5 T04_LED LED 04 asserted
4 T03_LED LED 03 asserted
3 T02_LED LED 02 asserted
2 T01_LED LED 01 asserted
1* Not used
0* Not used
35 7 ER1 Event report equation 1 asserted
6 ER2 Event report equation 2 asserted
5 ER3 Event report equation 3 asserted
Table 9.4 SEL-734 Meter Word Bit Definitions
(Sheet 8 of 12)
Row Bit Definition
