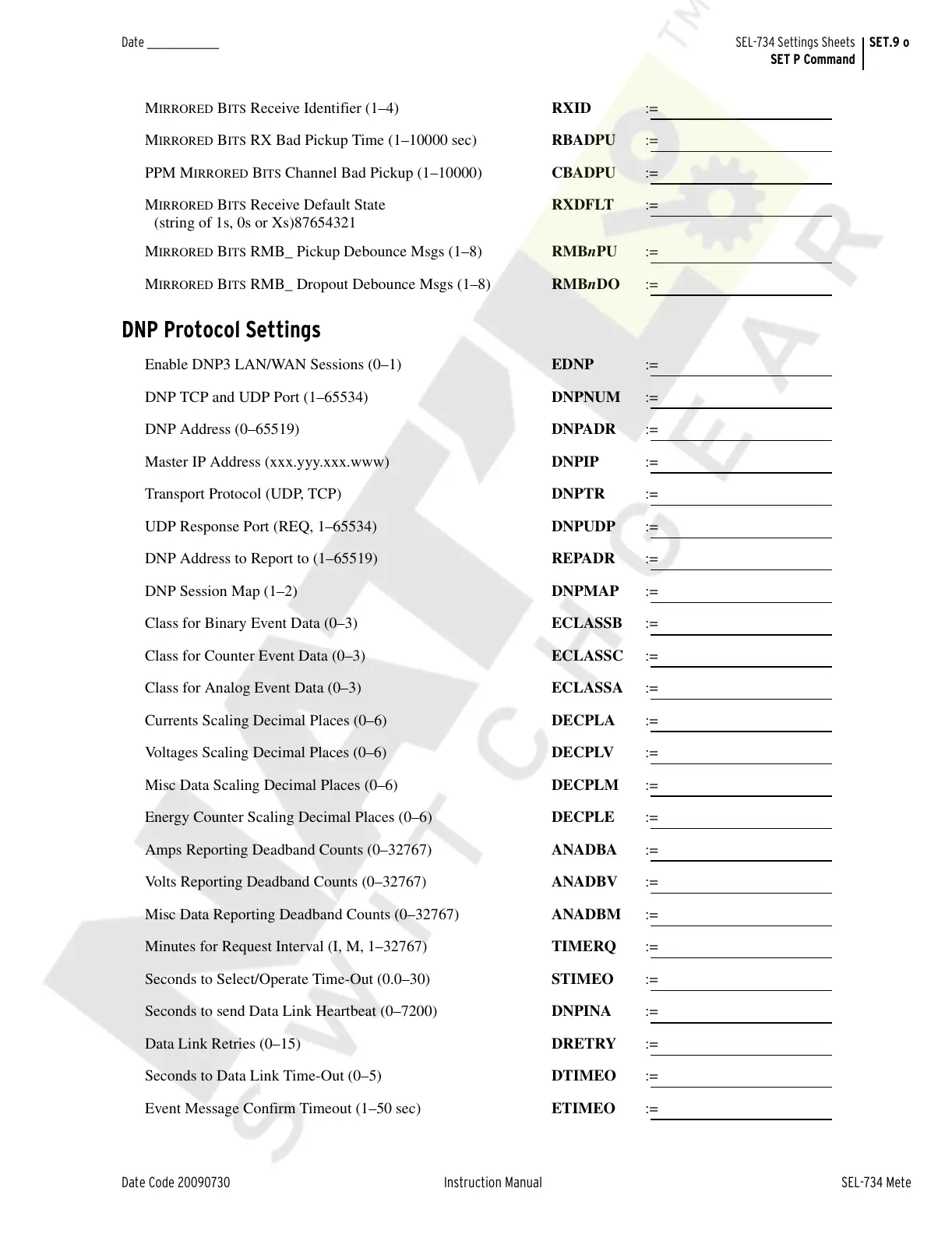

Date Code 20090730 Instruction Manual SEL-734 Meter
SET.9 of 12SEL-734 Settings Sheets
SET P Command
Date _______________
MIRRORED BITS Receive Identifier (1–4) RXID :=
M
IRRORED BITS RX Bad Pickup Time (1–10000 sec) RBADPU :=
PPM M
IRRORED BITS Channel Bad Pickup (1–10000) CBADPU :=
M
IRRORED BITS Receive Default State
(string of 1s, 0s or Xs)87654321
RXDFLT :=
M
IRRORED BITS RMB_ Pickup Debounce Msgs (1–8) RMBnPU :=
M
IRRORED BITS RMB_ Dropout Debounce Msgs (1–8) RMBnDO :=
DNP Protocol Settings
Enable DNP3 LAN/WAN Sessions (0–1) EDNP :=
DNP TCP and UDP Port (1–65534)
DNPNUM :=
DNP Address (0–65519)
DNPADR :=
Master IP Address (xxx.yyy.xxx.www)
DNPIP :=
Transport Protocol (UDP, TCP)
DNPTR :=
UDP Response Port (REQ, 1–65534)
DNPUDP :=
DNP Address to Report to (1–65519)
REPADR :=
DNP Session Map (1–2)
DNPMAP :=
Class for Binary Event Data (0–3)
ECLASSB :=
Class for Counter Event Data (0–3)
ECLASSC :=
Class for Analog Event Data (0–3)
ECLASSA :=
Currents Scaling Decimal Places (0–6)
DECPLA :=
Voltages Scaling Decimal Places (0–6)
DECPLV :=
Misc Data Scaling Decimal Places (0–6)
DECPLM :=
Energy Counter Scaling Decimal Places (0–6)
DECPLE :=
Amps Reporting Deadband Counts (0–32767)
ANADBA :=
Volts Reporting Deadband Counts (0–32767)
ANADBV :=
Misc Data Reporting Deadband Counts (0–32767)
ANADBM :=
Minutes for Request Interval (I, M, 1–32767)
TIMERQ :=
Seconds to Select/Operate Time-Out (0.0–30)
STIMEO :=
Seconds to send Data Link Heartbeat (0–7200)
DNPINA :=
Data Link Retries (0–15)
DRETRY :=
Seconds to Data Link Time-Out (0–5)
DTIMEO :=
Event Message Confirm Timeout (1–50 sec)
ETIMEO :=
