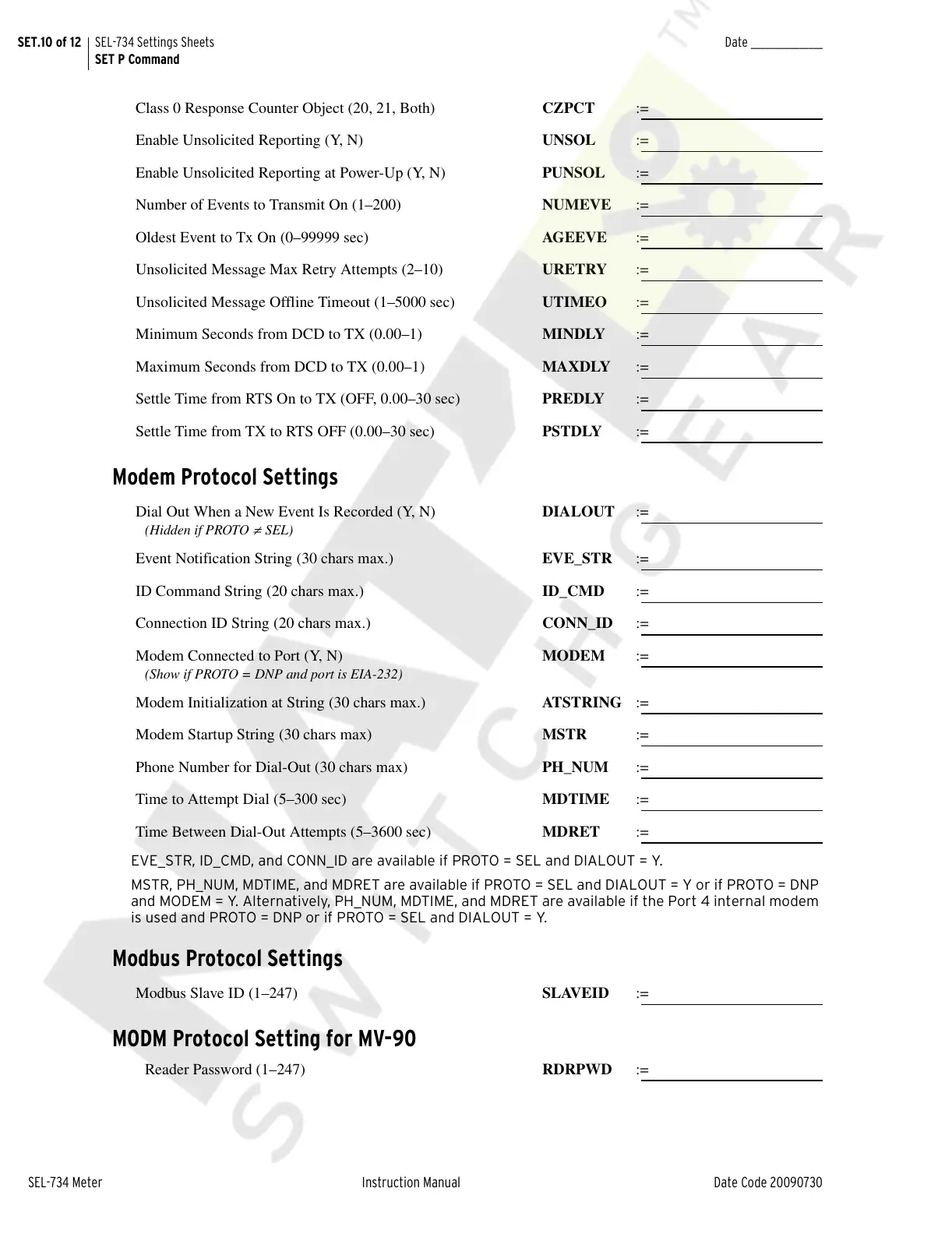

SET.10 of 12 SEL-734 Settings Sheets
SET P Command
SEL-734 Meter Instruction Manual Date Code 20090730
Date _______________
Class 0 Response Counter Object (20, 21, Both) CZPCT :=
Enable Unsolicited Reporting (Y, N)
UNSOL :=
Enable Unsolicited Reporting at Power-Up (Y, N)
PUNSOL :=
Number of Events to Transmit On (1–200)
NUMEVE :=
Oldest Event to Tx On (0–99999 sec)
AGEEVE :=
Unsolicited Message Max Retry Attempts (2–10)
URETRY :=
Unsolicited Message Offline Timeout (1–5000 sec)
UTIMEO :=
Minimum Seconds from DCD to TX (0.00–1)
MINDLY :=
Maximum Seconds from DCD to TX (0.00–1)
MAXDLY :=
Settle Time from RTS On to TX (OFF, 0.00–30 sec)
PREDLY :=
Settle Time from TX to RTS OFF (0.00–30 sec)
PSTDLY :=
Modem Protocol Settings
Dial Out When a New Event Is Recorded (Y, N)
(Hidden if PROTO
≠
SEL)
DIALOUT :=
Event Notification String (30 chars max.)
EVE_STR :=
ID Command String (20 chars max.)
ID_CMD :=
Connection ID String (20 chars max.)
CONN_ID :=
Modem Connected to Port (Y, N)
(Show if PROTO = DNP and port is EIA-232)
MODEM :=
Modem Initialization at String (30 chars max.)
ATSTRING :=
Modem Startup String (30 chars max)
MSTR :=
Phone Number for Dial-Out (30 chars max)
PH_NUM :=
Time to Attempt Dial (5–300 sec) MDTIME :=
Time Between Dial-Out Attempts (5–3600 sec)
MDRET :=
EVE_STR, ID_CMD, and CONN_ID are available if PROTO = SEL and DIALOUT = Y.
MSTR, PH_NUM, MDTIME, and MDRET are available if PROTO = SEL and DIALOUT = Y or if PROTO = DNP
and MODEM = Y. Alternatively, PH_NUM, MDTIME, and MDRET are available if the Port 4 internal modem
is used and PROTO = DNP or if PROTO = SEL and DIALOUT = Y.
Modbus Protocol Settings
Modbus Slave ID (1–247) SLAVEID :=
MODM Protocol Setting for MV-90
Reader Password (1–247) RDRPWD :=
