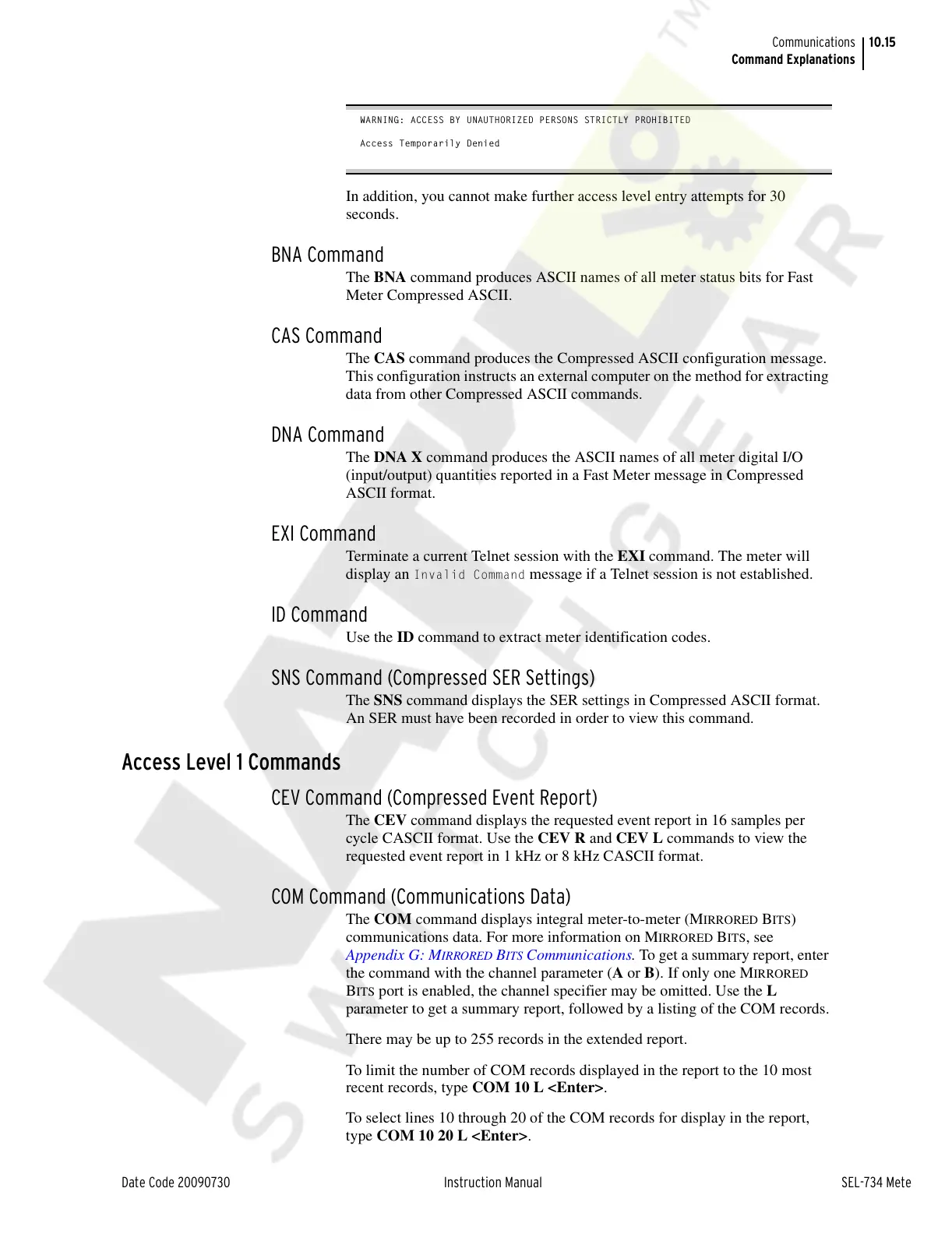

10.15
Date Code 20090730 Instruction Manual SEL-734 Meter
Communications
Command Explanations
WARNING: ACCESS BY UNAUTHORIZED PERSONS STRICTLY PROHIBITED
Access Temporarily Denied
In addition, you cannot make further access level entry attempts for 30
seconds.
BNA Command
The BNA command produces ASCII names of all meter status bits for Fast
Meter Compressed ASCII.
CAS Command
The CAS command produces the Compressed ASCII configuration message.
This configuration instructs an external computer on the method for extracting
data from other Compressed ASCII commands.
DNA Command
The DNA X command produces the ASCII names of all meter digital I/O
(input/output) quantities reported in a Fast Meter message in Compressed
ASCII format.
EXI Command
Terminate a current Telnet session with the EXI command. The meter will
display an
Invalid Command message if a Telnet session is not established.
ID Command
Use the ID command to extract meter identification codes.
SNS Command (Compressed SER Settings)
The SNS command displays the SER settings in Compressed ASCII format.
An SER must have been recorded in order to view this command.
Access Level 1 Commands
CEV Command (Compressed Event Report)
The CEV command displays the requested event report in 16 samples per
cycle CASCII format. Use the CEV R and CEV L commands to view the
requested event report in 1 kHz or 8 kHz CASCII format.
COM Command (Communications Data)
The COM command displays integral meter-to-meter (MIRRORED BITS)
communications data. For more information on M
IRRORED BITS, see
Appendix G: M
IRRORED BITS Communications. To get a summary report, enter
the command with the channel parameter (A or B). If only one M
IRRORED
B
ITS port is enabled, the channel specifier may be omitted. Use the L
parameter to get a summary report, followed by a listing of the COM records.
There may be up to 255 records in the extended report.
To limit the number of COM records displayed in the report to the 10 most
recent records, type COM 10 L <Enter>.
To select lines 10 through 20 of the COM records for display in the report,
type COM 10 20 L <Enter>.
