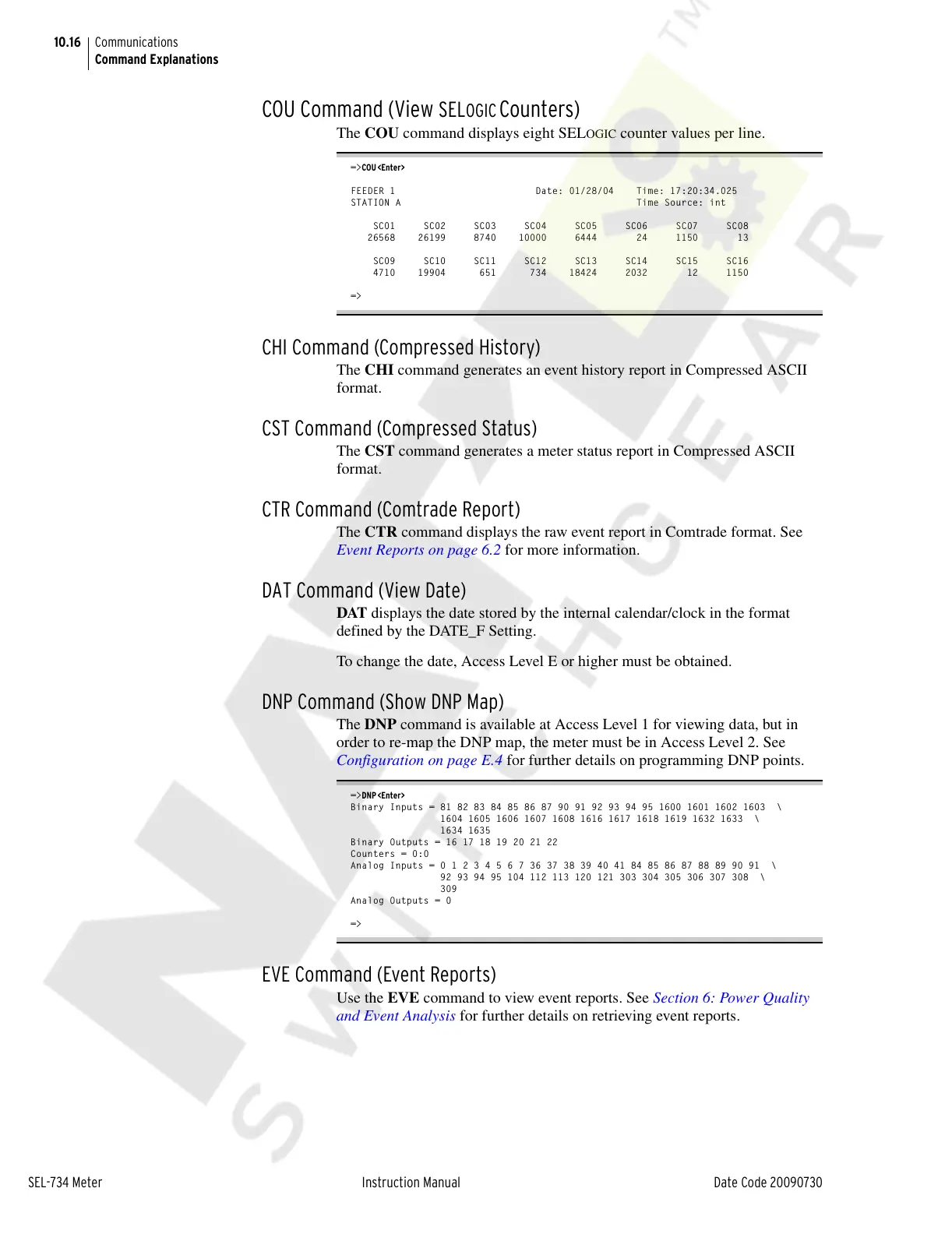

10.16
SEL-734 Meter Instruction Manual Date Code 20090730
Communications
Command Explanations
COU Command (View SELOGIC Counters)
The COU command displays eight SELOGIC counter values per line.
=>COU <Enter>
FEEDER 1 Date: 01/28/04 Time: 17:20:34.025
STATION A Time Source: int
SC01 SC02 SC03 SC04 SC05 SC06 SC07 SC08
26568 26199 8740 10000 6444 24 1150 13
SC09 SC10 SC11 SC12 SC13 SC14 SC15 SC16
4710 19904 651 734 18424 2032 12 1150
=>
CHI Command (Compressed History)
The CHI command generates an event history report in Compressed ASCII
format.
CST Command (Compressed Status)
The CST command generates a meter status report in Compressed ASCII
format.
CTR Command (Comtrade Report)
The CTR command displays the raw event report in Comtrade format. See
Event Reports on page 6.2 for more information.
DAT Command (View Date)
DAT displays the date stored by the internal calendar/clock in the format
defined by the DATE_F Setting.
To change the date, Access Level E or higher must be obtained.
DNP Command (Show DNP Map)
The DNP command is available at Access Level 1 for viewing data, but in
order to re-map the DNP map, the meter must be in Access Level 2. See
Configuration on page E.4 for further details on programming DNP points.
=>DNP <Enter>
Binary Inputs = 81 82 83 84 85 86 87 90 91 92 93 94 95 1600 1601 1602 1603 \
1604 1605 1606 1607 1608 1616 1617 1618 1619 1632 1633 \
1634 1635
Binary Outputs = 16 17 18 19 20 21 22
Counters = 0:0
Analog Inputs = 0 1 2 3 4 5 6 7 36 37 38 39 40 41 84 85 86 87 88 89 90 91 \
92 93 94 95 104 112 113 120 121 303 304 305 306 307 308 \
309
Analog Outputs = 0
=>
EVE Command (Event Reports)
Use the EVE command to view event reports. See Section 6: Power Quality
and Event Analysis for further details on retrieving event reports.
