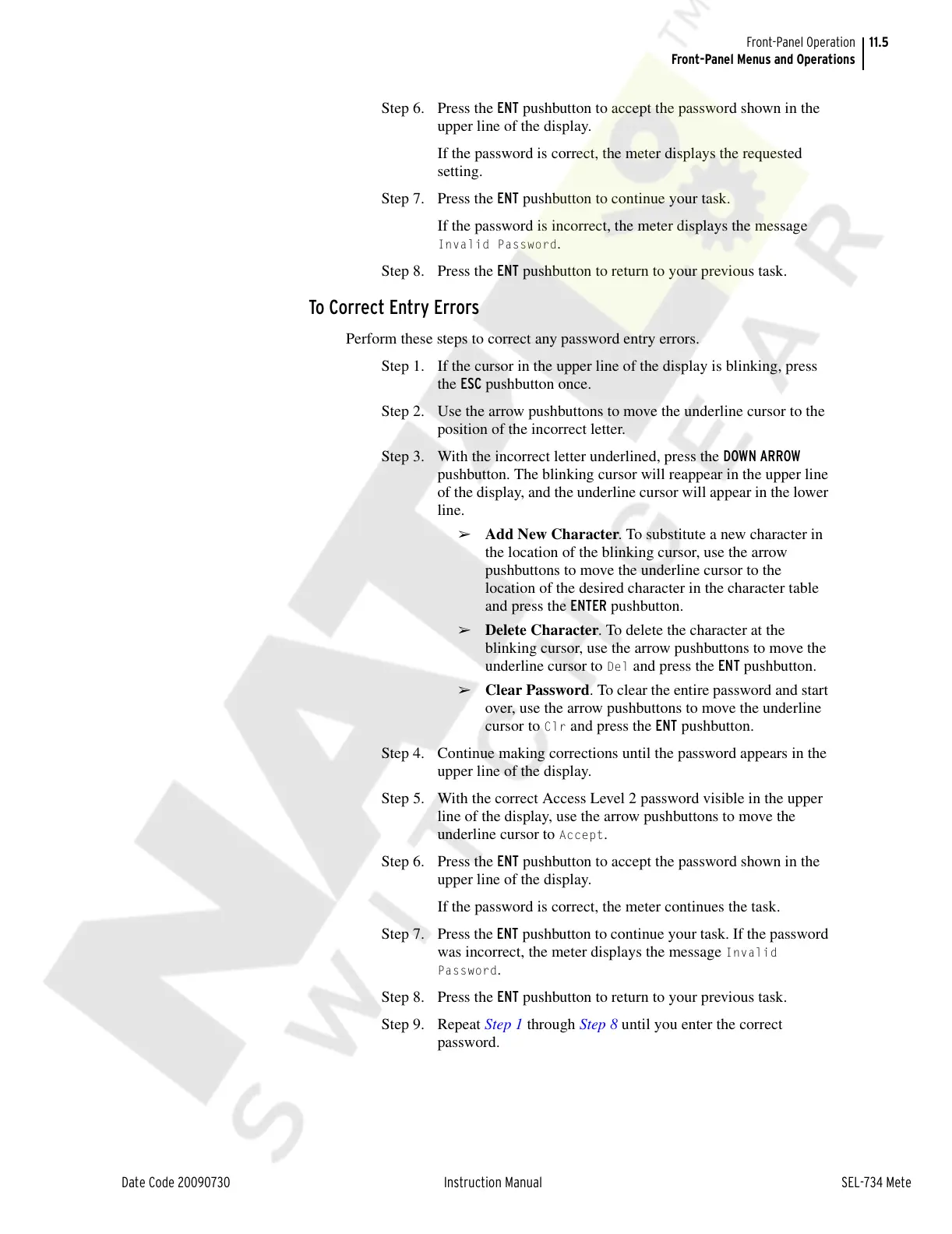

11.5
Date Code 20090730 Instruction Manual SEL-734 Meter
Front-Panel Operation
Front-Panel Menus and Operations
Step 6. Press the ENT pushbutton to accept the password shown in the
upper line of the display.
If the password is correct, the meter displays the requested
setting.
Step 7. Press the ENT pushbutton to continue your task.
If the password is incorrect, the meter displays the message
Invalid Password
.
Step 8. Press the ENT pushbutton to return to your previous task.
To Correct Entry Errors
Perform these steps to correct any password entry errors.
Step 1. If the cursor in the upper line of the display is blinking, press
the ESC pushbutton once.
Step 2. Use the arrow pushbuttons to move the underline cursor to the
position of the incorrect letter.
Step 3. With the incorrect letter underlined, press the DOWN ARROW
pushbutton. The blinking cursor will reappear in the upper line
of the display, and the underline cursor will appear in the lower
line.
➢ Add New Character. To substitute a new character in
the location of the blinking cursor, use the arrow
pushbuttons to move the underline cursor to the
location of the desired character in the character table
and press the ENTER pushbutton.
➢ Delete Character. To delete the character at the
blinking cursor, use the arrow pushbuttons to move the
underline cursor to
Del and press the ENT pushbutton.
➢ Clear Password. To clear the entire password and start
over, use the arrow pushbuttons to move the underline
cursor to
Clr and press the ENT pushbutton.
Step 4. Continue making corrections until the password appears in the
upper line of the display.
Step 5. With the correct Access Level 2 password visible in the upper
line of the display, use the arrow pushbuttons to move the
underline cursor to
Accept.
Step 6. Press the ENT pushbutton to accept the password shown in the
upper line of the display.
If the password is correct, the meter continues the task.
Step 7. Press the ENT pushbutton to continue your task. If the password
was incorrect, the meter displays the message
Invalid
Password
.
Step 8. Press the ENT pushbutton to return to your previous task.
Step 9. Repeat Step 1 through Step 8 until you enter the correct
password.
