E.6
SEL-734 Meter Instruction Manual Date Code 20090730
Distributed Network Protocol
Configuration
01,02 1617 Meter diagnostic failure
01,02 1618 Meter diagnostic warning
01,02 1619 An unread event is available.
01,02 1620 Settings change or meter restart
01,02 1621 LDP Data Ready
01,02 1622 VSSI Data Ready
01,02 1623 Reserved for future status point
01,02 1624–1631 Reserved
01,02 1632–1635 Power factor leading for A, B, C and 3-phase
01,02 1636–1643 Reserved
Binary Outputs
10,12 00–15 Remote bits RB01–RB16
10,12 16–18 OUT101–OUT103
10,12 19– 22 OUT401–OUT404
10,12 23 Reserved
10,12 24–31 Remote bit pairs RB01–RB16
10,12 32–40 Reserved
10,12 41 Read next event
10,12 42–67 Reserved
Counter Inputs
20,22 00–06 Reserved
20,22 07–22 SEL
OGIC Counters 1–16
20,22 23–24 Energy—A-phase Wh IN and OUT DECPLE
20,22 25–26 Energy—B-phase Wh IN and OUT DECPLE
20,22 27–28 Energy—C-phase Wh IN and OUT DECPLE
20,22 29–30 Energy—3-phase Wh IN and OUT DECPLE
20,22 31–32 Energy—A-phase VARh IN and OUT DECPLE
20,22 33–34 Energy—B-phase VARh IN and OUT DECPLE
20,22 35–36 Energy—C-phase VARh IN and OUT DECPLE
20,22 37–38 Energy—3-phase VARh IN and OUT DECPLE
20,22 2380 Energy—MVRHAI_LD DECPLE
20,22 2381 Energy—MVRHAI_LG DECPLE
20,22 2382 Energy—MVRHAO_LD DECPLE
20,22 2383 Energy—MVRHAO_LG DECPLE
20,22 2384 Energy—MVRHBI_LD DECPLE
20,22 2385 Energy—MVRHBI_LG DECPLE
20,22 2386 Energy—MVRHBO_LD DECPLE
20,22 2387 Energy—MVRHBO_LG DECPLE
20,22 2388 Energy—MVRHCI_LD DECPLE
20,22 2389 Energy—MVRHCI_LG DECPLE

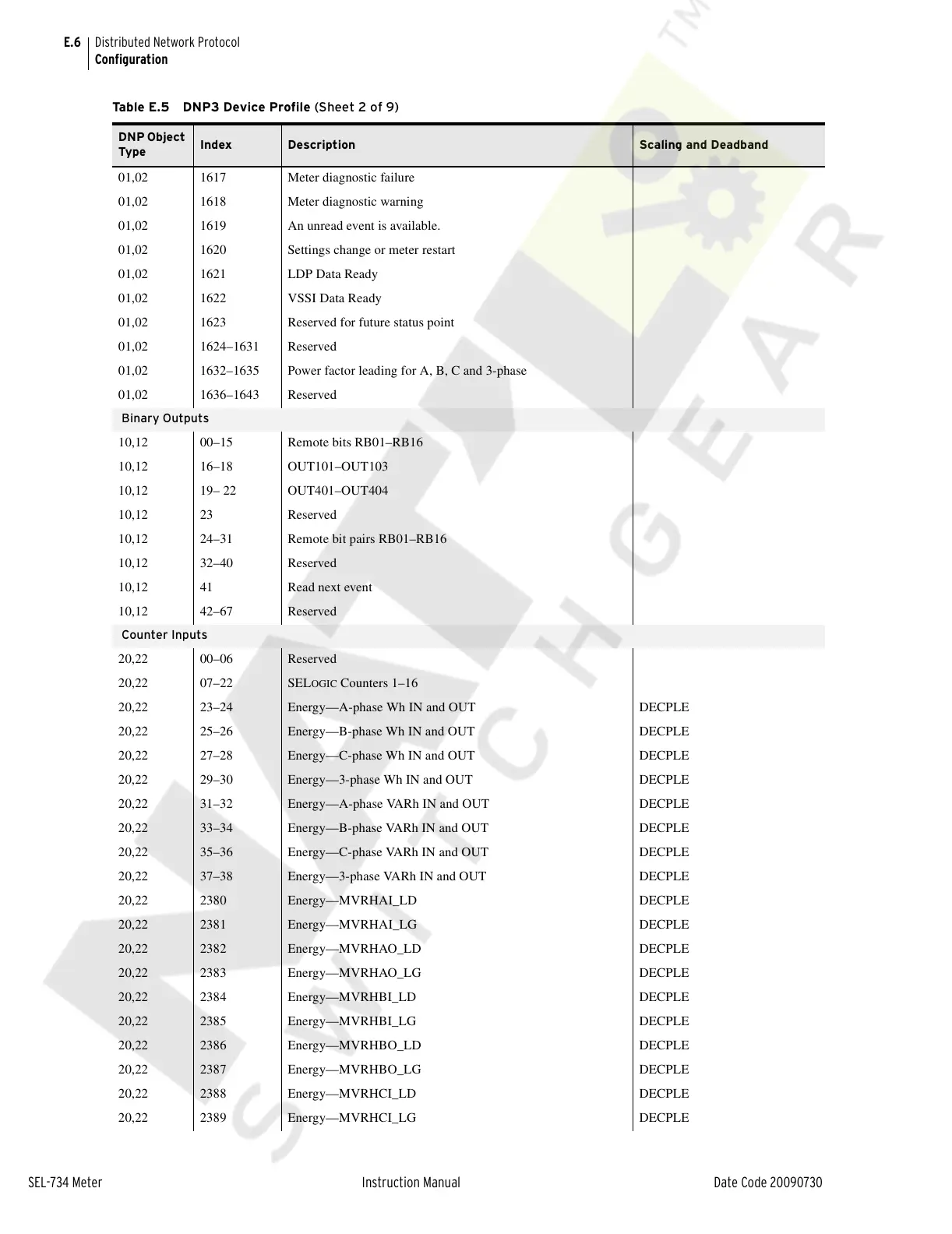

Table E.5 DNP3 Device Profile (Sheet 2 of 9)
DNP Object
Type
Index Description Scaling and Deadband
